Solved

search Symbol 2D in a drawing

  • December 21, 2021
  • 1 reply
  • 2375 views

Hi all,



I am in CREO 7.0.2.0.



I would like to make a macro in CREO, for searching all the symbols, annotation, dimensions, datum etc... create in the drawing.

I have an issue for searching symbols added in the 2D.

I have the same symbols create in the part with MBD and create in the drawing


How can i distinguish them with the search tools?

I would like to show only the symbol datum target create in the 2D.

Regards

Best answer by tbraxton

Try using the rules and build a query. This looks like it will filter all datum target symbols in the drawing. Note that you can save these queries to a file and reuse them, so you are not messing with the UI to set up the search each time.






1 reply

tbraxton
22-Sapphire II
tbraxton22-Sapphire II
22-Sapphire II
December 21, 2021

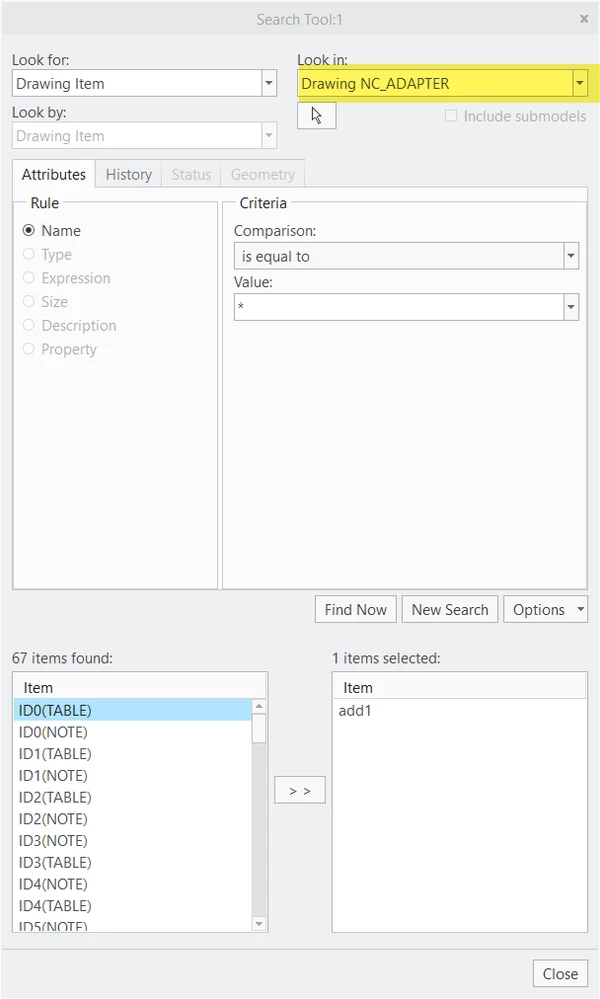

As a starting point you can limit the scope of the search to the drawing file. See the example search in the pic. You can build a query using names to find datum tags (name=dt*). You can in theory further filter these using rules.



A nested query is an option:

https://support.ptc.com/help/creo/creo_pma/usascii/#page/fundamentals%2Ffundamentals%2Ffund_six_sub%2FTo_Build_a_Nested_Query_in_the_Search_Tool.html



You should consider building queries separately for flexibility in automation. If you build multiple search queries they can be saved, and you could use a mapkeys to run them for automation.



If the items were created in the drawing, then this search should return it in the results.






    D
    Dom_BOUCHARDY12-AmethystAuthor
    12-Amethyst
    December 22, 2021

    Hi,

    Thanks for your answer.

    But, the search with the name critera dt* doens't work for a search on a datum target.

    I have several questions about the nested query:

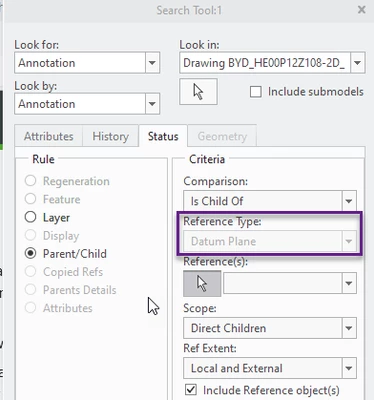

    1) In the status tab, i can only select datum_plane in reference for parent/child critera. And as the datum target are put ine the drawing, there is no ref plane.

    How can i select an another option, it was grayed out?




    2) the name of the symbol is DATUM_TARGET (it is a creo Symbol)

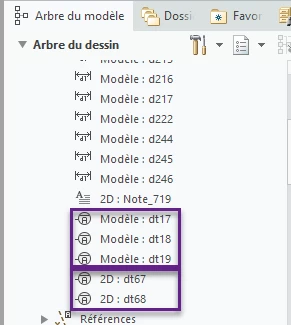

    Iif he is put in the 3D model, in the drawing tree it appear as follow


    And if put in the drawing, it appears as follows:


    How can i search it with the draft critera?



    Regards





    tbraxton
    22-Sapphire II
    tbraxton22-Sapphire II
    22-Sapphire II
    December 22, 2021

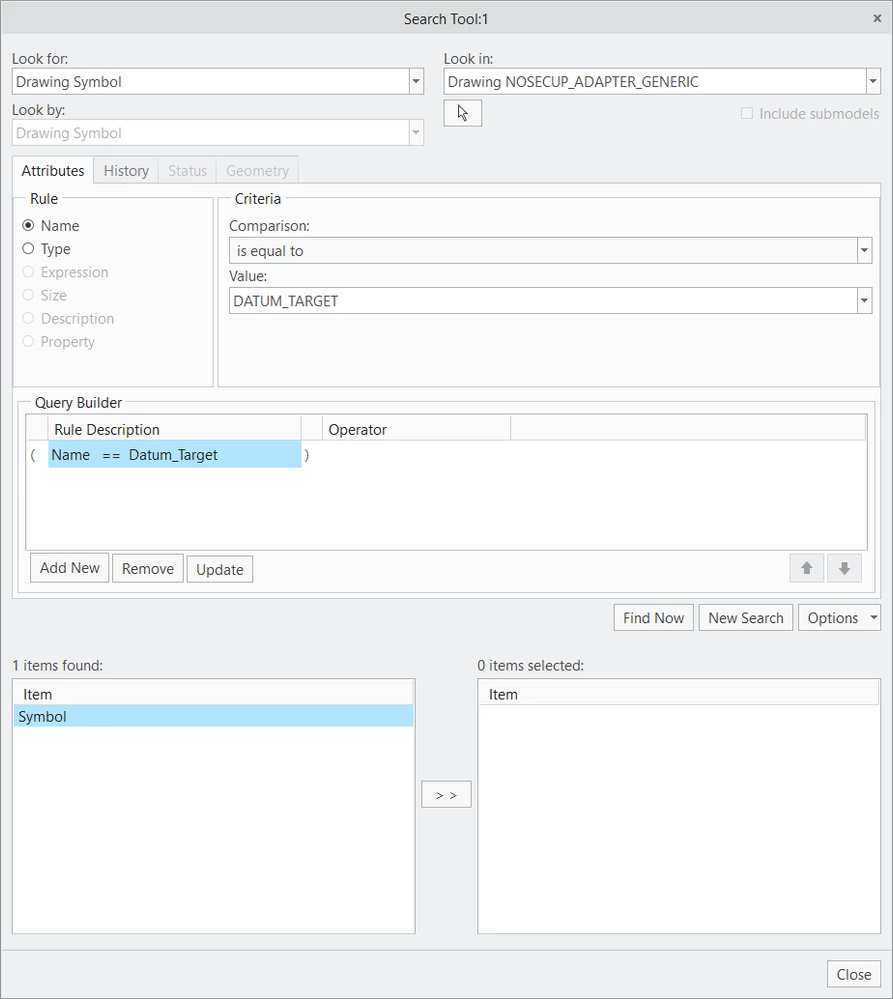

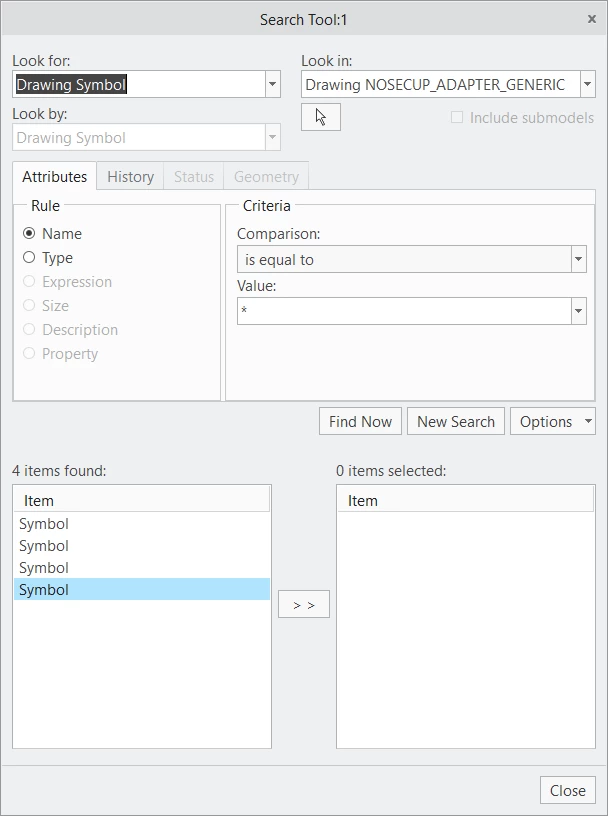

    The objects you are noting in the previous post are drawing symbols. This is the search criteria to find all symbols in a drawing.








    Unfortunately, the documentation on the search tool is lacking so you will need to solicit feedback here and contact PTC support to drill down into this. I am not familiar with all of the options within the search tool. Ideally PTC would document a matrix for every data type that is searchable and note the query construction to find them in the UI. I am pretty sure the developers have such a document but as you have probably discovered the help files are only an introduction without the detail required to understand the function thoroughly.
