Section view in a drawing for a bottle

3 replies
155 views
Translate All

Hey,

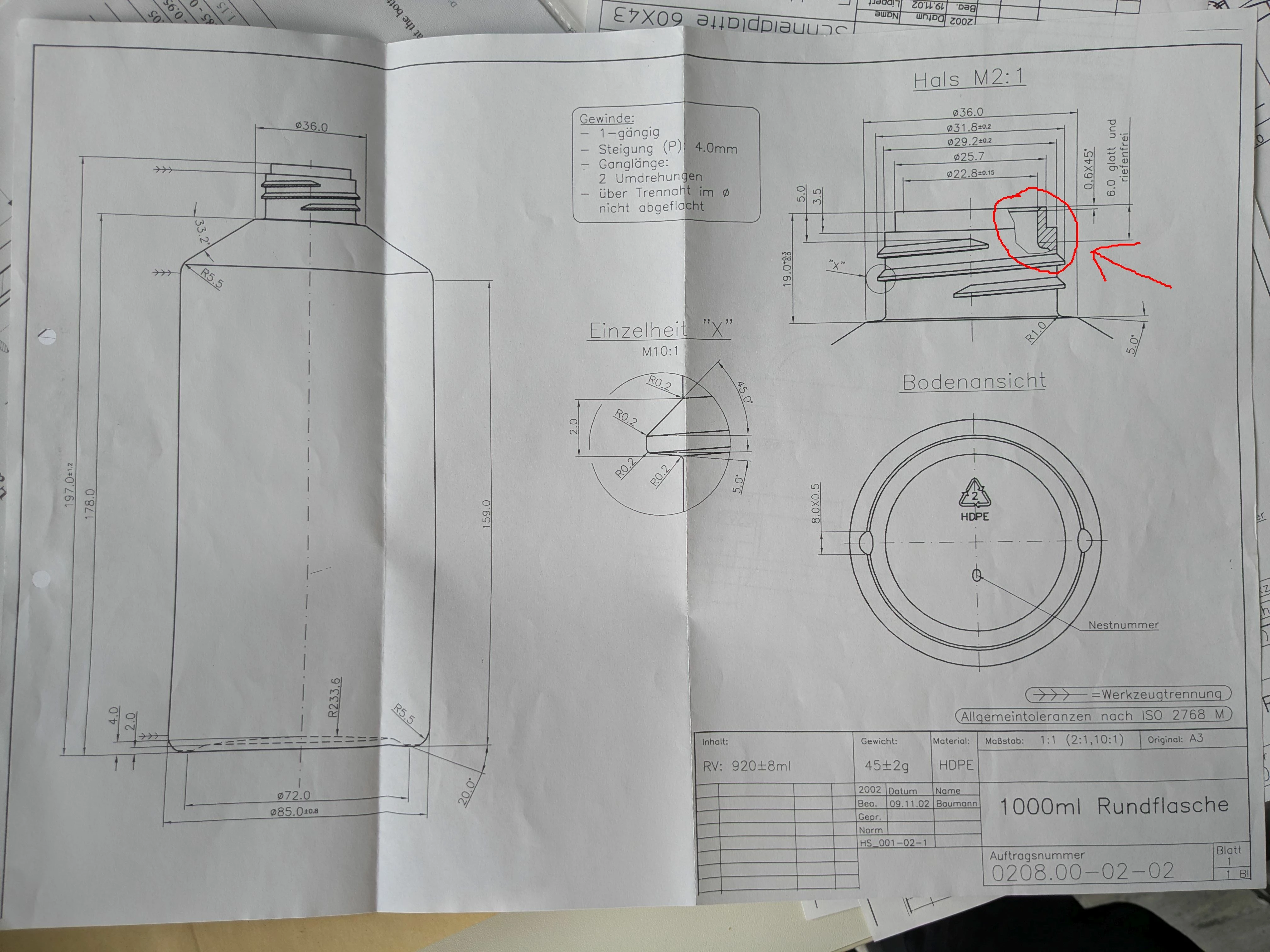

So I’m trying to create a section view as marked in this picture here

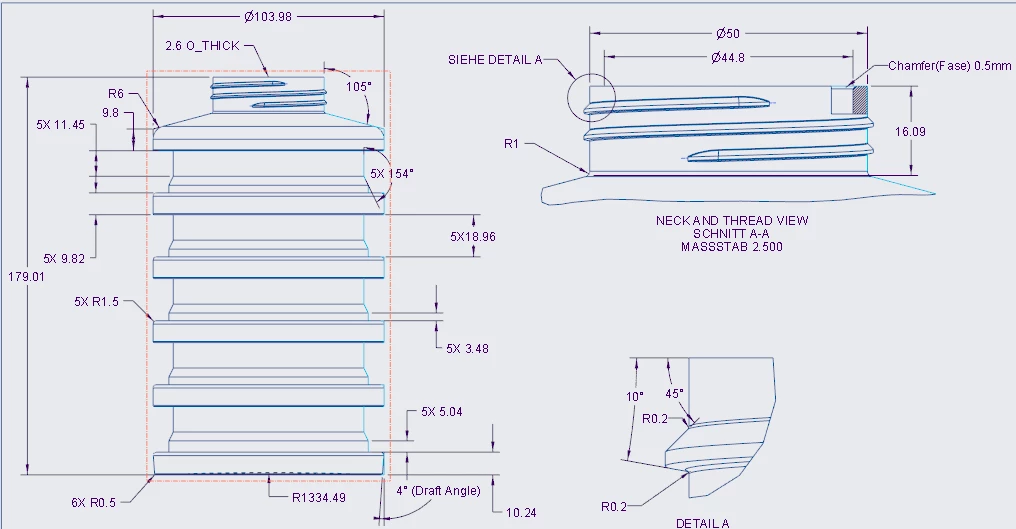

But I’m able to create only like a perpedicular linear section cut in the botttle neck region (Below picture is my drawing)

Please let me know how to create a section view show in the first drawing.

tbraxtonAnswer

22-Sapphire II

You need to create a local section to replicate the drawing you show. You will not have explicit control over the section cut lines as it uses a spline in the definition of the local cutaway so you will have to play with the spline geometry until it “works”.

Here is a tutorial on section creation including the local type. Local creation is @ 11:30.

https://www.youtube.com/watch?v=ZuU1TZuObvw

PTC section creation docs:

https://support.ptc.com/help/creo/creo_pma/r11.0/usascii/index.html#page/detail/About_Cross_Sectional_Views.html

tbraxton
