Section view of multibody part,

  • January 18, 2023
  • 5 replies
  • 2893 views

Hi Martin,



I'm using Multibody design for smaller welded  designs. I call it "little assembly".

It works very good in 3D modeling.

Now my problem:

When I create in drawing a section view, I only can see the cutted geomtry.

All bodies behind are not shown.

How can I resolve it?

CREO 7.0.5.0







Best answer by MartinHanak
@Rainer_Gahlow wrote:

please find attached a model + drawing of a example for my problem.

I definitely don't want to merge the bodies.
We want to be able to represent the individual bodies in the drawing. Also in a sectional view.

Hi,

according to https://www.ptc.com/en/support/article/cs357959 current Creo functionality is correct. Unfortunately this is how PTC implemented the multibody model x-section displayed in drawing view.

5 replies

M
MartinHanak24-Ruby III
24-Ruby III
January 18, 2023

Hi,

please publish a picture -OR- upload your model+drawing packed in zip file.

R
Rainer_Gahlow3-NewcomerAuthor
3-Newcomer
January 23, 2023

Hello Matin,

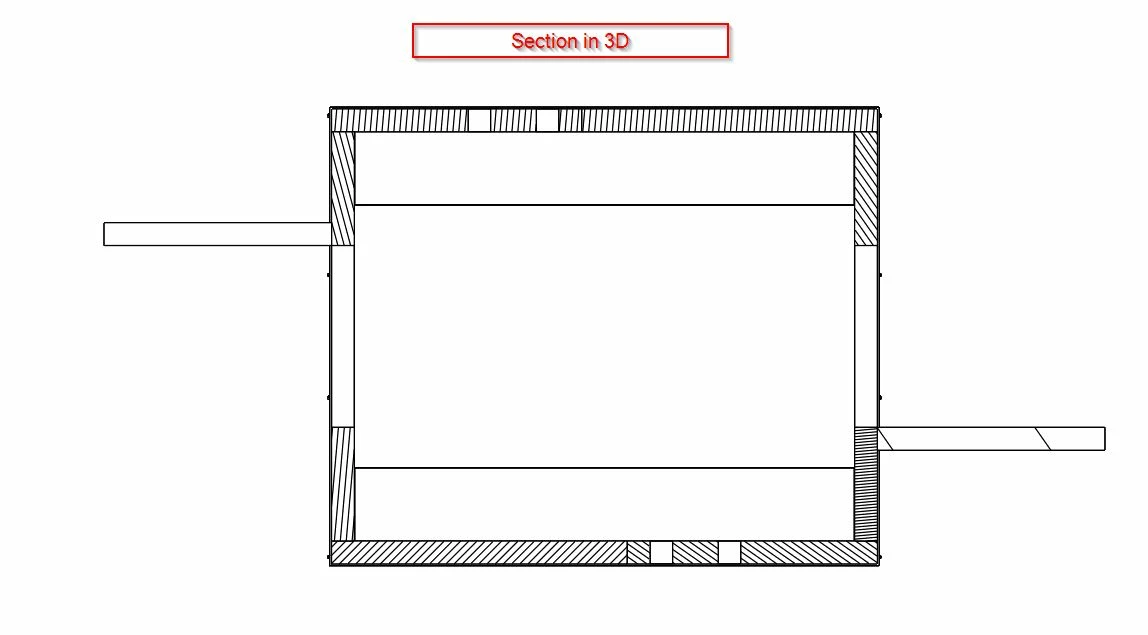

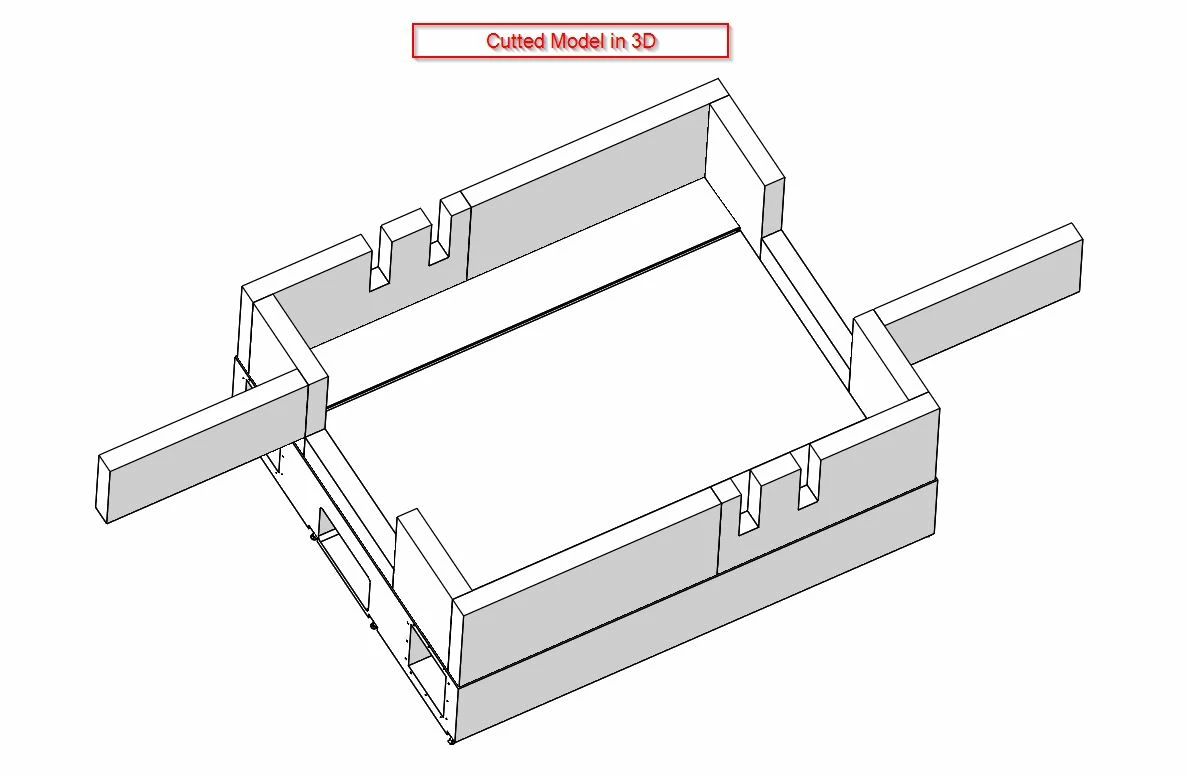

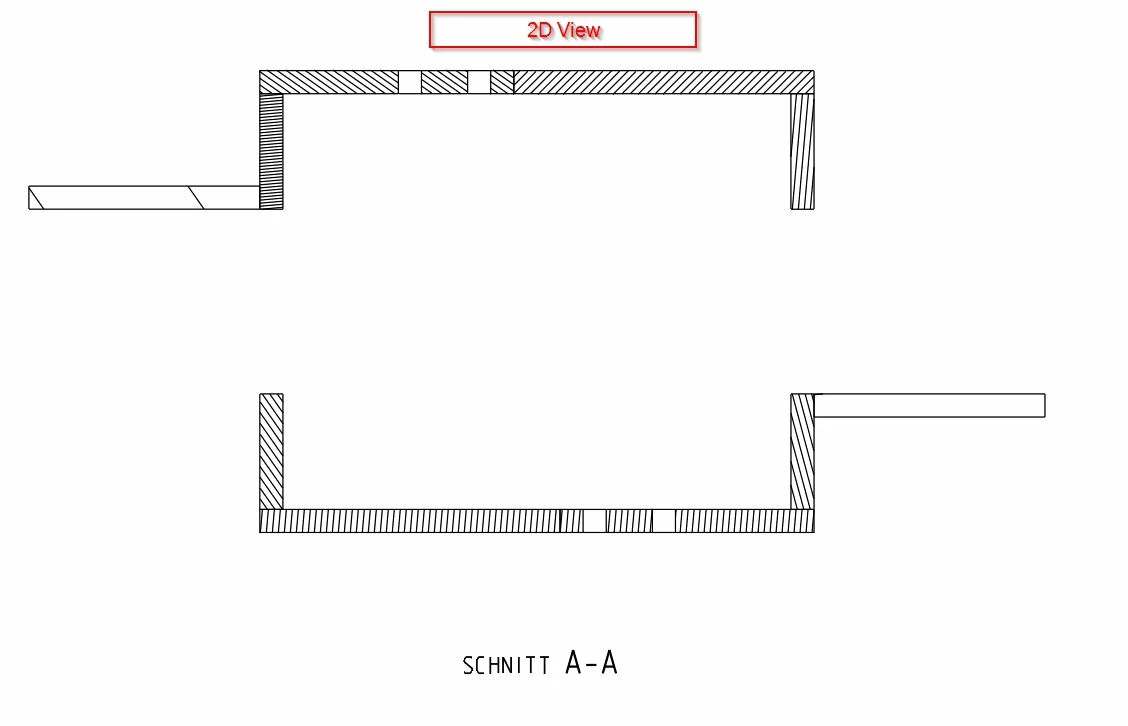

here are some pictures. In the 2D View there is nothing shown what lies behinf the section line.

This phenomenon occurs in all section views that contain multibodies.



Rainer Gahlow

M
MartinHanak24-Ruby III
24-Ruby III
January 23, 2023
@Rainer_Gahlow wrote:

Hello Matin,

here are some pictures. In the 2D View there is nothing shown what lies behinf the section line.

This phenomenon occurs in all section views that contain multibodies.



Rainer Gahlow

Hi,

please can you upload your model+drawing packed in zip file ? It is difficult to imagine how did you create bodies.
