Sectional view bearing problem

Hello everyone:

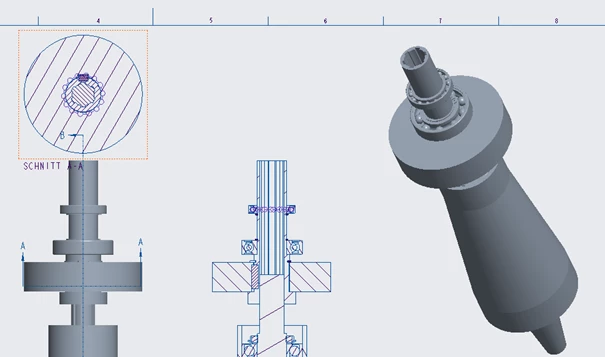

I have the following issue with my bearing: In the sectional views, the balls always seem to be fully displayed, and I just can't get rid of it (as in the attached file).

I imported and installed the bearing from the SKF catalog as an STP file like all the other bearings and they word fine.



Please help!

2 replies

kdirth
kdirth21-Topaz I
21-Topaz I
May 7, 2024 2:54 PM UTC

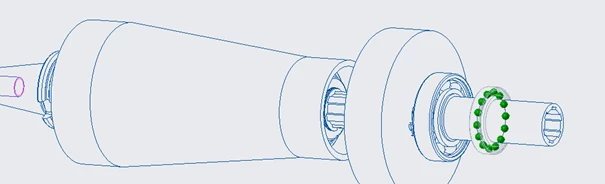

Since they show up purple, I am sure they are not solid and only a surface.  To get them to act as you want you need to solidify them or, in the Drawing View properties under View display check the box for Hidden line removal for quilts - Yes.

Translate
There is always more to learn.
    anursinghCommunity Manager
    Community Moderator
    May 13, 2024 10:48 PM UTC

    Hi @MS_11022618,



    I wanted to follow up with you on your post to see if your question has been answered.
    If so, please mark the appropriate reply as the Accepted Solution.
    Of course, if you have more to share on your issue, please let the Community know so that we can continue to help you.



    Thanks,
    Anurag
