Select all "small" parts/components in assembly

  • October 24, 2019
  • 4 replies
  • 3094 views

Hello all,

I want made Shrinkwrap from big assembly. But in assembly is many small parts (components) and Shrinkwrap creation failed.

Is thare any filter to select all small parts depended by their volume or area?

Thanks a lot.

Best answer by MartinHanak

Hi,

try using Find tool.


In my case I wanted to find models with volume < 1000 mm3



4 replies

M
MartinHanak24-Ruby IIIAnswer
24-Ruby III
October 24, 2019

Hi,

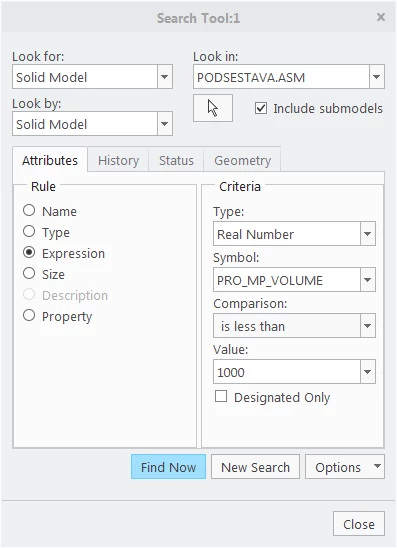

try using Find tool.


In my case I wanted to find models with volume < 1000 mm3



    M
    minco4-ParticipantAuthor
    4-Participant
    October 28, 2019

    Thanks, this is what I mean!

    HamsterNL
    HamsterNL18-Opal
    18-Opal
    October 24, 2019

    If you want to exclude those small components (parts) from your shrinkwrap, you could create a Simplified Rep and exclude components based upon their size.



    You will have to create a Rule Based simplified rep:



    https://support.ptc.com/help/creo/creo_pma/r6.0/usascii/#page/assembly%2Fasm%2Fasm_two_sub%2FTo_Create_Simpli_Represens_Using_Defin.html%23



    https://learningconnector.ptc.com/content/tut-3268/rule-based-simplified-representations
