Selecting all driving surfaces in sheet metal part


Is there an easy way to select all the driving surfaces (green side) of a sheet metal part?

Thanks,

Mark Bohannon

Creo & Windchill Administrator

Lenovo


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

6 replies

DeanLong1-Visitor
1-Visitor
May 6, 2015

Hey Mark,

Set your Selection in options to "Intent Surface" and see if that allows you to grab just the green side. I think I remember this working for sheet metal.

Dean

Translate
MarkBohannon1-VisitorAuthor
1-Visitor
May 6, 2015

I have tried "Surface' and 'Intent Surface' in the Find tool and both sides are returned in the Find results list. Not sure how to filter to just the one side.

Translate
DeanLong1-Visitor
1-Visitor
May 6, 2015

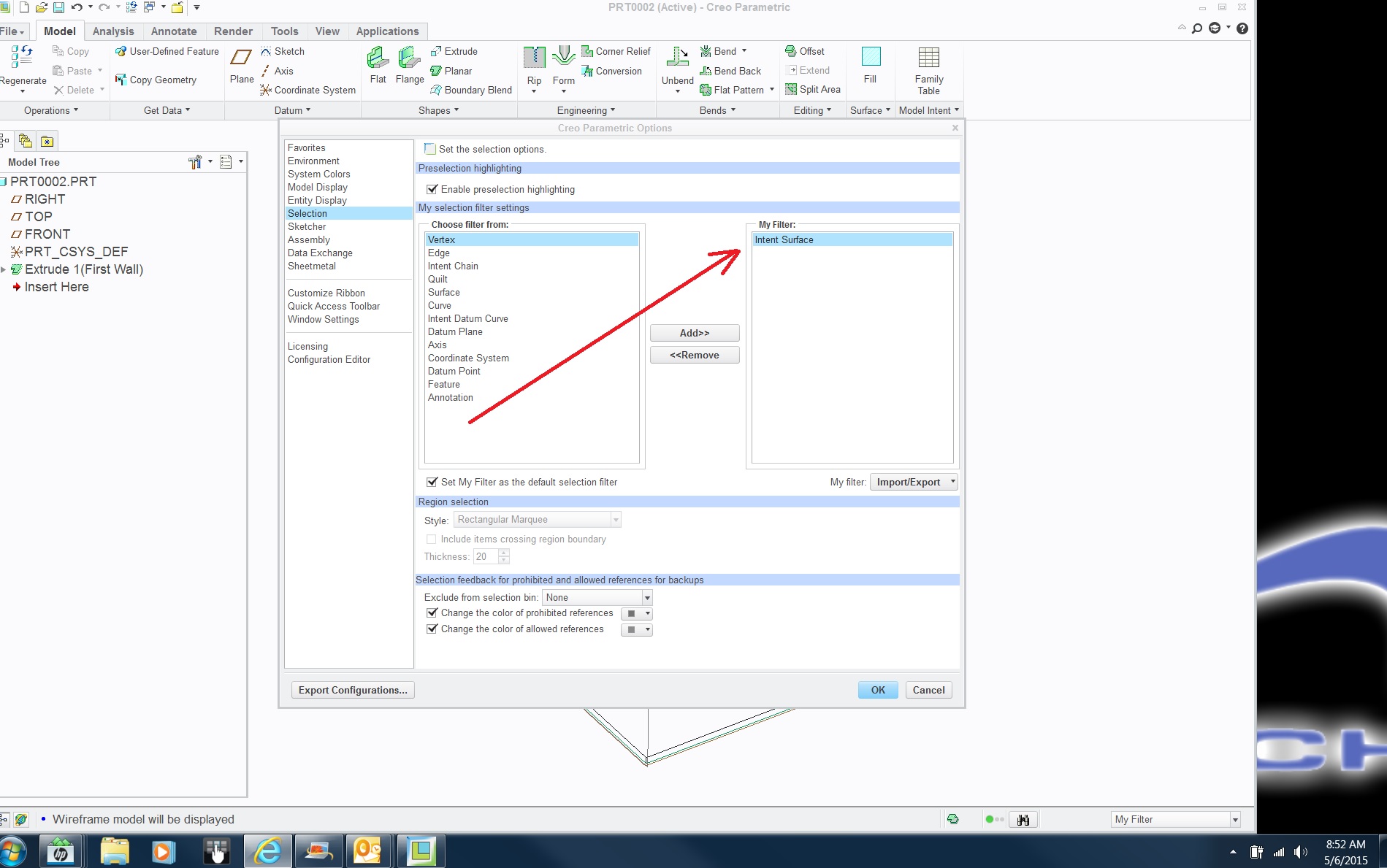

I am talking about setting the selection filter under File...Options...Selection


Translate
DeanLong1-Visitor
1-Visitor
May 6, 2015

Anyone remember the values for "marquee_selection_for_parts"? Is it yes/no...box.circle etc...?

The config option is a hidden one now but still comes up in Creo2.

Translate
