setting mass by family table

Hi alls,



I would like to set a part mass with a family table parameter.

Is it possible and how?

My aim is :

- To display it in bom and drawings (I can use a parameter with any
kind of name like ''my_own_mass''.)

- To use it within MDO for gravity action

- To use it with Mechanica, for calculate gravity effort

So, a personal parameter will not do all of this and seems to be not
sufficient.

I would like to know if it's possible to force total mass of a part and how.



Any advice?

Thanks,

GB






This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

3 replies

egifford12-Amethyst
12-Amethyst
April 12, 2013

Why not have material files for each material the part(s) may be made of, add them to the list of materials in the part model genericand set which material file is considered assigned to the instances by adding the material to the family table & setting it in the table? That way the mass is always calculated based on the geometry & material fileand is correct as changes are made to the model(provided you set mass_property_calculate to automatic or are sure to manually force a recalculation after changes).


Erik

Translate
ptc-19327451-Visitor
1-Visitor
April 12, 2013
Actually, this is the best way to manage materials, densities, etc.
What is really useful is that when you have several material files
included in the part model, not only can you family table them, but on
the parameters dialog, you can pick them from a list box drop-down,
rather than having to go into the part properties dialog under
file/properties/





Christopher F. Gosnell



FPD Company

124 Hidden Valley Road

McMurray, PA 15317
Translate
AndyHermanson14-Alexandrite
14-Alexandrite
April 12, 2013

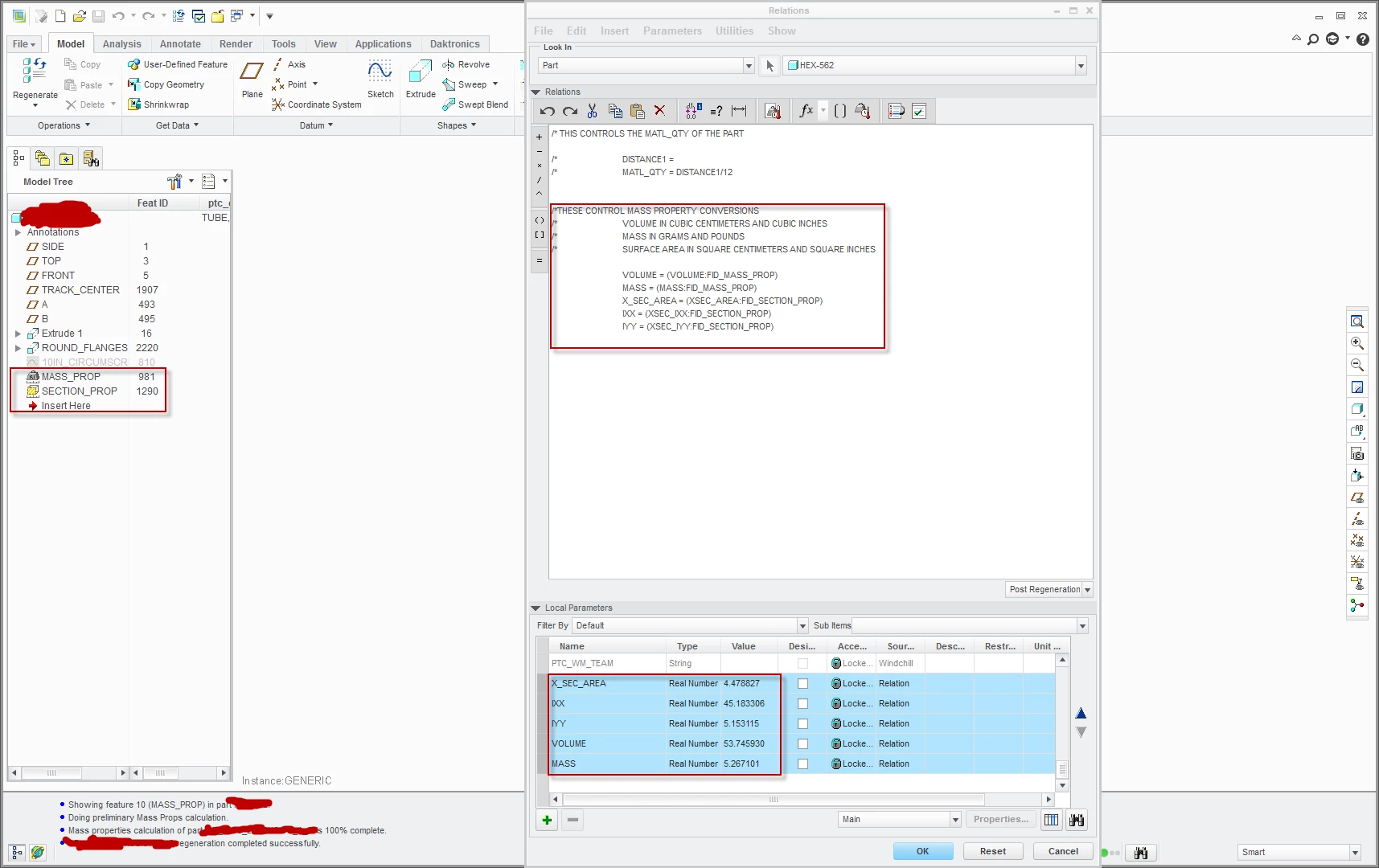

This may not be the best way but this is how we do this type of thing. We then use the Mass, Volume and x_sec_area in drawing notes. Use this a lot for extrusion and plastic parts.
