Sheetmetal basic question

Sorry for this basic question, it seems that I'm old and memory problems !!!

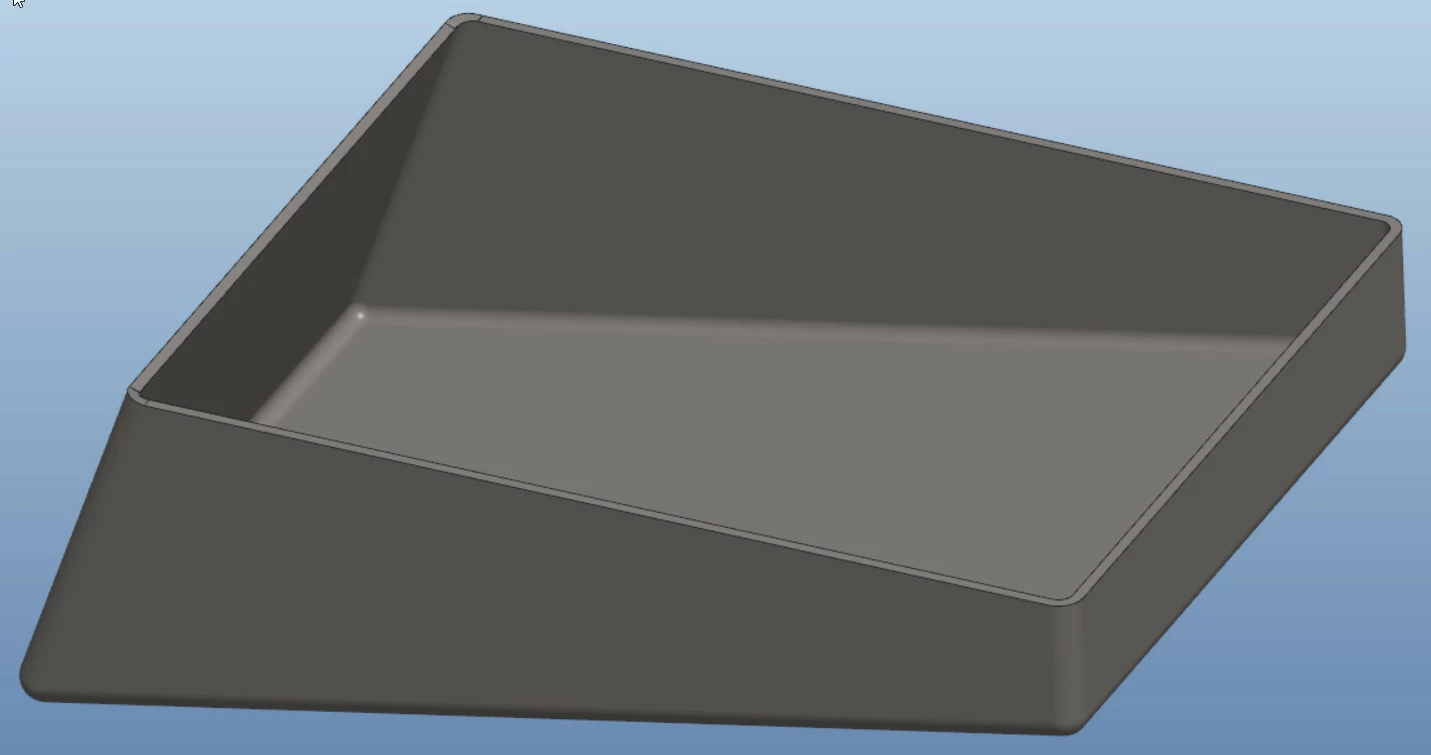

I have a simble "box" that I would to unbend.
Impossible to find anymore how to cut corners...
I've done this many and many times in the pass !
Several years ago...
Very sorry !-(

kdirth
kdirthAnswer
21-Topaz I
Oct 20, 2022 4:29 PM UTC

Here is a Creo 7 model.




There is always more to learn.
View in thread

4 replies

kdirth
kdirth21-Topaz I
21-Topaz I
Oct 20, 2022 3:44 PM UTC

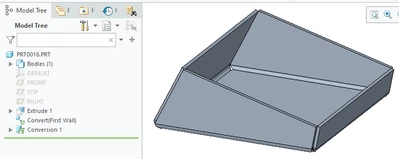

I would suggest model it as a solid without rounds then convert it by shell.

Translate
There is always more to learn.
kdirth
kdirth21-Topaz IAnswer
21-Topaz I
Oct 20, 2022 4:29 PM UTC

Here is a Creo 7 model.




Translate
There is always more to learn.
    mkajdan
    mkajdan14-Alexandrite
    14-Alexandrite
    Oct 20, 2022 3:57 PM UTC

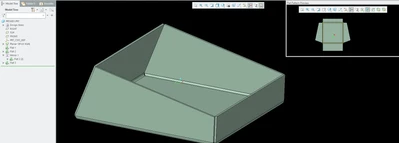

    It is possible using only sheet metal features.  Creo 8 model attached.






    Translate
    LeandroSD10-Marble
    10-Marble
    Oct 24, 2022 11:14 AM UTC

    Follows another way of modeling, hope it helps.

    Translate
