Sheetmetal punch form

  • May 10, 2016
  • 3 replies
  • 2814 views

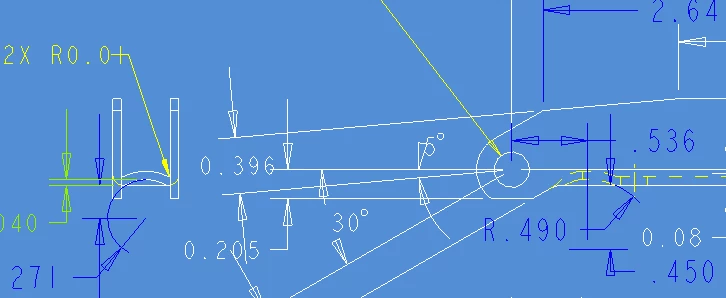

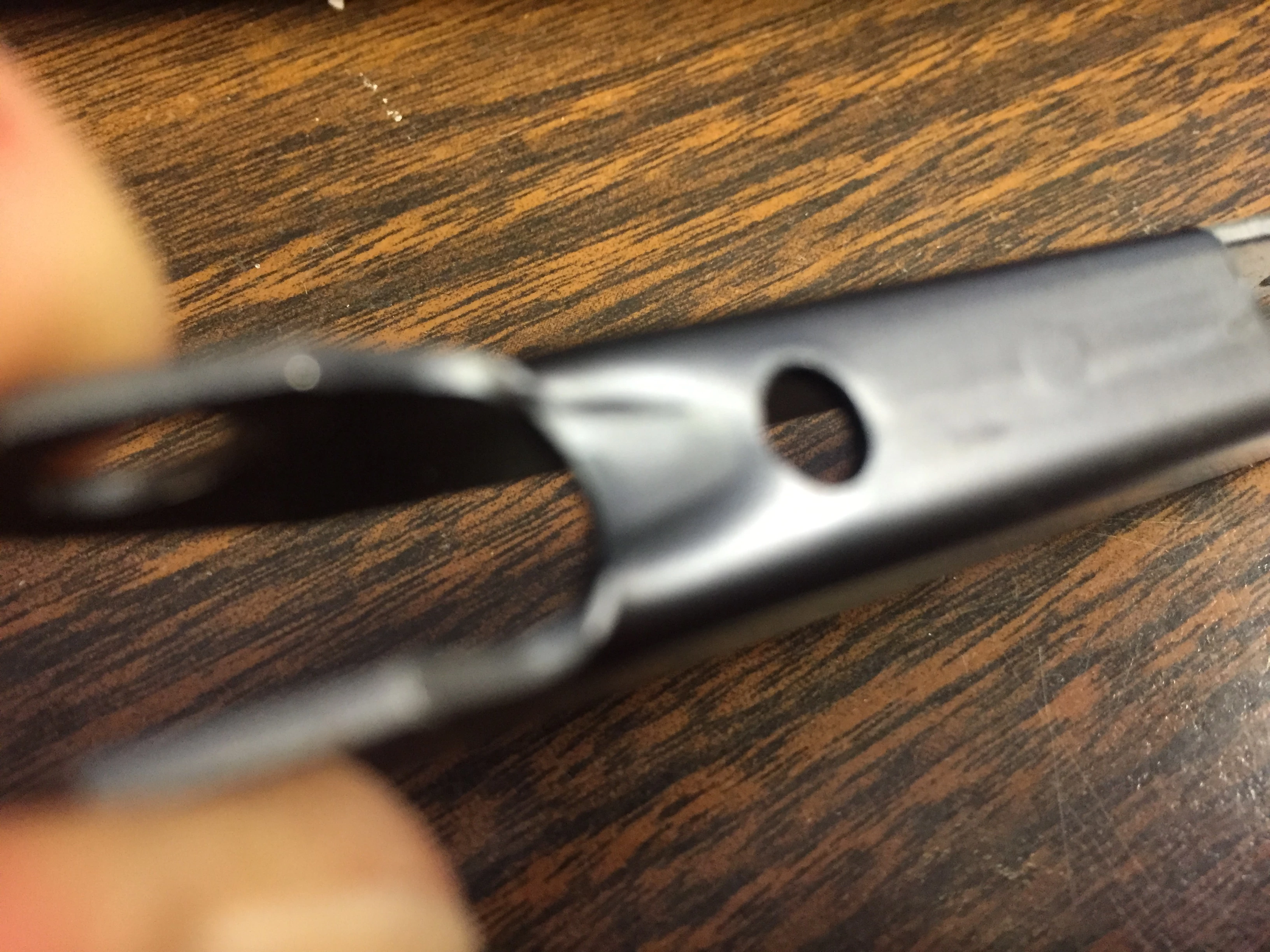

Can anyone help me with this punch form.  It keeps failing regeneration every way I try it.  I also need to change the inside radius on the 2 bends to .01 from "thickness"  but the bends are deformed when I do.  Thanks in advance for any help.  I'm still learning.


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

3 replies

drawlins1-VisitorAuthor
1-Visitor
May 16, 2016

Any suggestions appreciated.  I'm still struggling with this one.

Thanks,

Don

AmitDeshpande18-Opal
18-Opal
May 24, 2016

Hi Don,

I didn't download the parts, but try reducing the accuracy or flipping the punch direction.

Thanks,

Amit

    drawlins1-VisitorAuthor
    1-Visitor
    May 25, 2016

    Hi Amit,

    I was finally able to get the punch form to work.  Now I'm still struggling with the inner radius.  The part is made with a .010 inner radius but whenever I use any less than "thickness" the bend wants to deform.  Thanks for your reply.

    Thanks,

    Don
