Show annotations / Gtol in External inheritance or External merge model?

  • October 1, 2020
  • 1 reply
  • 2559 views

Can you show annotations / Gtol's in an External inheritance or External merge model?

Original model:






External merge model does not seem to carry the annotations along.

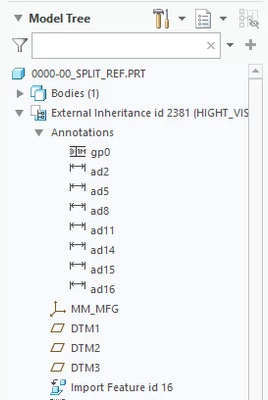

External inheritance model does carry the annotations along.

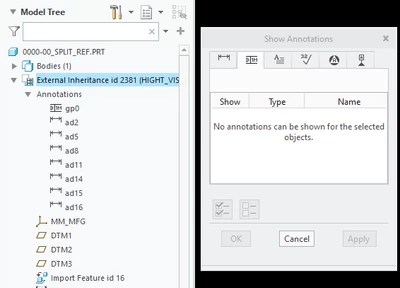

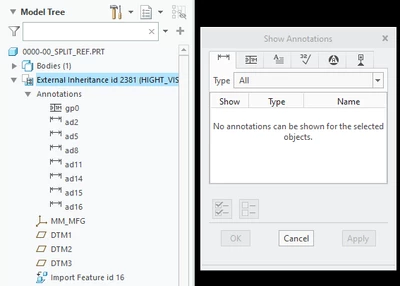

However, I am unable to show the annotations in the External inheritance model.







Any help would be greatly appreciated.









    Best answer by trent_stone

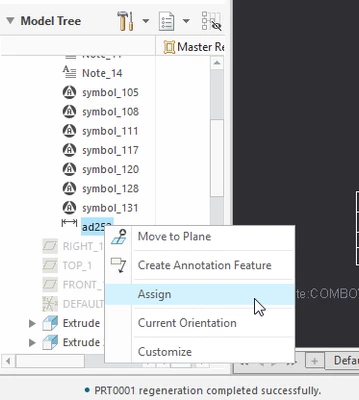

    From the annotation tab in the ribbon and in the correct combo view right click on the annotation and select assign.

    1 reply

    T
    trent_stone7-Bedrock
    7-Bedrock
    October 1, 2020




    T
    trent_stone7-BedrockAnswer
    7-Bedrock
    October 1, 2020

    From the annotation tab in the ribbon and in the correct combo view right click on the annotation and select assign.

      D
      dplachinski12-AmethystAuthor
      12-Amethyst
      October 1, 2020

      Ok. I assigned all my annotations to the default state. I am still unable to show them on the model.
