SHOW CURVE HIDDEN IN DRAWING

  • August 24, 2015
  • 3 replies
  • 3309 views

hello,

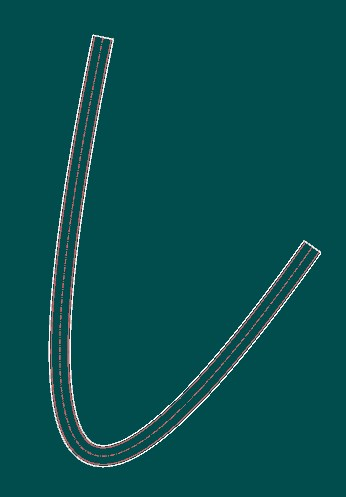

i have a problem: in a drawing of a sweep is it possible to show curves in drawing even if they are hidden? if i show hidden lines then i see the curve but if not i cannot see it.

thanks


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by Patriot_1776

Sorry, brain fart.  Since it's the trajectory, yes you'll need to show hidden, but you should still put it on a layer that you turn off in only that view or any other where you need to show it.  For the rest, hide it.

3 replies

Patriot_1776
Patriot_177622-Sapphire II
22-Sapphire II
August 24, 2015

Don't use hidden lines in views.  Get a set of rules-based layers, and use the layers.

cspinelli14-AlexandriteAuthor
14-Alexandrite
August 24, 2015

‌yes, its only a view to show my problem.

if i i use NO HIDDEN i cannot see the curve right?

Patriot_1776
Patriot_177622-Sapphire IIAnswer
22-Sapphire II
August 24, 2015

Sorry, brain fart.  Since it's the trajectory, yes you'll need to show hidden, but you should still put it on a layer that you turn off in only that view or any other where you need to show it.  For the rest, hide it.
