Showing metric values for custom dimension note even part is in inch unit Creo 3D parametric part

  • April 5, 2025
  • 1 reply
  • 1030 views

Hi,

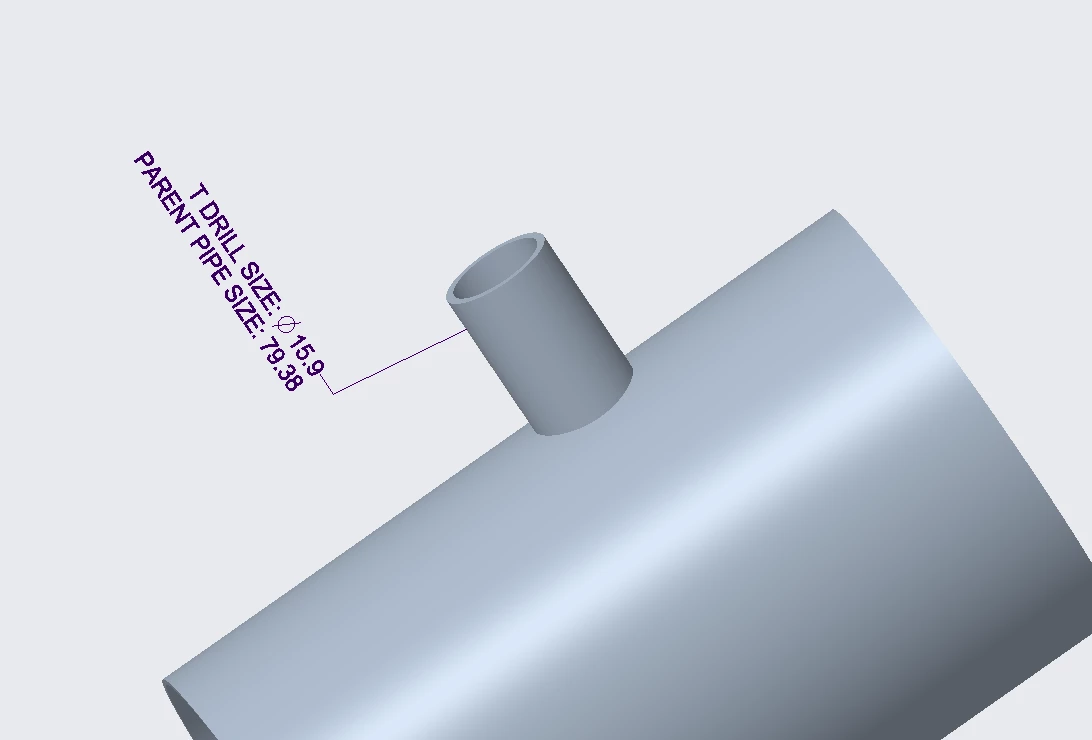

I am creating one hole feature in part. When i am adding annotation element to show custom note of radius of hole, It shows dimensions in metric units. But part is in imperial units.

Example, i have created one hole, its dimension in 0.625 inch. It should show same in note, but when i add it in note, it shows 15.9.



I checked little bit. it is showing, displayed value, but i need real dimension value in note. Is their any way to do it, please let me know.

My part unit system is Inch-LBs

Best answer by KenFarley

It would appear that you have some wonky settings in your part. Perhaps from whatever start part you created it from?

I can duplicate your experience by going to:



File -> Prepare -> Model Properties



Then scrolling down to Detail Options and selecting "change".

If the setting of dual_dimensioning is secondary, things go the way you are seeing them. Setting dual_dimensioning to the default which is primary returns things to the typical behavior which is values showing as inches when the model is inches, etc.

1 reply

KenFarley
KenFarley21-Topaz IIAnswer
21-Topaz II
April 5, 2025

It would appear that you have some wonky settings in your part. Perhaps from whatever start part you created it from?

I can duplicate your experience by going to:



File -> Prepare -> Model Properties



Then scrolling down to Detail Options and selecting "change".

If the setting of dual_dimensioning is secondary, things go the way you are seeing them. Setting dual_dimensioning to the default which is primary returns things to the typical behavior which is values showing as inches when the model is inches, etc.

    V
    Vinayak_Patil11-GarnetAuthor
    11-Garnet
    April 9, 2025

    Thank you. Yes, with dual dimensioning this is erratic behavior. In Metric Both Displayed and Dimension values are Mm. But in imperial units it is not.
