Silhouette Curve_ Propeller in Creo2.0

  • October 27, 2016
  • 2 replies
  • 4824 views

Hi to all,

I design the propeller with Blend in the wing area and close to the hub the "reinforcement"  with style an then i solidify the surface.

The automated silhouette curve does not close all the part as sown in pics. I have search to find a tutorial or some solution but i was not able to fix my problem.

There is someone to known how i fix this ?

There is a way to drawing my own silhouette curve ?

Thank in advance

Apostolis


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

2 replies

kdirth
21-Topaz I
kdirth21-Topaz I
21-Topaz I
October 27, 2016

Are all of the surfaces selected for the silhouette curve?

There is always more to learn.
A
agompakis1-VisitorAuthor
1-Visitor
October 27, 2016

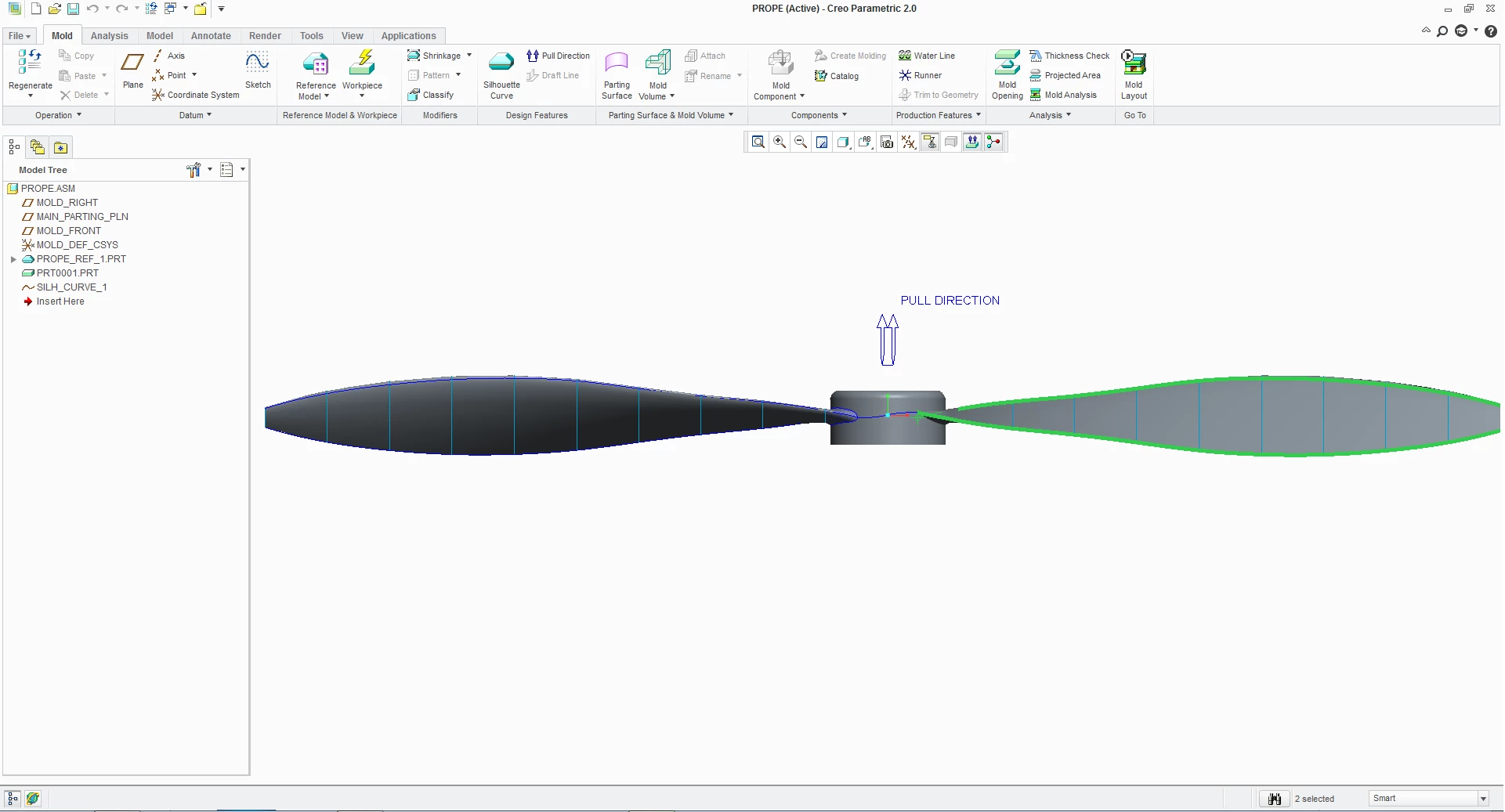

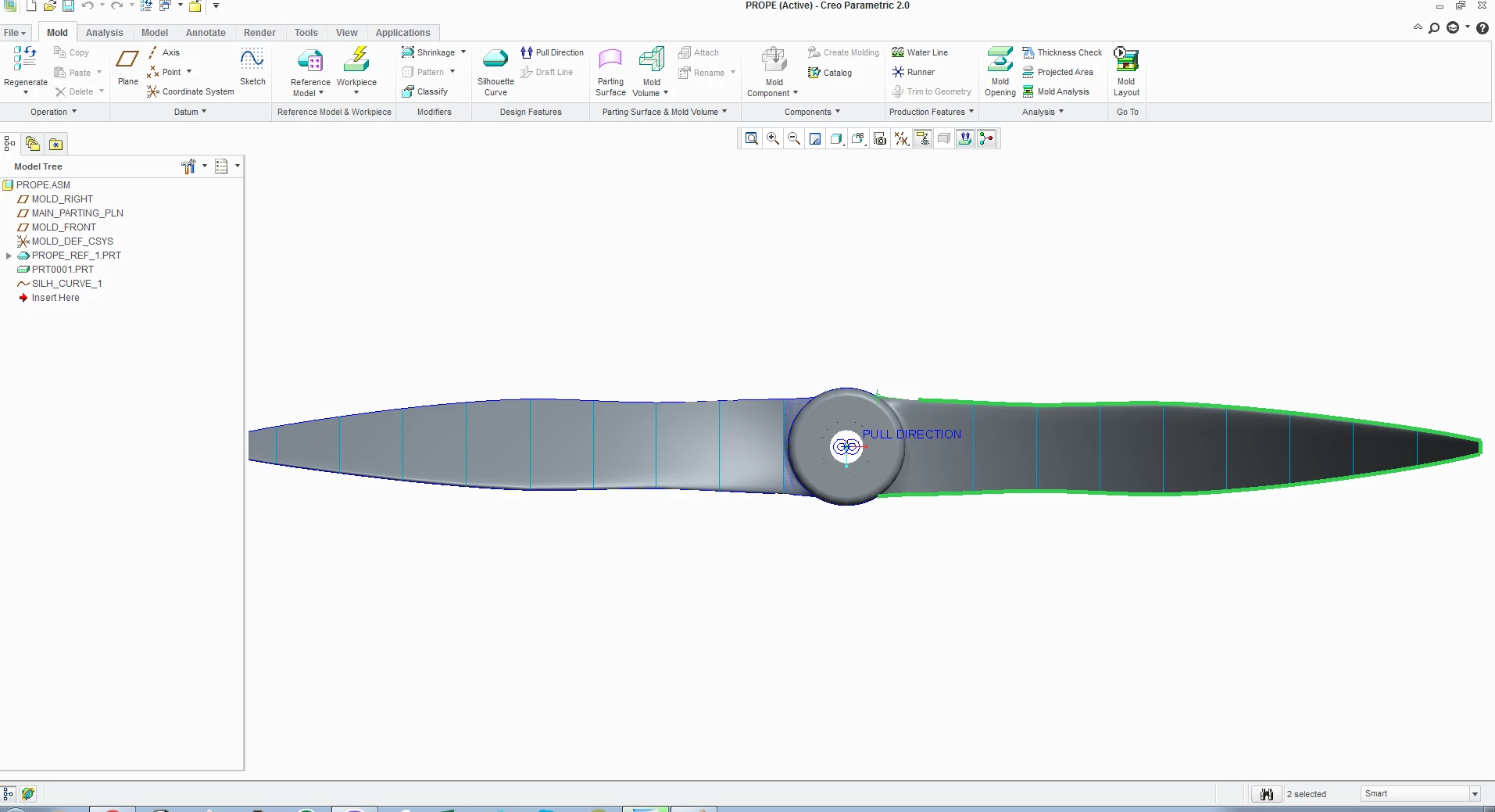

no only those regional to the shape, In the propeller_3 photo sows the the silhouette curve.

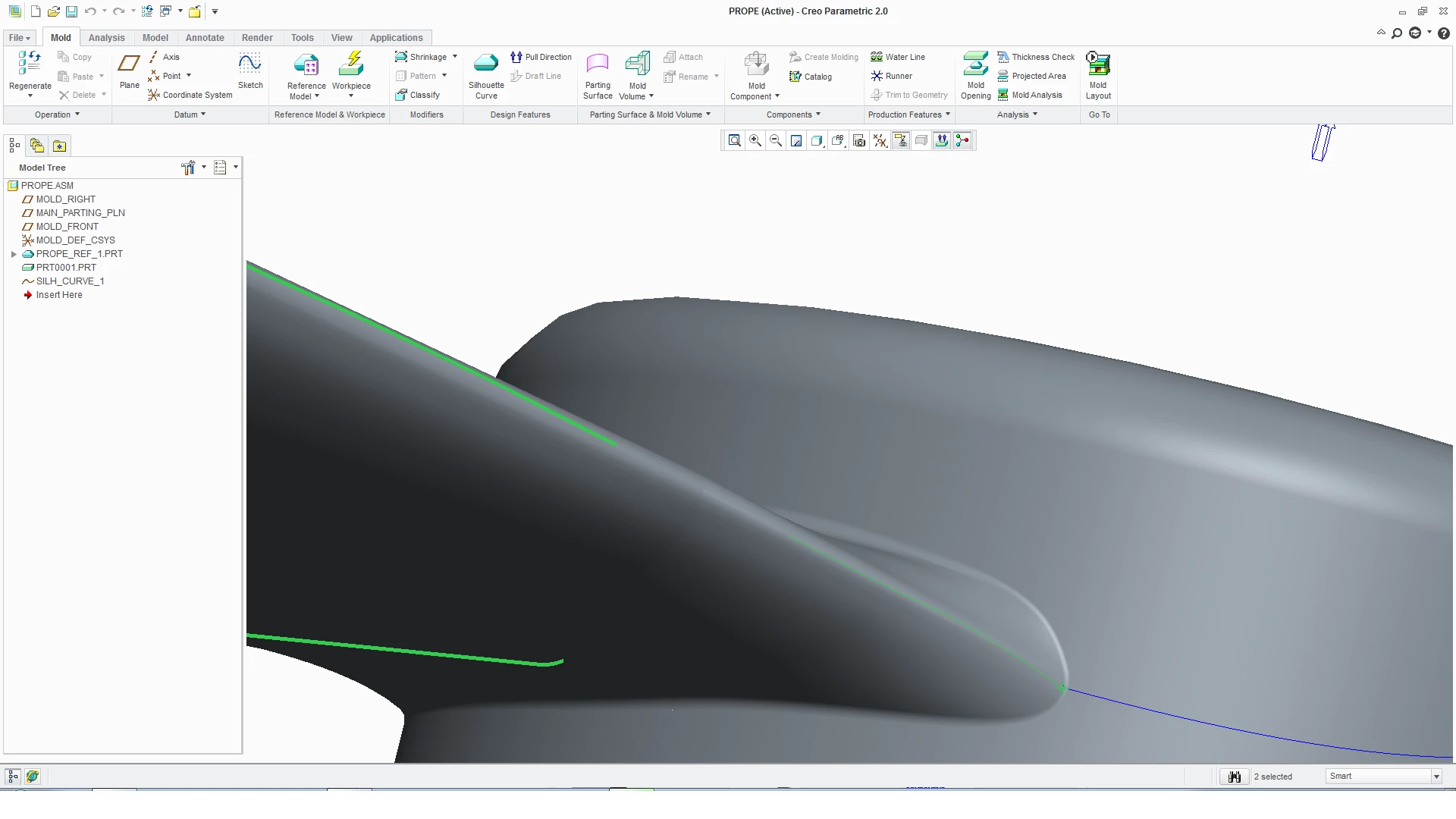

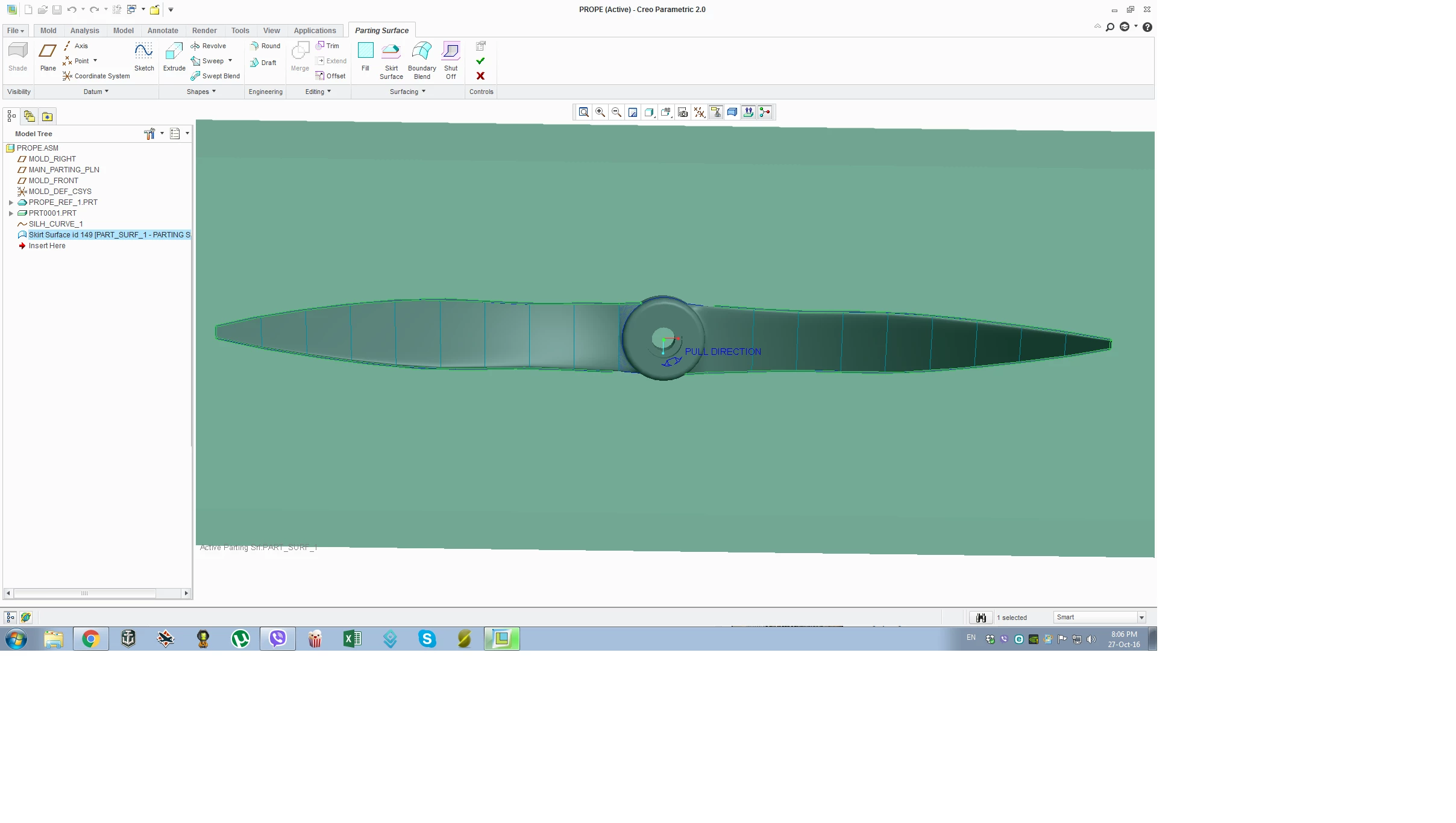

I attach to more photos with all curves and those i exclude. The  dark blue curve witch connect the tow blade in the hub region i created with style

Χωρίς τίτλο.pngΧωρίς png.png

kdirth
21-Topaz I
kdirth21-Topaz I
21-Topaz I
October 28, 2016

Can you attach the model so that we can look at it?

There is always more to learn.
bbrejcha
bbrejcha15-Moonstone
15-Moonstone
October 28, 2016

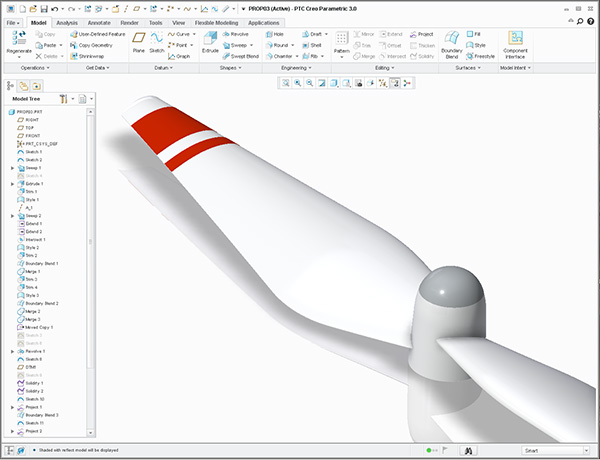

Here is a propeller we create in my aircraft surface modeling class except the proper way is to use Trajpar and rotate NACA sketch some

http://proetools.com/creo-surfacing-level-9-surfacing-aero-forms-using-creo/

Canto do this in SOLIDWORKS LOL

Bart Brejcha

Design-engine.com

Bart Brejecha designengine.com
