Silkscreen overlap in pdf

Hello,

I have issue when converting creo files to pdf, the Silk screen text overlap and is not visible clearly in pdf.
Please help me to resolve the same at the earliest.
Your quick reply would be highly appreciated. Thanks in advance.

Thanks,
Nayana
Honeywell Aerospace

9 replies

VladimirN24-Ruby IV
24-Ruby IV
Oct 1, 2022 3:17 PM UTC

 Hi,



1. What version of the program are you using?
2. Please show a screenshot with your issue.

Translate
    MartinHanak24-Ruby III
    24-Ruby III
    Oct 1, 2022 5:06 PM UTC

    Hi,

    I think Honeywell Aerospace company has its own CAD administrator. Why don't you ask him/her ?

    Translate
    NC_88707401-VisitorAuthor
    1-Visitor
    Oct 3, 2022 2:59 AM UTC

    Hello,

    Please find response below:

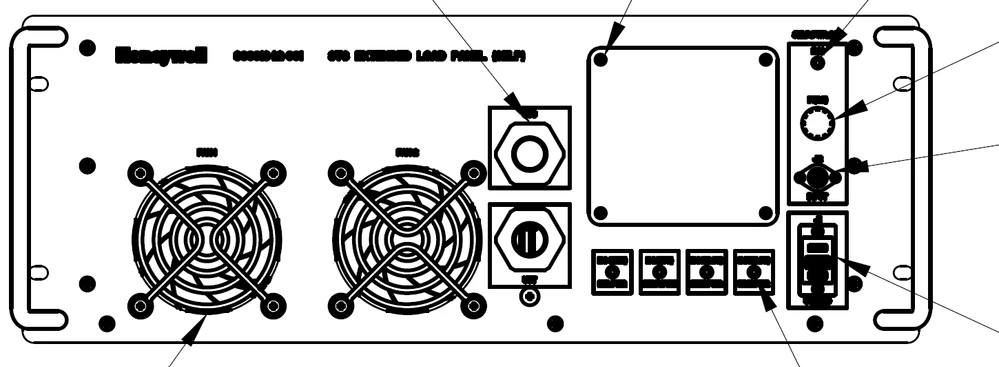

    I am using Creo 6.0 and Adobe acrobat Pro DC (64-Bit) for viewing pdf Below is the snap shot of Silkscreen converted from Creo to pdf wherein Silkscreen is overlapping

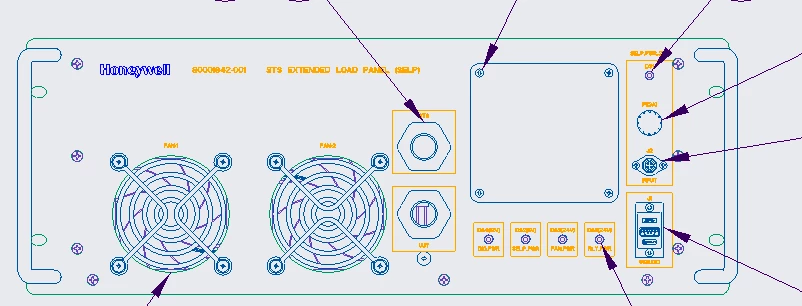

    Snap shot of the same from Creo tool:


    Thanks,

    Nayana

    Translate
    MartinHanak24-Ruby III
    24-Ruby III
    Oct 3, 2022 6:41 AM UTC

    Hi,

    your problem is related to pentable. You have to set pen widths properly.
