Sketch dimension from point to circle

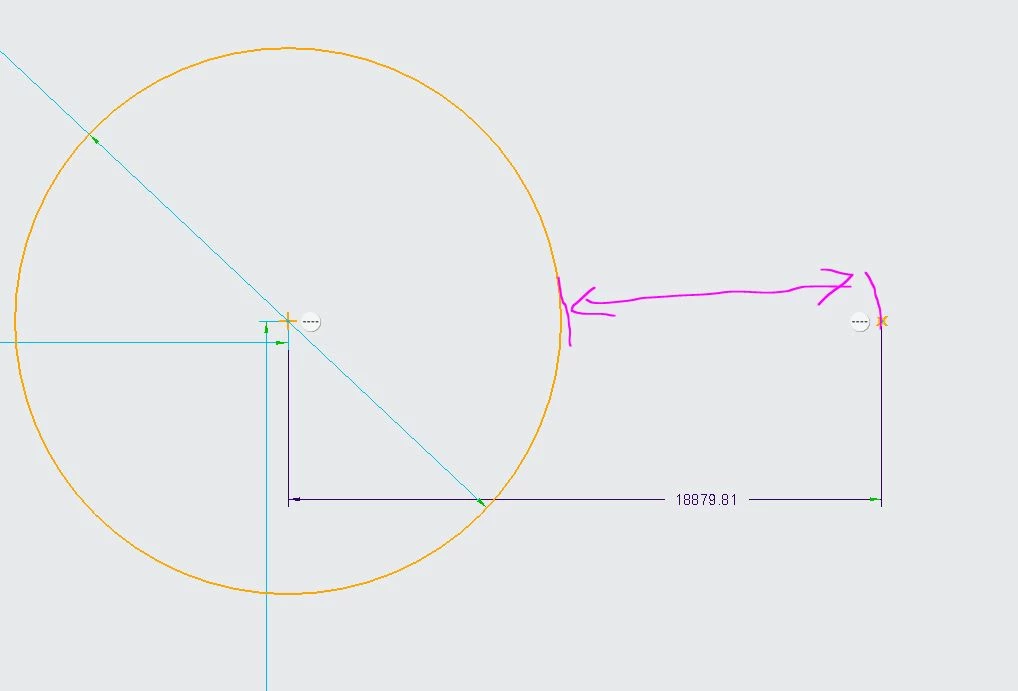

Hello members, how can I give dimension from Circle boundary to point? Its snapping to circle center point. See attached image. Thanks.

pausobAnswer
19-Tanzanite
May 14, 2022

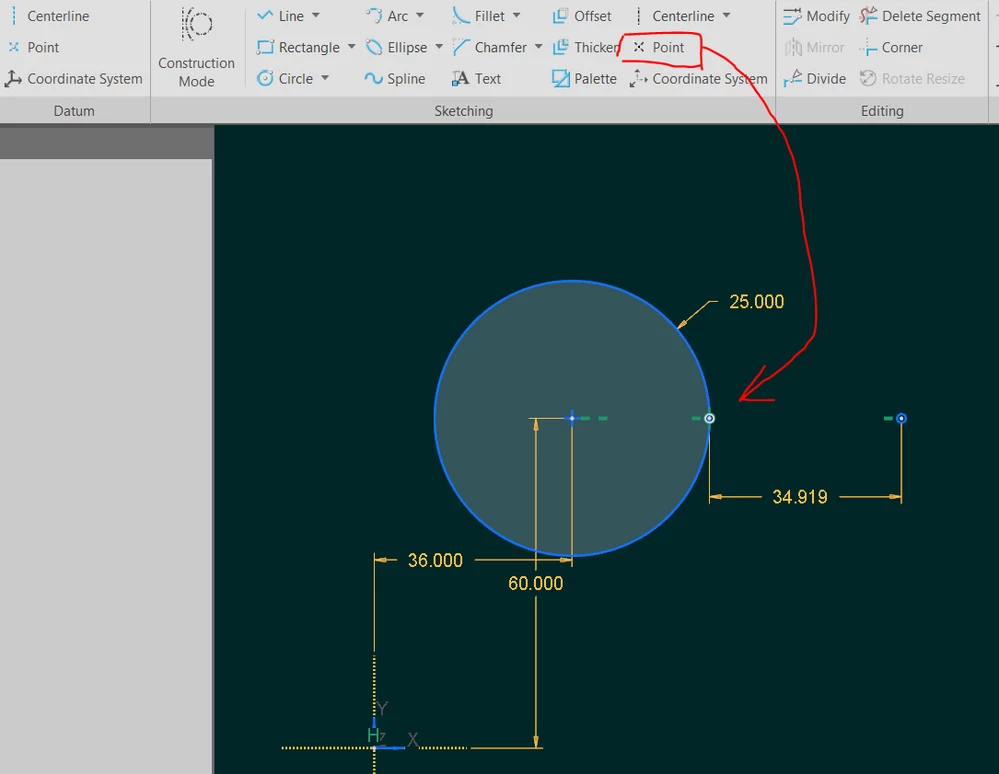

Create a construction point on the circle's boundary, then dimension to it:




View in thread

2 replies

pausob19-TanzaniteAnswer
19-Tanzanite
May 14, 2022

Create a construction point on the circle's boundary, then dimension to it:




Translate
    kdirth
    kdirth21-Topaz I
    21-Topaz I
    May 16, 2022

    Another option would be to create a construction line from the point to the circle adding a Point on Entity constraint between the line and the center point then dimension the line.
