Why is Sketch Feature Tools greyed out in WF5????
This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

15 replies

W
wfalco16-PearlAuthor
16-Pearl
November 4, 2014

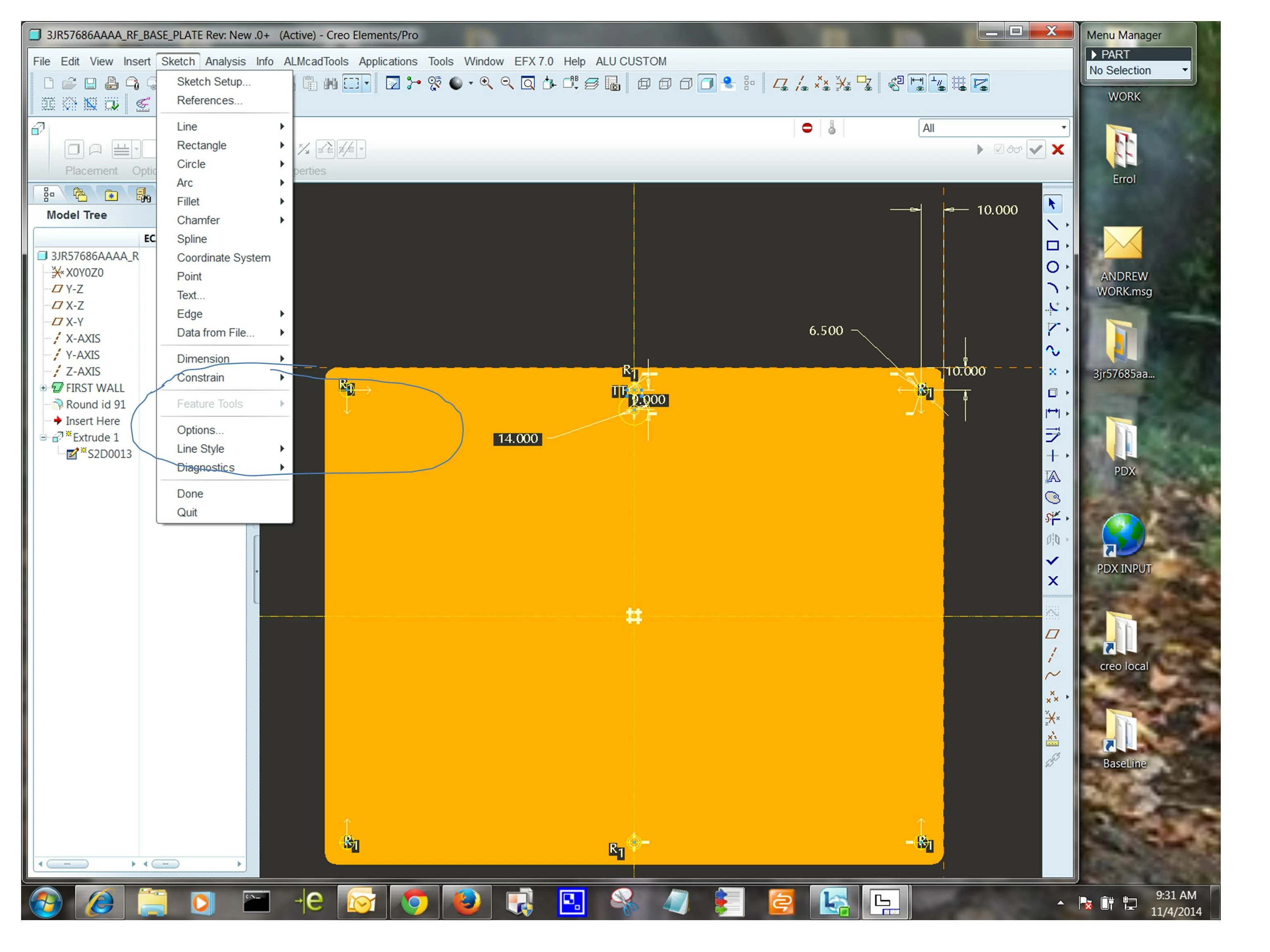

see pic - to clarify.

I used to use to make centerlines for slotted holes. axis point?


M
MikeBrattoli12-Amethyst
12-Amethyst
November 4, 2014
Wayne,

Sketch, Feature Tools is grayed out except for certain commands (Thicken and Blend functions are the most common ones I used to run into) in WF 5 - here's what should be displayed:

[cid:image001.png@01CFF818.F7437310][cid:image007.png@01CFF819.5593E3A0]

Not sure if this helps or not. For the vast majority of features types it was always grayed out

Mike Brattoli
Moen Incorporated
Global Product Development Process Management
Administrator - PLM
25300 Al Moen Drive
North Olmsted, OH 44070
D
dgschaefer21-Topaz II
21-Topaz II
November 4, 2014
In WF5, the old "axis point" is now called a geometry point. I think it's grouped on the toolbar with a regular sketch point.

It will make an axis in an extruded feature and a datum point in a plain sketch.

--
W
wfalco16-PearlAuthor
16-Pearl
November 4, 2014
I have ALWAYS uesd for "start point" I think it was called.


W
wfalco16-PearlAuthor
16-Pearl
November 4, 2014
I was told to do different way and that is also greyed out.


W
wfalco16-PearlAuthor
16-Pearl
November 4, 2014

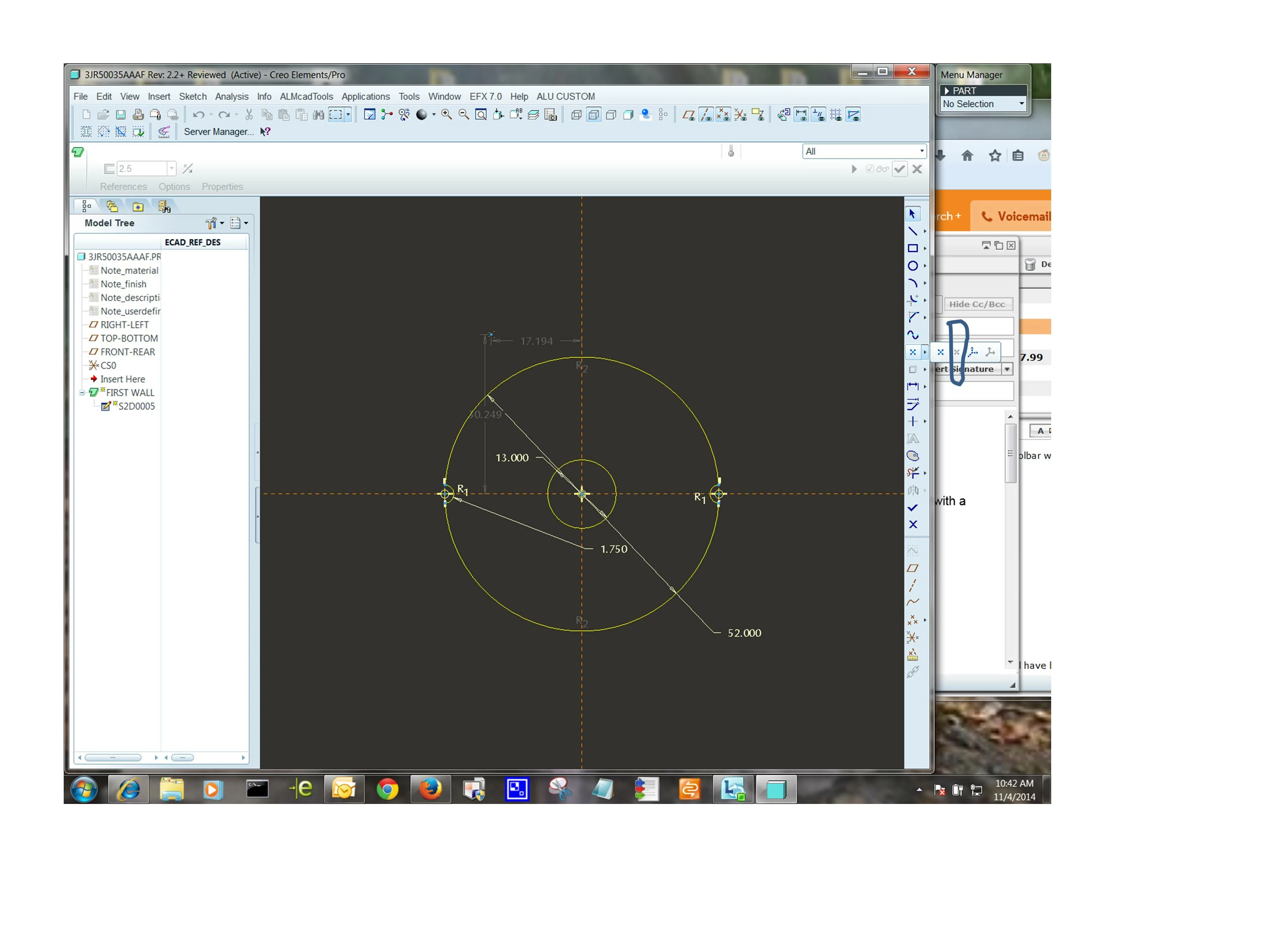

The first point symbol makes a point in sketch. I assume the second is
the one I want. Its greyed out. see attached.

W
wfalco16-PearlAuthor
16-Pearl
November 4, 2014
I got point tool to work on solid and on new sheet metal. I am assuming
that it won't work on older files???


W
wfalco16-PearlAuthor
16-Pearl
November 4, 2014
I just got this to work on an older file. I'm loosing it at this point
(get it?) I will have to spend some time experimenting. Thanks all!


M
mlocascio1-Visitor
1-Visitor
November 4, 2014
Easy Solution? Maybe you could model the revolved feature as a revolved feature. Then the axis is locked in.

Mike Locascio
M
mlocascio1-Visitor
1-Visitor
November 4, 2014
Yes. In Creo Parametric 2 it looks like a point. There is no other point on the sketch menu - that I am aware of.

Mike Locascio
