Sketch wont display even when not hidden

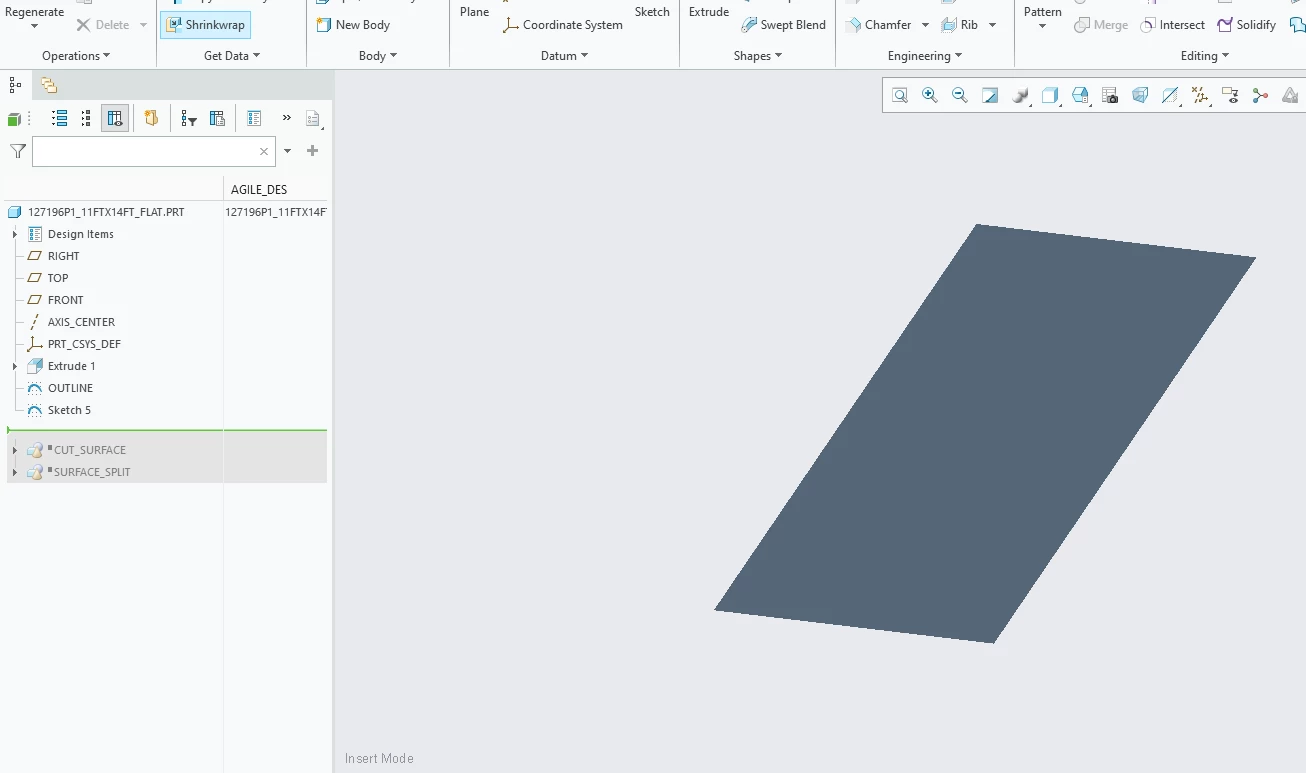

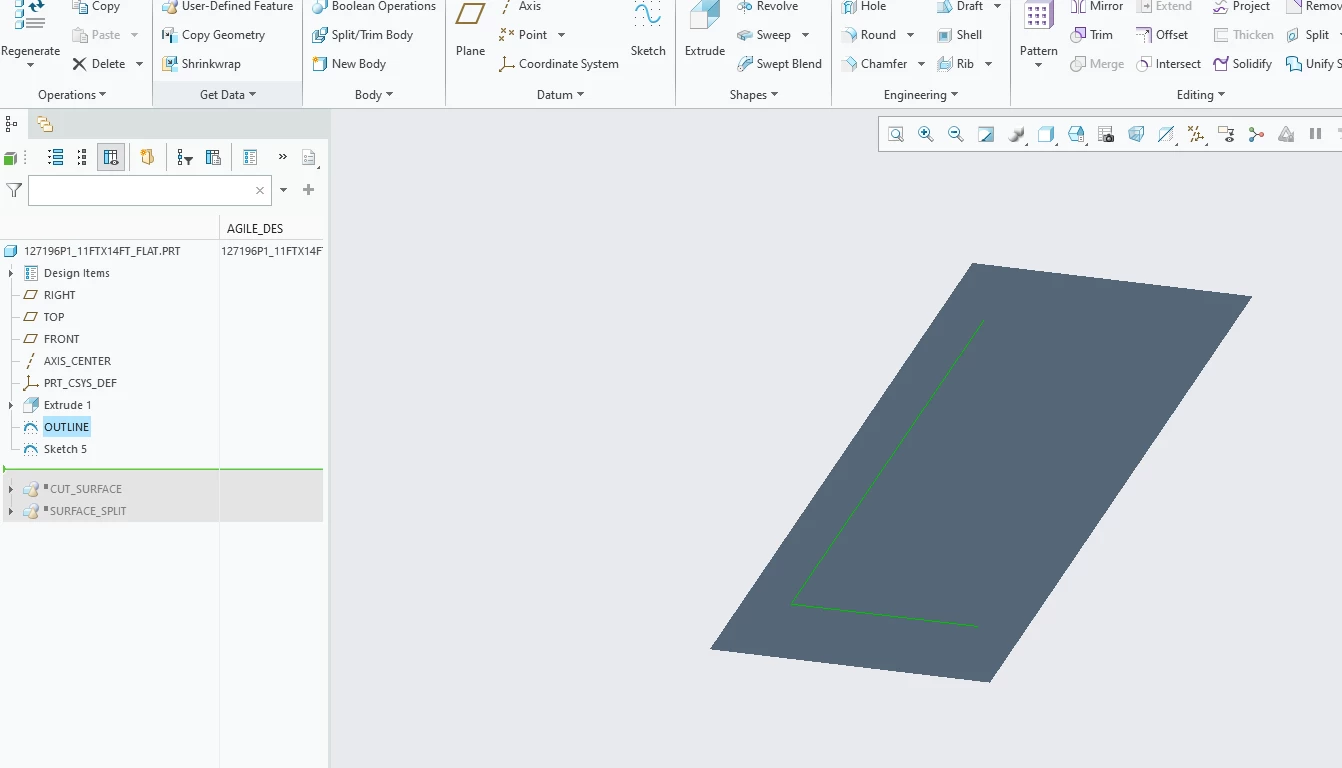

These sketch lines are only displayed when they are clicked on in the feature tree.  How can I get them to display in the model so that they can be used as reference geometry?

tbraxton
tbraxtonAnswer
22-Sapphire II
Sep 18, 2024 5:49 PM UTC

You have a hidden layer for all curves, unhide it and report back.






View in thread

3 replies

tbraxton
tbraxton22-Sapphire II
22-Sapphire II
Sep 18, 2024 5:36 PM UTC

First try displaying the model in wireframe with no hidden lines. If they are still not visible, then use feature info to find out if they are on a layer that is hidden.



Without access to the data, it is speculative to suggest the root cause of the issue.

Translate
CB_119165356-ContributorAuthor
6-Contributor
Sep 18, 2024 5:37 PM UTC

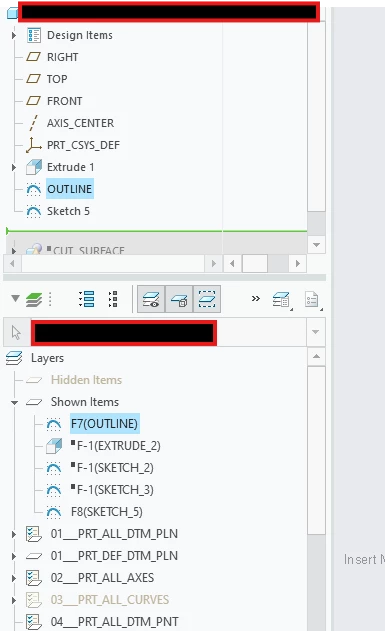

They do not display when in wireframe, and they are on the "Shown" layer

Translate
tbraxton
tbraxton22-Sapphire IIAnswer
22-Sapphire II
Sep 18, 2024 5:49 PM UTC

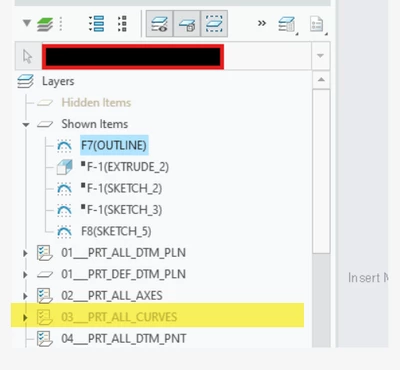

You have a hidden layer for all curves, unhide it and report back.






Translate
