Splitting a surface in Creo 7

  • August 22, 2022
  • 4 replies
  • 8499 views

Hi,



I have a question about splitting a surface in Creo 7.

The face in question looks like this.




I would like to split this surface where the line is. See picture.

This due to me wanting to draft the faces opposite direction, one CW and one CCW of the hinge above. Product in question is to be molded, therefore the desired features.

Can this be done using Creo 7.0.7.0?



Best regards, Fredrik



Best answer by MartinHanak
@FW_10272558 wrote:

Hi,



I have a question about splitting a surface in Creo 7.

The face in question looks like this.




I would like to split this surface where the line is. See picture.

This due to me wanting to draft the faces opposite direction, one CW and one CCW of the hinge above. Product in question is to be molded, therefore the desired features.

Can this be done using Creo 7.0.7.0?



Best regards, Fredrik



Hi,

FYI ... Split surface feature is explained in https://www.youtube.com/watch?v=fpdscl_rE58

If your model contains 1 body, then you can:

  • split body to get 2 adjacent bodies
  • apply drafts (one per body)
  • merge bodies



4 replies

F
FW_102725581-VisitorAuthor
1-Visitor
August 22, 2022

I had an idea of using an extrude surface such as below, to be able to use split surface but that didn't work.




Then I figured, perhaps I can use Intersect and then Split Surface, but that didn't seem to work either.



M
MartinHanak24-Ruby IIIAnswer
24-Ruby III
August 22, 2022
@FW_10272558 wrote:

Hi,



I have a question about splitting a surface in Creo 7.

The face in question looks like this.




I would like to split this surface where the line is. See picture.

This due to me wanting to draft the faces opposite direction, one CW and one CCW of the hinge above. Product in question is to be molded, therefore the desired features.

Can this be done using Creo 7.0.7.0?



Best regards, Fredrik



Hi,

FYI ... Split surface feature is explained in https://www.youtube.com/watch?v=fpdscl_rE58

If your model contains 1 body, then you can:

  • split body to get 2 adjacent bodies
  • apply drafts (one per body)
  • merge bodies



    F
    FW_102725581-VisitorAuthor
    1-Visitor
    August 22, 2022

    Hi Martin,



    Appreciate you for taking your time. I tried this and I believe it's the way to go. I will get back to you as soon as I can maintain the other features after doing the boolean operations.



    /Fredrik

    tbraxton
    22-Sapphire II
    tbraxton22-Sapphire II
    22-Sapphire II
    August 22, 2022

    Creo draft feature functionality supports split drafts. I do not think you need to split the surface prior to applying a draft feature. You should be able to apply the draft and split by draft object to get the desired result.



    The question I believe you are actually asking is how to apply a split draft to your geometry.

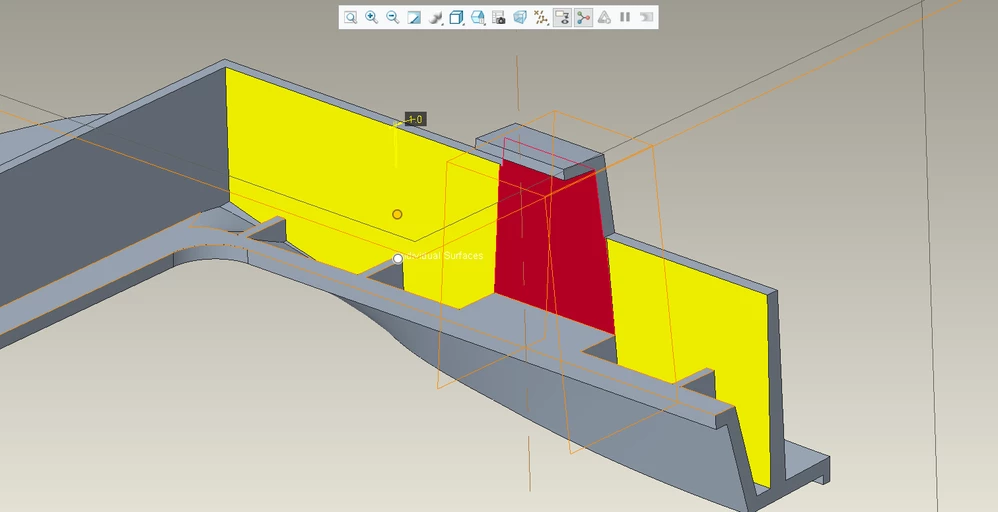

    Draft feature using split by draft object on a geometry similar to your model. The yellow is drafted one direction and split around the red surface.




      W
      wbottis14-Alexandrite
      14-Alexandrite
      November 28, 2023

      I could have sworn there was a simpler way to do this in a prior version of CREO. You could use a sketch to split the surface?

      Patriot_1776
      Patriot_177622-Sapphire II
      22-Sapphire II
      November 28, 2023

      Well, if it was a cylindrical surface, Creo would automatically split it for you....whether you wanted it or not!🤣🤣🤣

      W
      wbottis14-Alexandrite
      14-Alexandrite
      November 29, 2023

      In my current application, it is a cylindrical surface, but I don't see how Creo is automatically splitting it for me.
