Square tubing

It's been a while since I have done modeling in CREO.  What's the best way to model square tubing?  I thought there used to be a feature that you could extrude a line with a thickness to get simple square tube.  I am just trying to sketch up a simple weldment bracket, and I don't want to put a lot of time into the modeling.  It's not necessary.



Thanks in advance.





tbraxton
tbraxtonAnswer
22-Sapphire II
Feb 27, 2023 12:05 AM UTC

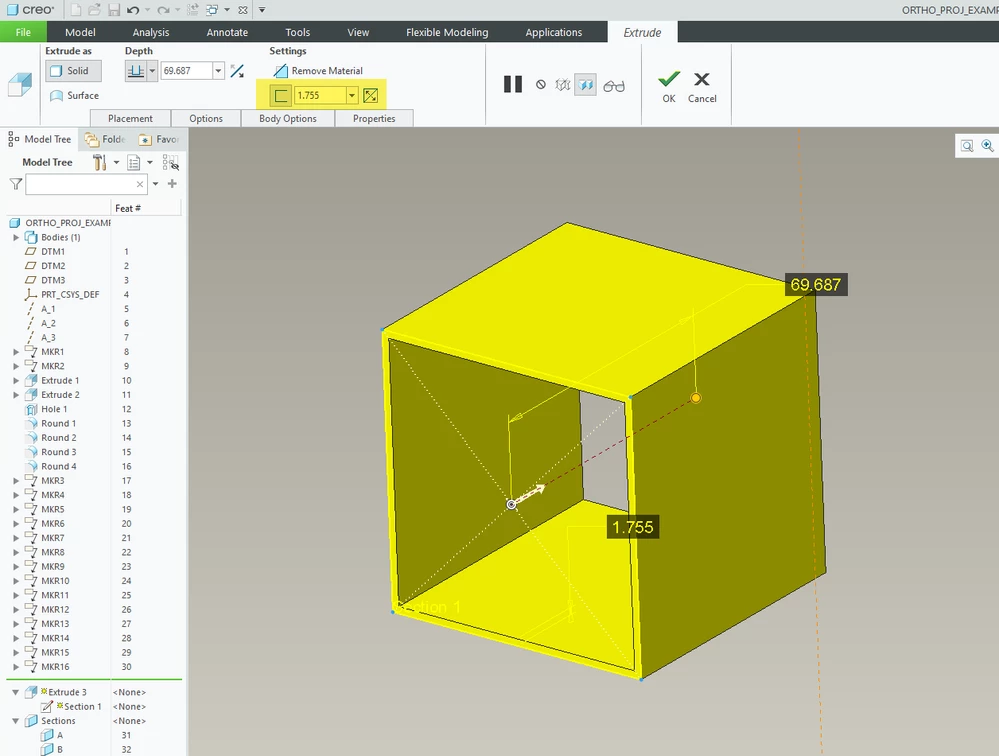

Extrude a thin protrusion is what you are looking for.






3 replies

tbraxton
tbraxton22-Sapphire IIAnswer
22-Sapphire II
Feb 27, 2023 12:05 AM UTC

Extrude a thin protrusion is what you are looking for.






Translate
gshockxcc7-BedrockAuthor
7-Bedrock
Feb 27, 2023 1:29 AM UTC

Bingo!  That's it.  Thank you.

Translate
23-Emerald III
Feb 27, 2023 2:19 PM UTC

You can use the Framework extension to get your tube size and length against a single line.
