Squircle shaped cylinder in creo

How to draw a Squircle shaped cylinder in creo.









tbraxton
tbraxtonAnswer
22-Sapphire II
Apr 4, 2023 10:04 AM UTC

Use the curve from equation functionality.

https://support.ptc.com/help/creo/creo_pma/r9.0/usascii/index.html#page/part_modeling/part_modeling/Example_Creating_a_Datum_Curve_from_an_Equation.html



The parametric equations for a superellipse are used to define the geometry of a squircle. You can do this in Cartesian or polar coordinates.

View in thread

6 replies

tbraxton
tbraxton22-Sapphire IIAnswer
22-Sapphire II
Apr 4, 2023 10:04 AM UTC

Use the curve from equation functionality.

https://support.ptc.com/help/creo/creo_pma/r9.0/usascii/index.html#page/part_modeling/part_modeling/Example_Creating_a_Datum_Curve_from_an_Equation.html



The parametric equations for a superellipse are used to define the geometry of a squircle. You can do this in Cartesian or polar coordinates.

Translate
tbraxton
tbraxton22-Sapphire II
22-Sapphire II
Apr 4, 2023 11:33 AM UTC

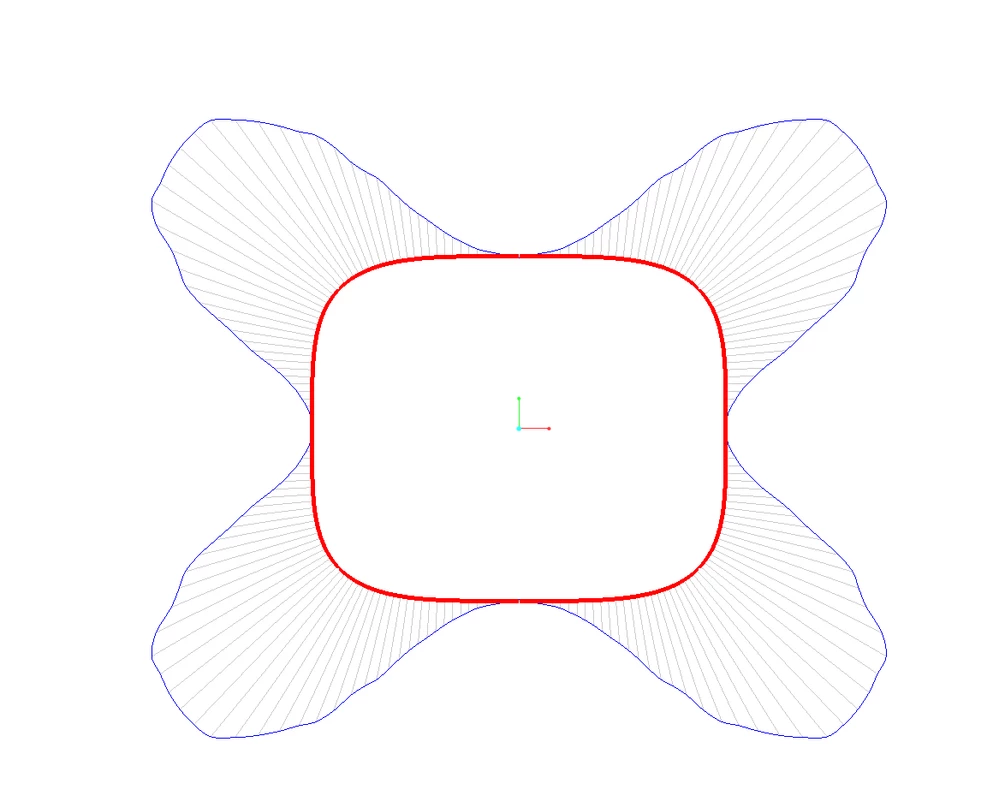

I would evaluate the math on this as Creo represents the curves if you plan to use this as a cam profile. The curvature plot does not look right to me when using the Cartesian parametric representation of a superellipse configured to form a squircle shown in red.










Translate
anegi5-Regular MemberAuthor
5-Regular Member
Apr 5, 2023 5:12 AM UTC

how to add equation for this curve?

Translate
tbraxton
tbraxton22-Sapphire II
22-Sapphire II
Apr 5, 2023 9:14 PM UTC
Use the curve from equation function. The Cartesian equation of a superellipse is used to create the squircle.
