Question

Standard Orientation view cannot be overwritten.

  • June 13, 2014
  • 4 replies
  • 3356 views

How do I change the Standard Orientation in a Pro-E Part? I can change all the orientations except Standard Orientation


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

4 replies

T
TomD.inPDX17-Peridot
17-Peridot
June 13, 2014

You might post this as a discussion.


M
mranganatha1-VisitorAuthor
1-Visitor
June 16, 2014

Hi Antonius,

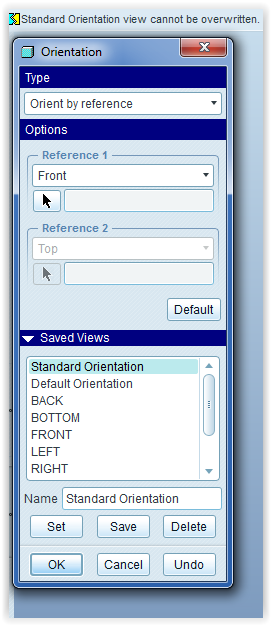

I tried with this option but it wasn't helpful. Let me reiterate. I want to save the standard orientation at a specific angle. I oriented the part and selected save on Standard Orientation it's not letting me to overwriteScreen+Shot+06-16-14+at+03.52+PM.PNG

M
mranganatha1-VisitorAuthor
1-Visitor
July 3, 2014

The Standard Orientation can either changed as Isometric or Trimetric, How did I change to an certain angle.

T
TomD.inPDX17-Peridot
17-Peridot
July 3, 2014

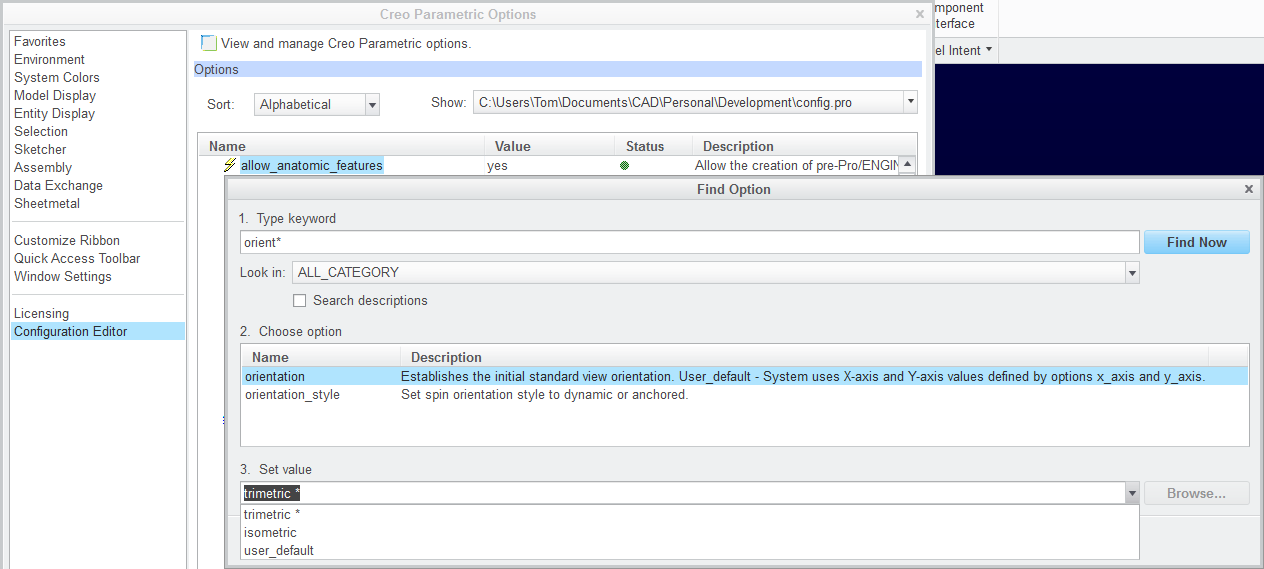

The "user default" option allows screen x and y rotation settings as well as ISOMETRIC and TRIMETRIC options.  See my image above.
