STEP Turn into surface. Double sided edge fix

  • September 8, 2017
  • 1 reply
  • 5484 views

Hello,



I have file from client that creo imports as surface. With IDD I found out there are a few edges that gives "Bad two-sided edge" it also gives a solution, that says use the"Merge Crv/Wfm". Where could I find this tool?

Best answer by MartinHanak

Hi,



in Creo Parametric 2.0 M070 I did following actions:

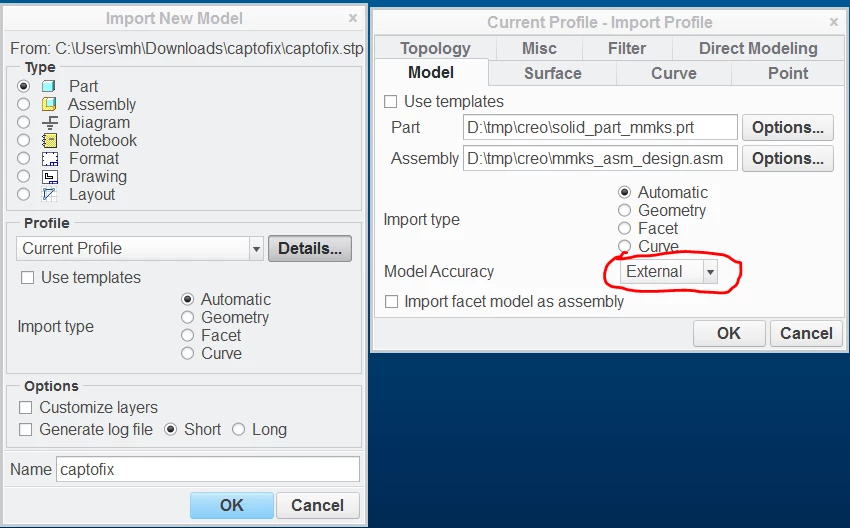

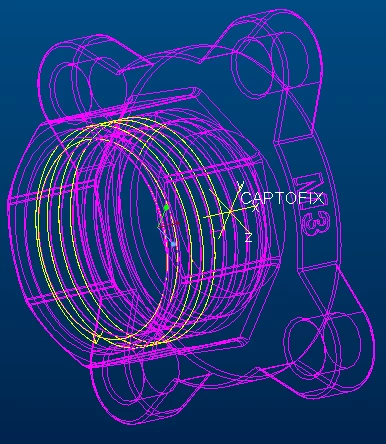

1.] When I opened captofix.stp, I set using External accuracy



2.] I edited definition of import feature and went to IDD mode using following button


3.] I clicked Repair button and set Reair Tangency option




4.] Finish Repair action using green check button

5.] Close IDD mode using green check button

6.] Click Solid import button and green check button to finish Edit Definition

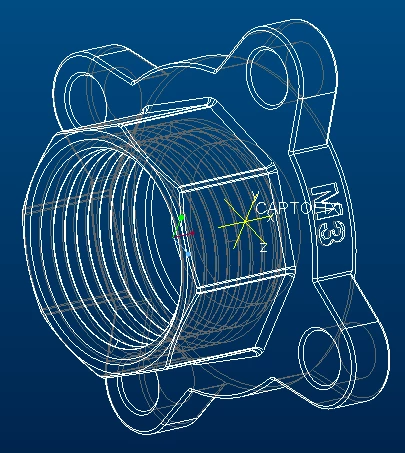

7.] Solid model is available






1 reply

M
MartinHanak24-Ruby IIIAnswer
24-Ruby III
September 8, 2017

Hi,



in Creo Parametric 2.0 M070 I did following actions:



1.] When I opened captofix.stp, I set using External accuracy



2.] I edited definition of import feature and went to IDD mode using following button


3.] I clicked Repair button and set Reair Tangency option




4.] Finish Repair action using green check button

5.] Close IDD mode using green check button

6.] Click Solid import button and green check button to finish Edit Definition

7.] Solid model is available






A
atilas11-VisitorAuthor
1-Visitor
September 8, 2017

Hello Martin,

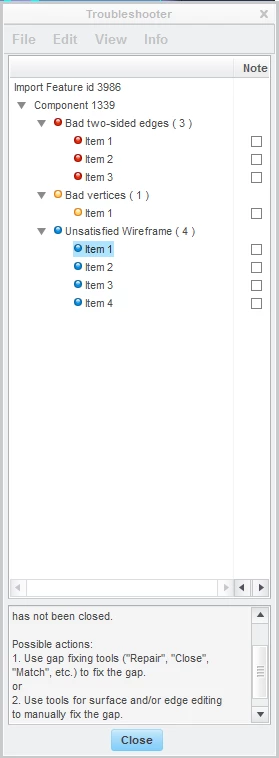

Thanks for informative reply, however, that was first thing that I did and most of the time it worked for me as well. However for this model it doesn't. When I go into geometry check it shows for me a few problems that repair doesn't fix. I usualy ignore Bad vertices, it seems creo handles them well. However other two types of problems I don't know how to resolve.




M
MartinHanak24-Ruby III
24-Ruby III
September 8, 2017

Hi,



unfortunatelly I do not know how to deal with IDD geomchecks.



Do you use commercial -OR- education license ?



What Creo version do you use ? I can test model repair in it and send you the resulting model.
