Strange graphics issue in drawing view

  • August 22, 2022
  • 2 replies
  • 2678 views

Hi all, I have an issue with a drawing I have produced recently. I essentially have a drawing view of a profiled cylinder & have this weird double line in the areas I have radii. I have attached a screen shot of the offending lines. When the drawing is exported to a dxf or dwg format this behaviour is also exported. I have experienced this in the past & I am sure cured the issue with some setting but I cannot for the life of me figure out how to get rid of these extra lines now, to leave a single line profile. If I create an area cross section through the cylinder & then update the drawing view to be the same I get the result I desire, a single line but I shouldn't have to go to those lengths. I am sure it is an Entity Display setting or some other Model Display setting but which one. Any ideas?



John

    2 replies

    M
    MartinHanak24-Ruby III
    24-Ruby III
    August 22, 2022

    Hi,

    I am just curious. I created test files in Creo 4.0. Extra lines do not exist.

    J
    John.Pryal1-VisitorAuthor
    1-Visitor
    August 22, 2022

    Hi Martin, I create these cylinders all the time & don't usually see these extra lines. I don't know why they are visible in this instance.



    John

    M
    MartinHanak24-Ruby III
    24-Ruby III
    August 22, 2022
    @John.Pryal wrote:

    Hi Martin, I create these cylinders all the time & don't usually see these extra lines. I don't know why they are visible in this instance.



    John

    Hi,

    I guess you cannot upload your files ...

    If you open my file, is the result OK ?



    KenFarley
    KenFarley21-Topaz II
    21-Topaz II
    August 22, 2022

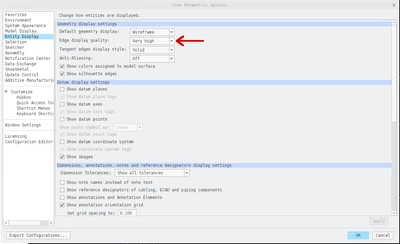

    I'm kind of remembering getting oddball results with large arcs in the past. They'd get faceted and look goofy. Maybe it's too simple a guess but how about the setting shown in the attached image?



    Since you said you have many other parts with the same type of geometry and they're fine, I doubt my answer is right, but there it is anyway.

    Display Options.png

      J
      John.Pryal1-VisitorAuthor
      1-Visitor
      August 22, 2022

      Hi Ken, that was the first thing I checked. I have edge display quality set to 'very high' in my config.



      John
