Strange path error for Sweep prevents full extrusion

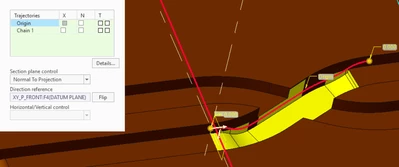

I have a problem with identifying what is wrong with the Intersection paths for Sweep:

It seems like an easy fix but I need some fresh eyes to catch it.

kdirth
kdirthAnswer
21-Topaz I
May 21, 2025 7:12 PM UTC

I opened it in Creo+ and chain 1 is an edge on the bottom of the board.  You must have accidentally selected it.  I changed it to the curve and the result looked better.

There is always more to learn.
View in thread

3 replies

kdirth
kdirth21-Topaz IAnswer
21-Topaz I
May 21, 2025 7:12 PM UTC

I opened it in Creo+ and chain 1 is an edge on the bottom of the board.  You must have accidentally selected it.  I changed it to the curve and the result looked better.

Translate
There is always more to learn.
    kdirth
    kdirth21-Topaz I
    21-Topaz I
    May 21, 2025 7:43 PM UTC

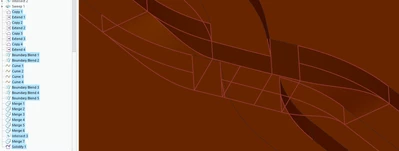

    I also tried creating a similar feature with surfaces

    • Copy and extend walls
    • Add curves for transitions
    • Create boundary blends to fill in surfaces
    • Merge all together.
    • Solidify - remove material




    Translate
    There is always more to learn.
    AJ_1215266710-MarbleAuthor
    10-Marble
    May 21, 2025 7:49 PM UTC

    Thanks a million @kdirth, the previous one is my preferred way. It works fine now, thanks!
