Stud Welds

Does Creo have a weld symbol for stud welds?  If so where is it located?  I have looked in the weld application under spot weld but I do not see anything.

2 replies

achirilaEmeritus
Emeritus
Apr 29, 2024 10:11 AM UTC
Hi @RH_9684496
Thank you for your question.
I encourage you to bring more details and context to your initial inquiry. This will make it easier for you to receive meaningful help from other Community members.

Translate
Alberto_Todisco7-Bedrock
7-Bedrock
Mar 20, 2025 10:14 AM UTC

I have encountered the same issue.

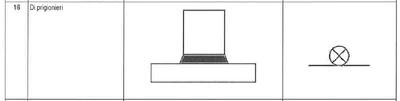

I need to create a welding feature for a stud bolt, but using the feature in the welding environment, I am unable to achieve the correct symbol, which according to the standard should be like the one attached.

I am also waiting for feedback on this topic.

Alberto
