Question
Summary: Pattern With Rotation
- January 28, 2015
- 3 replies
- 2654 views
Thanks to Rui Vaz for the solution in the attached model.
What is needed is:

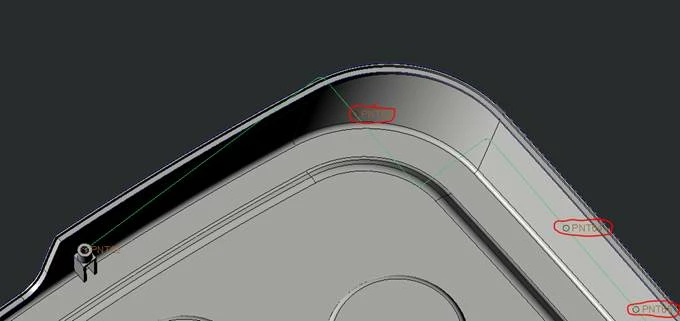

1. Sketched points in the locations I want them.
2. A sketched curve defining the normal for my feature orientation (I had to convert all sketch entities to a spline to get it to work).
3. Another set of points created by a point pattern on top of the sketched points.
4. Create a datum plane through the first of the patterned point and normal to the sketched spline.
5. Use that plane as the reference plane for the sketched features I wanted to rotate.
6. Group the features and reference pattern the group.
I hadn't included step #3, I was using a point pattern on my features directly from the sketched points.
--
This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
What is needed is:
1. Sketched points in the locations I want them.
2. A sketched curve defining the normal for my feature orientation (I had to convert all sketch entities to a spline to get it to work).
3. Another set of points created by a point pattern on top of the sketched points.
4. Create a datum plane through the first of the patterned point and normal to the sketched spline.
5. Use that plane as the reference plane for the sketched features I wanted to rotate.
6. Group the features and reference pattern the group.
I hadn't included step #3, I was using a point pattern on my features directly from the sketched points.
--
