Surface finish symbol placement

  • November 9, 2023
  • 3 replies
  • 2452 views

I am trying to place a surface finish symbol on a drawings and the message box at the bottom says,

"The selected surface is already consumed by surface finish sf0 as a restricted reference. Select another surface"



Where would I find sf0, and how did it get consumed?













3 replies

S
23-Emerald III
StephenW23-Emerald III
23-Emerald III
November 9, 2023

You should be able to see them in the model tree if you turn on annotations or in the drawing tree if you are in a drawing.

Dale_Rosema
23-Emerald III
Dale_Rosema23-Emerald IIIAuthor
23-Emerald III
November 9, 2023

I found it. Didn't know that it made a feature. I am used to dumb symbols that were put on drawings.

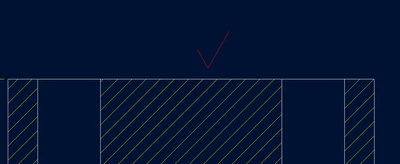

How do I get rid of the leader and just attached to the point where I want it to attached.

Patriot_1776
Patriot_177622-Sapphire II
22-Sapphire II
November 9, 2023

'Sup Dale!



So, I'm guessing that the surface finish symbol in this case was created at the model level, and not the dwg level?  I have doubts about the "drawing-less" move to pure model based definitions now because of issues like this.

P
PS_98565961-Visitor
1-Visitor
August 3, 2024

to resolve this follow the steps

1. open the model.

2. go to annotate

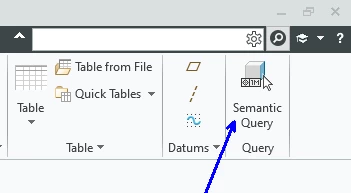

3.go to Semantic Query.

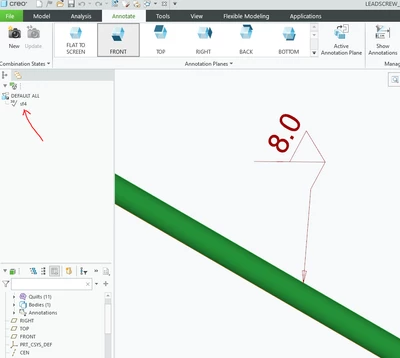

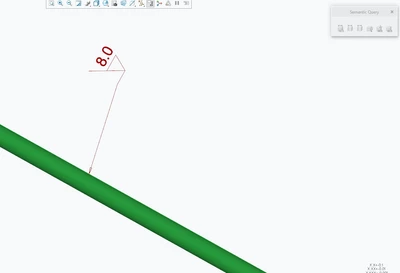

4.and select the surface it will be highlighted along with annotate.

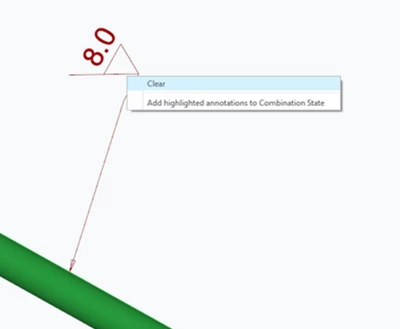

5. select the annotate and right click. clear it


6. save the model and go the drawing sheet it will remove.

P
PS_98565961-Visitor
1-Visitor
August 3, 2024

7. added "Add Highlighted annotate to Combination state"

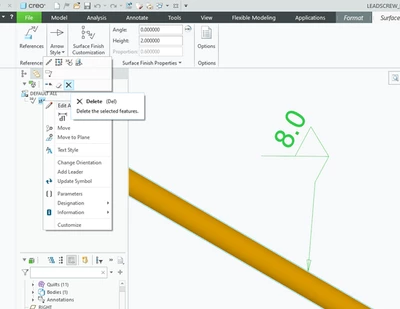

8. select and delete it and save the model. go back to drawing it will resolve
