Question

Symbols for asymmetrical tolerances E.g. ‘GN’ for upper limit and ‘LP’ for lower limit

  • January 23, 2025
  • 1 reply
  • 1018 views
I am using Creo Parametric Release 8.0 and Datecode8.0.11.0

According to ISO 14405 - 1, it should be possible to further specify both tolerance values with a symbol in the case of asymmetrical tolerancing. E.g. ‘GN’ for upper limit and ‘LP’ for lower limit. How can the symbols be assigned to the tolerance values in Creo?

    1 reply

    M
    MW_76326806-ContributorAuthor
    6-Contributor
    January 23, 2025

    Here is an example of the symbols for ‘GN’ for upper limit and ‘LP’ for lower limit. How can I define them in creo?






    kdirth
    21-Topaz I
    kdirth21-Topaz I
    21-Topaz I
    January 23, 2025

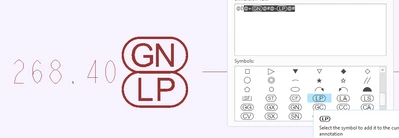

    I don't know that you can add it to the format of the tolerance but you can add it to the dimension text.




    There is always more to learn.
      M
      MW_76326806-ContributorAuthor
      6-Contributor
      January 23, 2025

      Hey, thanks for your answer!!

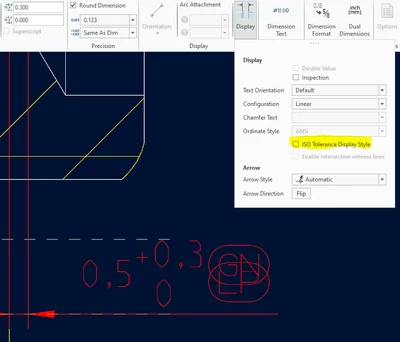

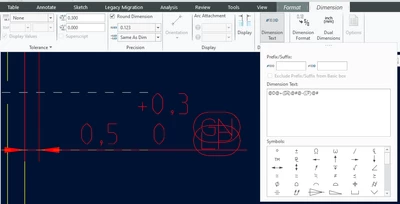

      I have already tried this, but got the following result:


      If I deactivate the ISO display style, it is also wrong:




      do you have an idea?
