Symbols to join on the dimension and not only to teh 2d view

  • February 17, 2026
  • 2 replies
  • 94 views
I am using Creo Parametric Release 12.4 and Datecode12.4.2.0

Hello,
in 2D drawing, I'm not longer able to fix the symbols to the dimension, but now just on the view
I remember in the old relase (9 - 10) It was possible
Is the a configuration needed or other to have the possibility?
Thank's in advance
    Best answer by kdirth

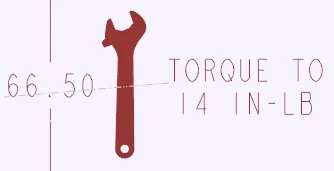

    In Creo+ (13.1) when adding a symbol, you can just select an object (part, dimension, symbol, etc.) in the view to relate it to and place it where you want it.


     The chain symbol will allow you change or add the attachment.


    Relate to view, after placement, is the only way to attach it a view
