Text below angular dimensions in drawings

  • November 27, 2024
  • 1 reply
  • 1866 views

Hello.

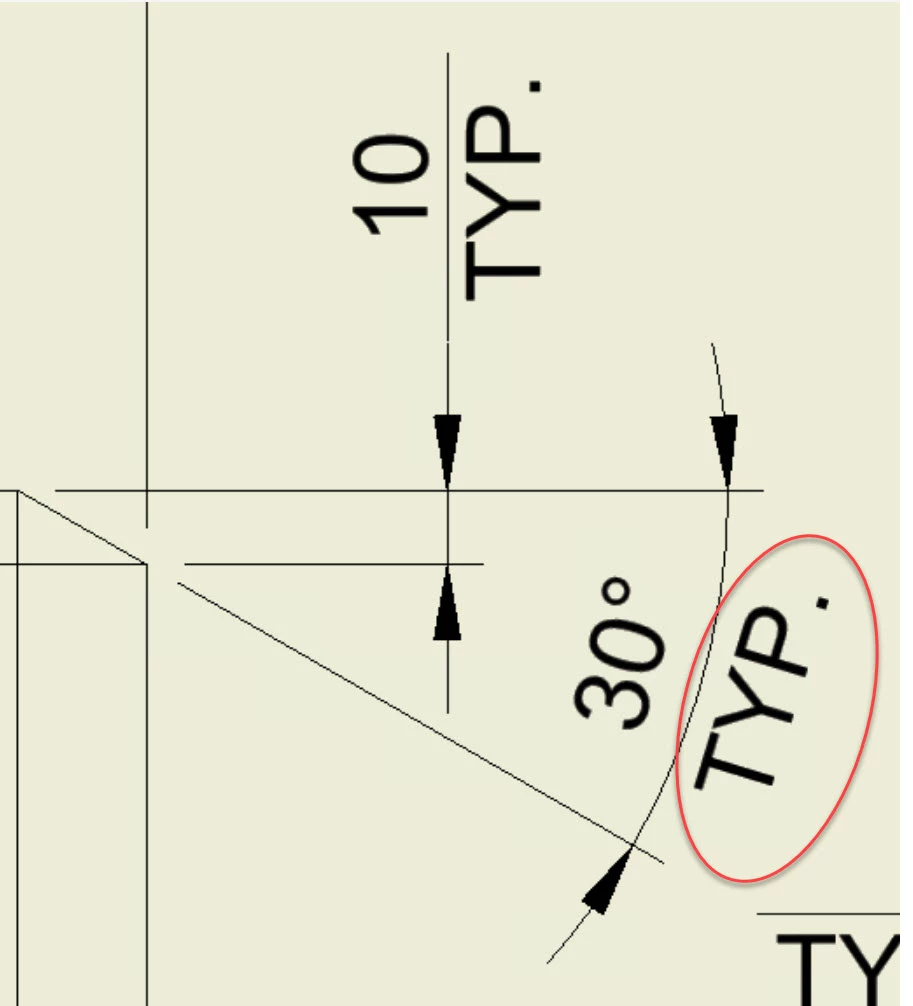

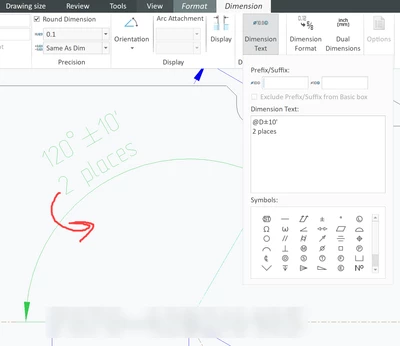

Please tell me how to move the second dimension line below the angular dimension line as on attached picture? In a usual linear dimension, it is enough to move the text to a new line in "Dimension Text" and it wraps under the line, but in angular size this does not work.

Best answer by AJ_TROGLIO

I see.

Set the drawing detail option 'default_angdim_text_orientation' to 'parallel_outside' then.



And when you edit the angular dimension, put carriage a return line and then enter in your additional text

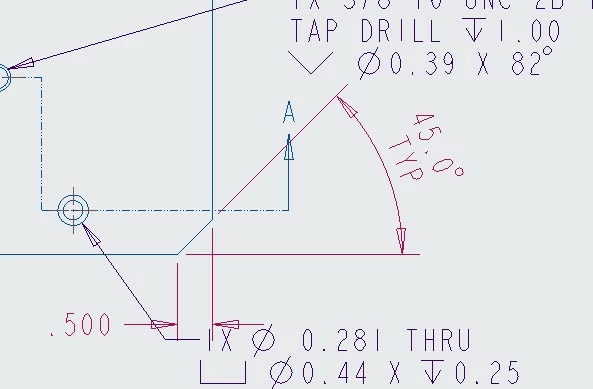

See attached.

1 reply

A
AJ_TROGLIO14-Alexandrite
14-Alexandrite
November 27, 2024

I assume you are using ISO tolerancing standard.  To verify, in a drawing, file/prepare/drawing properties.  Select the ISO tolerancing standard.



Then select change next to detail options and scroll down till you find;

      default_angdim_text_orientation.



      set that to parallel_fully_outside



My result is attached.



M
MK_106224128-GravelAuthor
8-Gravel
November 28, 2024

Thank you for reply, but it's not what I want.

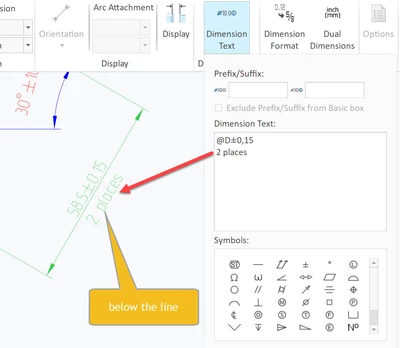

I mean that in linear dimension, when I move note on next line in "Dimension Text " field it goes to below dim line.




But in the same situation in angular dimension all text stay above dim line.


Changing default_angdim_text_orientation not help.





A
AJ_TROGLIO14-AlexandriteAnswer
14-Alexandrite
December 2, 2024

I see.

Set the drawing detail option 'default_angdim_text_orientation' to 'parallel_outside' then.



And when you edit the angular dimension, put carriage a return line and then enter in your additional text



See attached.
