Text orientation for dimension on drawing

I want to rotate this values as vertical. Could you anyone help me ?

22-Sapphire II

Have you followed the techniques presented in the documentation?

You can change the orientation of a linear dimension that is created using any of the following entities as references:

•A single linear entity.

•Two explicit point entities.

•Center or any tangent point of any two circles, arcs, or ellipses.

•An explicit point and a center or any tangent point of a circle, arc, or ellipse.

Translate

Author

4-Participant

Hello,

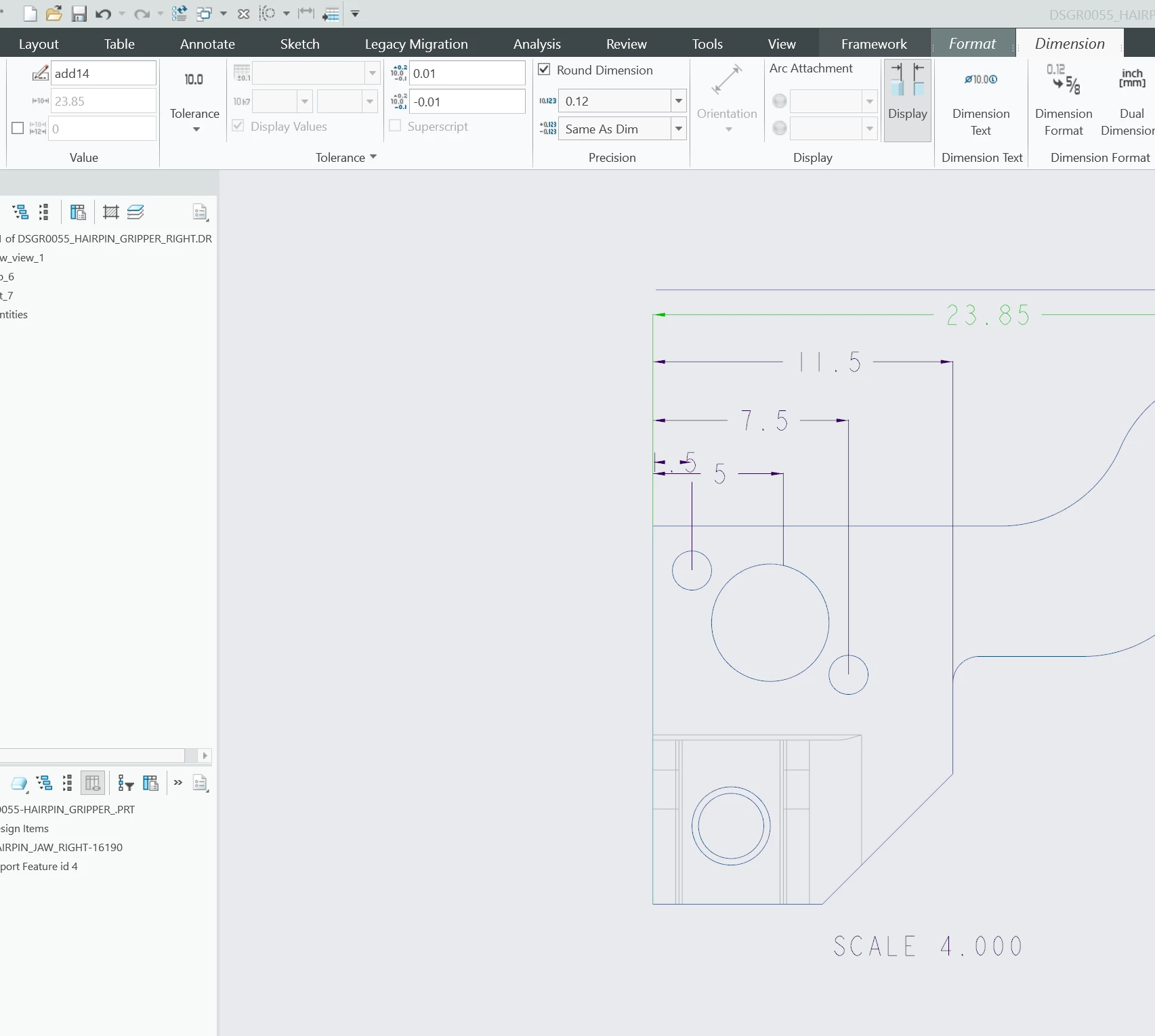

The orientation is not active. How can I do active the button?

Translate

24-Ruby III

Hi,

please publish a picture showing requested state. You can use Windows Paint application to create such picture.
