Question

The simplified representation of the engineering drawing does not work

  • October 27, 2024
  • 2 replies
  • 2653 views

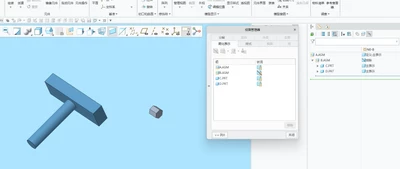

Hello everyone, I created a component in 3D, and then created any simplified representation, such as NO-A, N0-B, and then saved it. Then I created a new engineering drawing and selected a simplified representation such as NO-B, but the repeated area still shows component B. How can I solve this problem? Thank you







--------------------------------------------------------------

Translated the topic from Simplified Chinese to English using Google translate

Subject - 工程图简化表示不起作用

Body - 大家好，我在3D建立一个组件，然后建立任意一个简化表示，如NO-A，N0-B，然后保存，接着新建工程图,选择一个简化表示如NO-B，但是重复区域还是会显示元件B,请问这个问题如何解决，谢谢

-By Community Moderation Team

--------------------------------------------------------------

2 replies

M
MartinHanak24-Ruby III
24-Ruby III
October 28, 2024

Hi,

please replay uploaded video. HIH.

    B
    bduncan17-PeridotAuthor
    17-Peridot
    October 30, 2024

    (view in My Videos)
    谢谢你的视频，但是为什么我的操作还是不能达到你的效果？谢谢

    kdirth
    21-Topaz I
    kdirth21-Topaz I
    21-Topaz I
    October 28, 2024

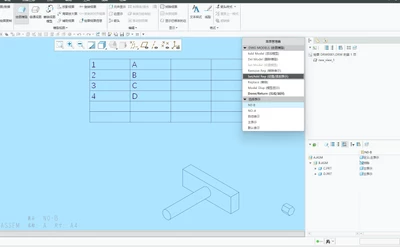

    The repeat region BOM will always show the model/representation of what was active at the time the BOM was made until you change the Model thru the repeat region menu.

    Table tab > Repeat Region > Model/Rep > Select repeat region (table) > Select model > Select representation > Confirm > Done

    There is always more to learn.
      M
      MartinHanak24-Ruby III
      24-Ruby III
      October 30, 2024

      Hi,

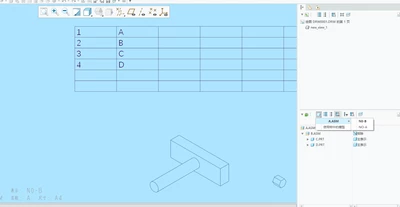

      uploaded video show how to remove B item from repeat region.

      Note: You do not have to define simplified representation in A.asm
