toggle_leader_type in detailed view

Good day for everyone!

In a drawing I make a detailed views and switch the leader type (toggle leader type - above) and arrow style (to None) each time.
Please tell me if there are options in the prodetail that are responsible for these functions?

Thank You!



CREO 5.0.4.0

kdirth
kdirthAnswer
21-Topaz I
Nov 16, 2023 7:10 PM UTC

default_view_note_orientation  above_extended_elbow makes the detail view note above. above the extension

I don't see a setting for no arrow

default_leader_arrow_style  no_arrow will make note leaders without arrows

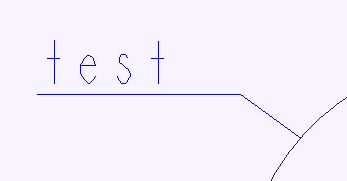

default_note_leader_type  std_iso will make notes above the leader extension



These all control creation and do not update existing.





There is always more to learn.
View in thread

9 replies

kdirth
kdirth21-Topaz I
21-Topaz I
Nov 15, 2023 2:22 PM UTC

DTL Options in leaders catagory:




Translate
There is always more to learn.
Hozaibergen12-AmethystAuthor
12-Amethyst
Nov 16, 2023 12:07 PM UTC

Have you tried doing this with detailed view by yourself?

Translate
kdirth
kdirth21-Topaz I
21-Topaz I
Nov 16, 2023 1:46 PM UTC

I just tried.

default_leader_arrow_style  no-arrow

default_note_leader_type  std_iso


This did not update existing notes.

Translate
There is always more to learn.
