Transfering A Sketch To A Drawing

Is it possible to transfer a sketch to a drawing? It isn't closed, so I can't make it a part and put it into a drawing that way.


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

2 replies

TomD.inPDX17-Peridot
17-Peridot
October 23, 2013

Yes you can. A sketch is a geometric element. Define a view in the right orientation, and it will show up when you define a view.

Translate
TimBrotherhood1-Visitor
1-Visitor
October 24, 2013

Antonius is correct. A good example is schools using sketches to define engraving paths when laser cutting.

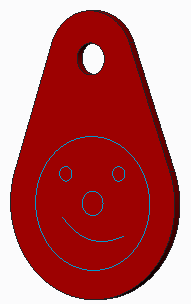

Model - An extrusion defines the profile for cutting the acrylic shape and a sketch located on the surface of the extrusion defines the engraving path.

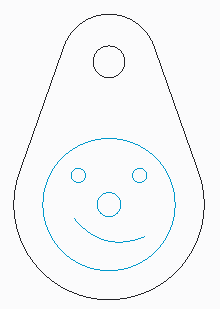

Drawiing - Create an empty drawing and add a general view looking flat onto the surface. Conveniently, oultines of solids display black and sketch lines blue. This is used in the laser to determine cut/engrave power/speed.

DXF export - From the drawing Save As > Save a copy > choose DXF file format. In the export dialog, choose version 13 and check Polylines.

Luggage_tag_3D_model.png Luggage_tag_drawing.png Luggage_tag_dxf.png
