Question

Unable to select shading from 2D drawing - display style

  • September 20, 2023
  • 5 replies
  • 2546 views

Hi

I am following the tutorial steps and I am trying to select the shading from display style for 2D. However, the system does not allow me to select it. Is t






5 replies

A
AH_1056539812-Amethyst
12-Amethyst
September 20, 2023

Can you select it in the model itself?

J
JW_107140961-VisitorAuthor
1-Visitor
September 20, 2023

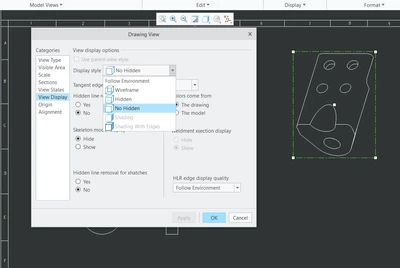

I am not sure. I can select it from the mini tool bar on the top of the drawing window

S
23-Emerald III
StephenW23-Emerald III
23-Emerald III
September 20, 2023

My guess the view has a cross section. You can't shade a view with a cross section added.

J
JW_107140961-VisitorAuthor
1-Visitor
September 20, 2023

no cross section

A
aputman13-Aquamarine
13-Aquamarine
September 20, 2023

Do you have the following config option enabled?

enable_shaded_view_in_drawings

    J
    JW_107140961-VisitorAuthor
    1-Visitor
    September 20, 2023

    yes. This is enabled

    J
    jvadalia-213-Aquamarine
    13-Aquamarine
    September 21, 2023

    Hi @JW_10714096

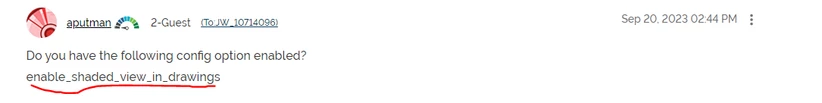

    I think below is the only option to enable disable shaded views in drawing.


    Please check again in your config file. Set above config to Yes.



    Regards,

    Jignesh.

    J
    JW_107140961-VisitorAuthor
    1-Visitor
    September 20, 2023

    I selected different models. All of them had the same issue.

    M
    MartinHanak24-Ruby III
    24-Ruby III
    September 21, 2023
    @JW_10714096 wrote:

    Hi

    I am following the tutorial steps and I am trying to select the shading from display style for 2D. However, the system does not allow me to select it. Is t






    Hi,

    please do following test:

    • create new General View in drawing
    • click View Display option in left pane
    • set Display style to Shading

    Notes:

    • General View enables you to set Display style to Shading
    • some other view types does not enable you Display style to Shading ... what view type do you use?
