Unadapted notes for dowel pin holes

Hello everyone,

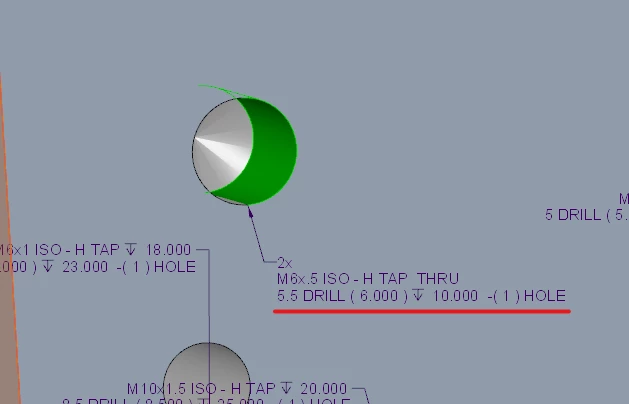

I have a problem with the hole notes that IFX creates for dowel pin. Notes mentioned a threaded hole as in attachment while it should be a smooth drilled hole with tolerance.



Could you please advise me on how to manage this issue ?



Thanks



2 replies

OliverGräbner
OliverGräbner17-Peridot
17-Peridot
May 20, 2020

Hi,

I think the information for the hole is shown correctly in general, but it is possible to customize the hole note.



For more details follow this link:

https://community.ptc.com/t5/Creo-Modeling-Questions/CALLOUT-FORMAT-in-hol-files/m-p/153980



Or directly look to the PDF from PTC.

https://community.ptc.com/t5/Creo-Modeling-Questions/CALLOUT-FORMAT-in-hol-files/m-p/153980/thread-id/38731?attachment-id=24574



Regards,
Oli

Translate
Oliver Gräbner - B&W Software GmbH
    maxpsx1-VisitorAuthor
    1-Visitor
    May 20, 2020

    Hi Oliver,



    Thanks a lot for your quick reply, I will look at it



    Thanks
