Unfamiliar blue lines in drawing

  • February 11, 2011
  • 1 reply
  • 5149 views

I'm in WF4 and I opened up one of our parts and there were blue lines all over the drawing. I've never seen them before and I can't figure out how to get rid of them. Any help would be appreciated. Thannks

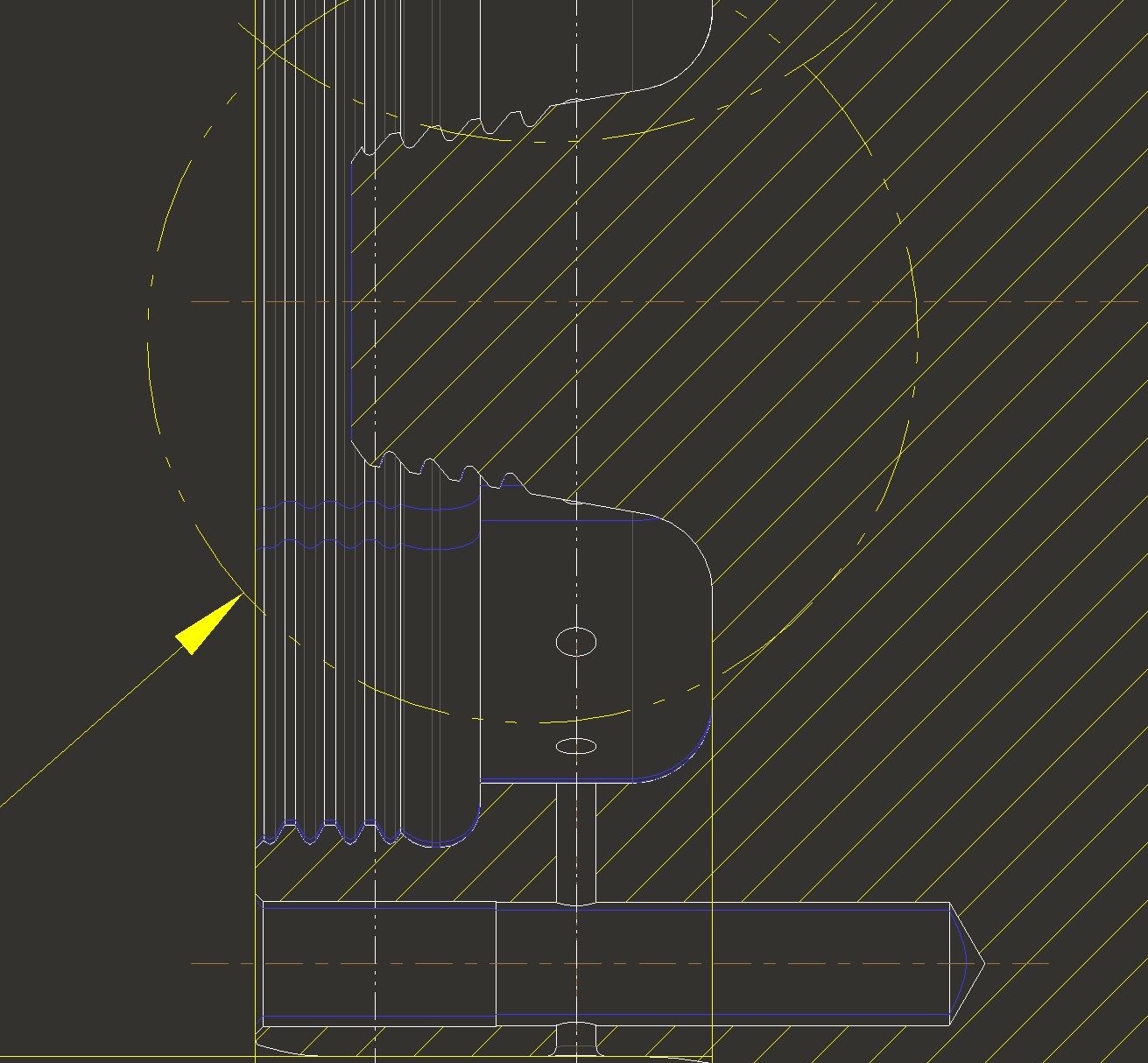

Refer to the drawing for what I'm talking about.bluelines.jpg


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

1 reply

S
s.iyer1-Visitor
1-Visitor
February 12, 2011

Unless there is a problem with the graphics card, it looks like a surface has been created and then the portion is trimmed using the surface. Surfaces and sketches in modeling environment appear blue in drawing. One can select them in the model history and hide them.

Atleast that is what it appears to be.
