UNRELATE HIDING COMPONENTS BETWEEN DRW AND 3D MODEL

  • February 15, 2023
  • 1 reply
  • 1024 views

Hi, I would to mantain the visibility of a component in all the drw views, during I am hiding the componet in 3D model.

How can I do this?



Best regards.



Michele Barile





Best answer by tbraxton

Simplified representations will enable this. Refer to the link below for some notes on how they work. You could also use layers to do this, but simplified reps would be the preferred solution.



https://support.ptc.com/help/creo/creo_pma/r9.0/usascii/index.html#page/assembly/asm/About_Simplified_Representations.html

1 reply

tbraxton
22-Sapphire II
tbraxton22-Sapphire IIAnswer
22-Sapphire II
February 15, 2023

Simplified representations will enable this. Refer to the link below for some notes on how they work. You could also use layers to do this, but simplified reps would be the preferred solution.



https://support.ptc.com/help/creo/creo_pma/r9.0/usascii/index.html#page/assembly/asm/About_Simplified_Representations.html

L
llie17-Peridot
17-Peridot
February 15, 2023

MB,

You can select layers to turn on and off models and other information per each view. Follow the images in order.

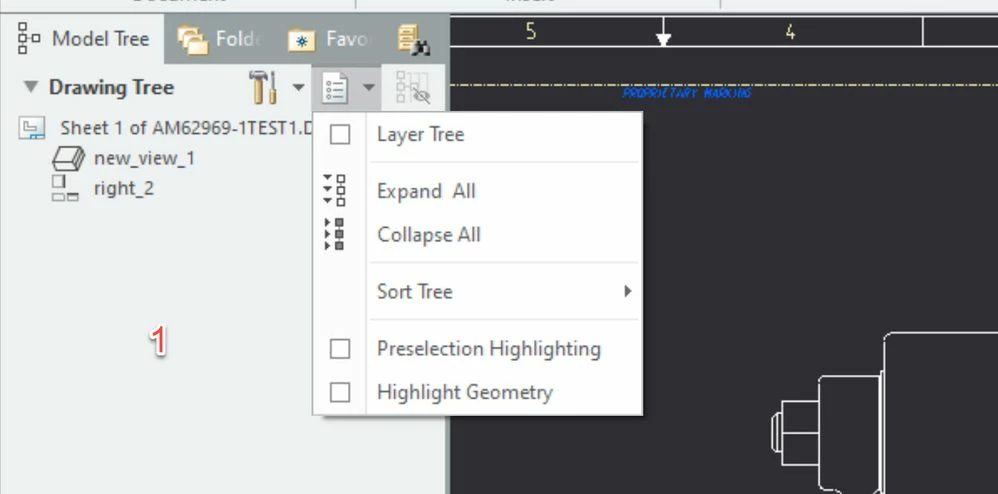

1. Pick layer tree

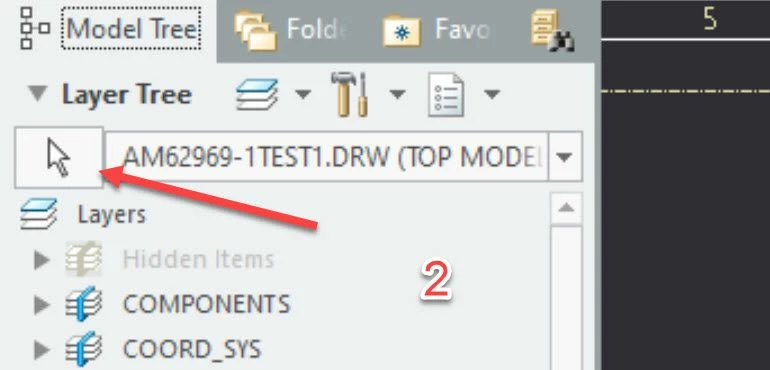

2. Use arrow to select the view

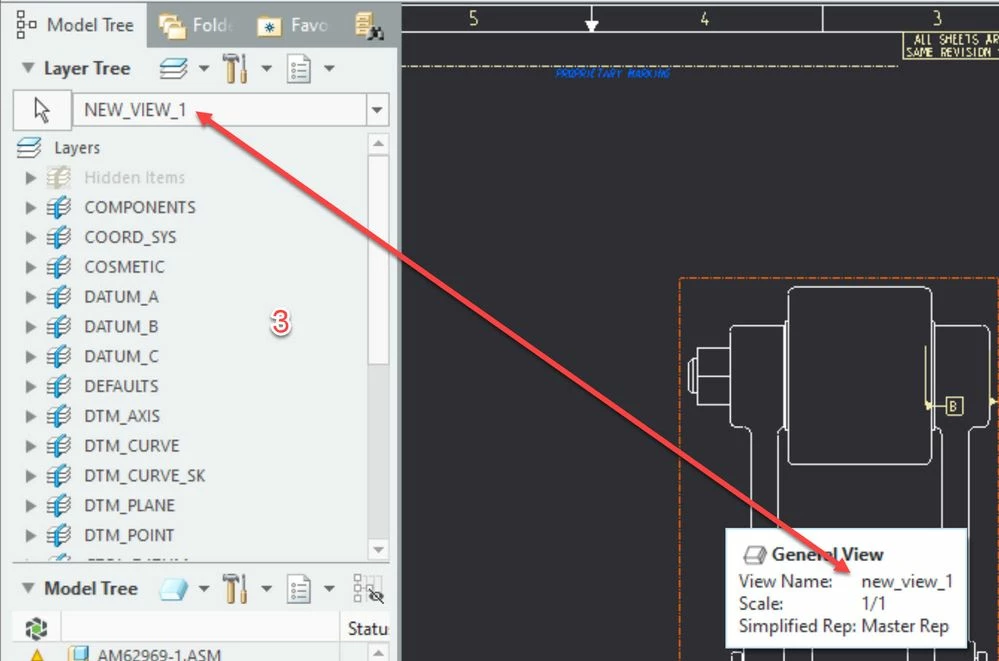

3. The view name is shown in the layer tree
