VARIABLE TEXT IN DRAWING TEMPLATE

I want to add some text to each template view. But I am not able to understand how to do it using variable text.

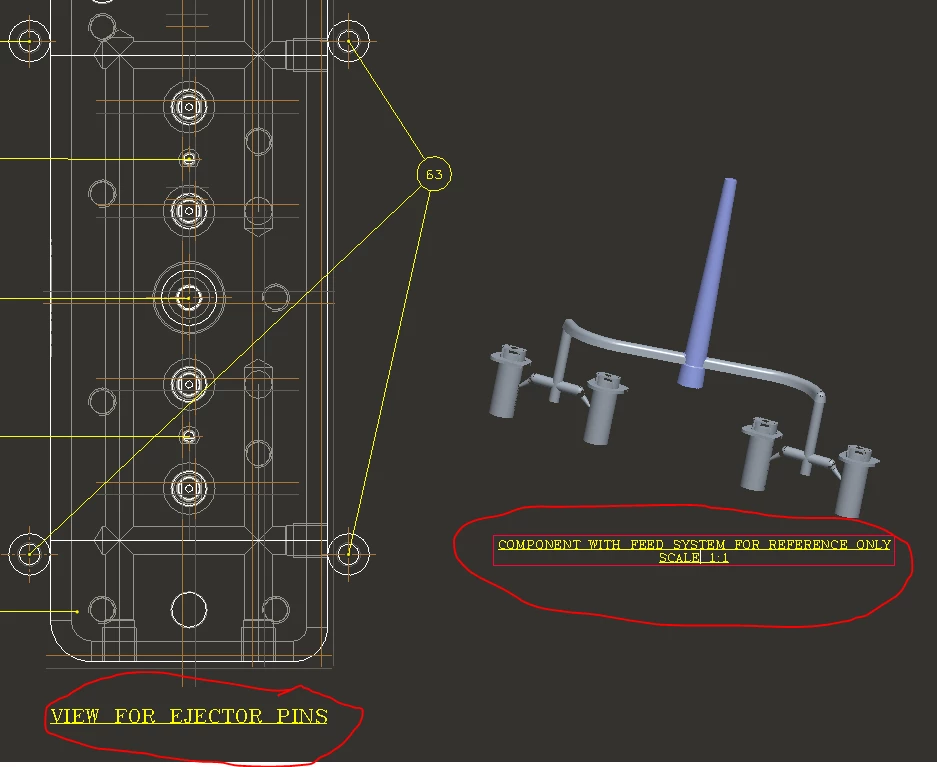

Image has been attached below.

3 replies

Mahesh_Sharma
22-Sapphire I
Apr 24, 2019 2:02 PM UTC

@sparulekar

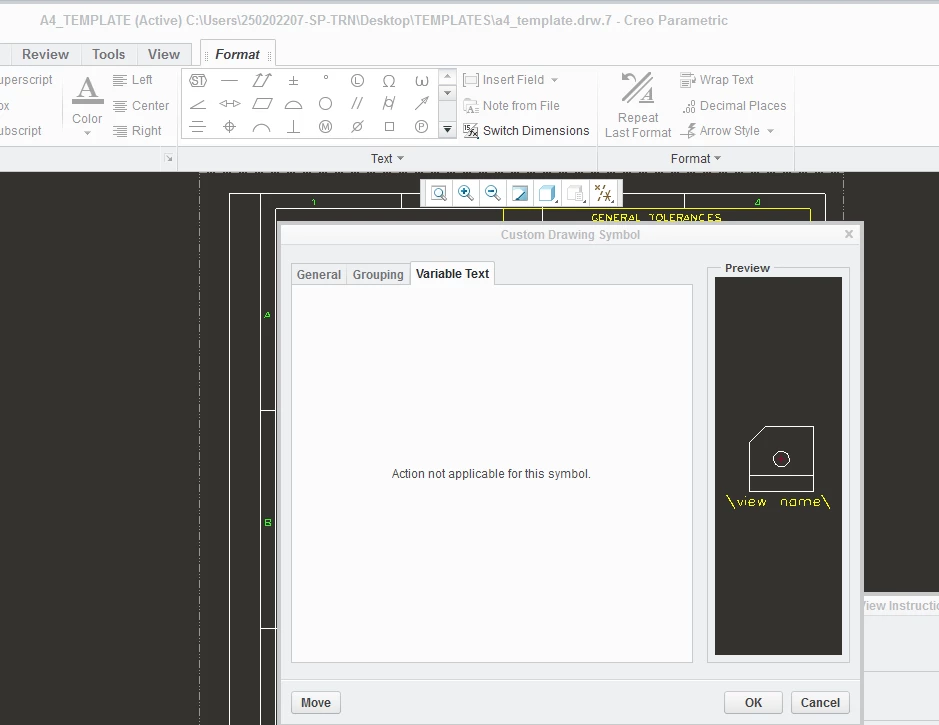

Variable text will appear on customizing the symbol. Check details in article https://www.ptc.com/en/support/article?n=CS66449

Translate
1-Visitor
Apr 25, 2019 10:14 AM UTC

Thank you for your response!

I want to add this type of text box in the drawing template such that they get automatically loaded in the drawing file.

Also the text can be edited in the drawing.

Translate
Mahesh_Sharma
22-Sapphire I
Apr 25, 2019 12:12 PM UTC

@sparulekar



Image is from template view... I don't think it will help you. If you have some pre-defined notes, you may use mapkeys...
