Vertex won't constrain to line

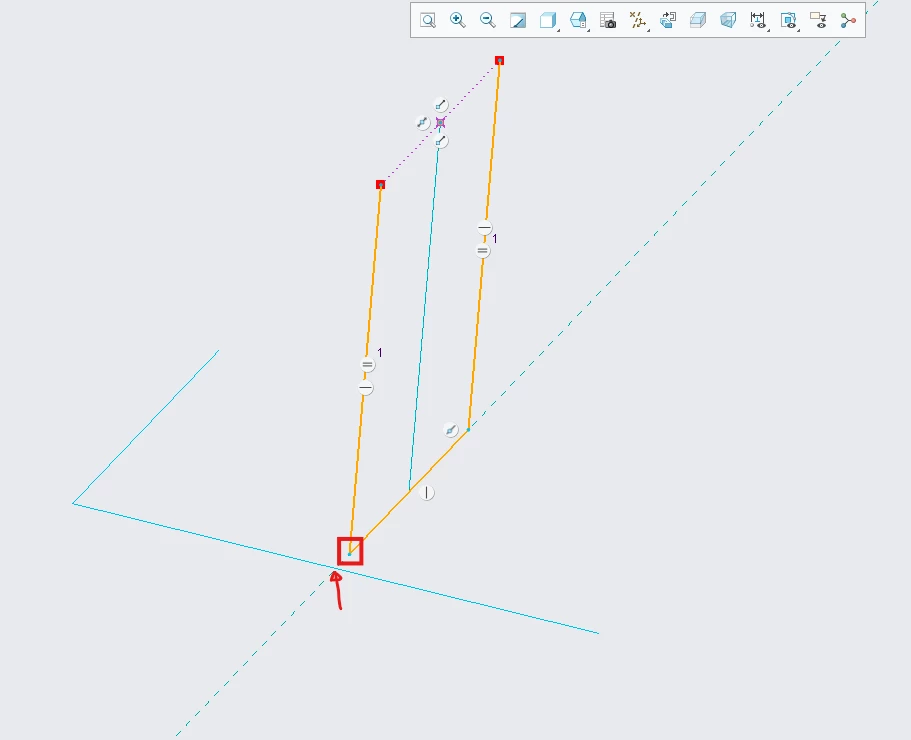

I want to connect this corner vertex to this sketch line.  The coincident constraint won't let me connect them.  They are in different sketches and on different planes if that matters.

kdirth
kdirthAnswer
21-Topaz I
Sep 18, 2024 6:17 PM UTC

The line appears perpendicular to the sketch.  In that case, you will need to use an end point of the line.

There is always more to learn.
View in thread

2 replies

tbraxton
tbraxton22-Sapphire II
22-Sapphire II
Sep 18, 2024 5:59 PM UTC

You likely need to manage your sketch references to include the items external to the active sketch.

Translate
kdirth
kdirth21-Topaz IAnswer
21-Topaz I
Sep 18, 2024 6:17 PM UTC

The line appears perpendicular to the sketch.  In that case, you will need to use an end point of the line.

Translate
There is always more to learn.
