Why Does Curve Direction Flip After Dropping It on a Surface in The Style Tool?

  • January 10, 2022
  • 1 reply
  • 3312 views

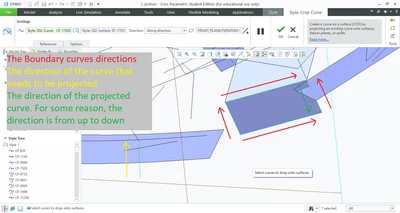

Hello. I model my own car in Style Tool and face a small problem. I don't understand why does curve direction flip after dropping it on a surface? Here is a picture to make it more clearly for you.

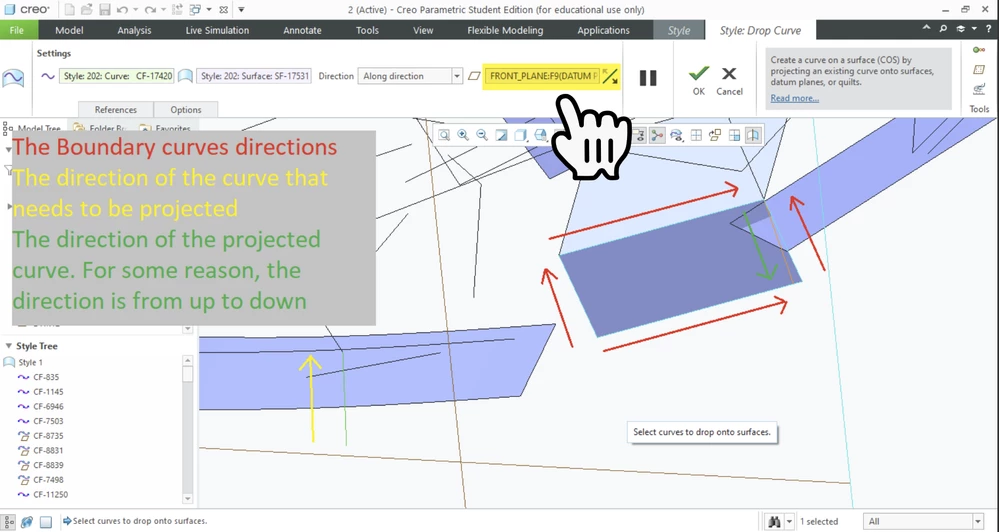

In this picture, there are directions (End 1, End 2) of all curves I need that are marked by arrows.


















So, my question is: How to make the direction of the projected curve (the arrow of yellow color) from up to down. Thank You in advance.

Best answer by sacquarone

Hello @Maskalex



Sorry for previous answer ... I missed the fact you were trying to "Flip Curve Direction" in the scope of a Drop Curve ...



Refer therefore the new movie attached here with explanations of 2 possible approaches to achieve this buisness need.



If not clear, don't hesitate to get back to me with a reply to this post.



Regards,



Serge

1 reply

tbraxton
22-Sapphire II
tbraxton22-Sapphire II
22-Sapphire II
January 11, 2022

Try changing the direction and/or the along direction reference which will alter the normal vector used for the projection calculations.






    M
    Maskalex10-MarbleAuthor
    10-Marble
    January 11, 2022

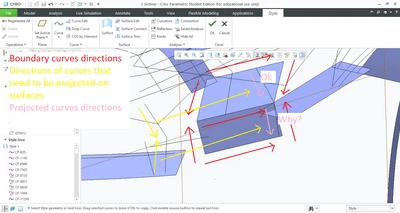

    I decided to show what curves directions I have now:

    New Curves.png

















    As you can see, the projected curve on the bottom surface goes from top to bottom, and I want it to be from bottom to top. How can I get it? Is it possible to make it?







    S
    sacquarone21-Topaz I
    21-Topaz I
    January 12, 2022

    Hello @Maskalex



    This capability is enabled in Edit Curve environment. Approach is illustrated in little movie attached, and documented in the To Create a New Curve section of Creo Parametric Center as follows:

    If required, to reverse the curve direction, right-click the curve and choose Flip Curve Direction.



    Hope this helps,



    If not, please tell us which kind of curve it is (free curve? curve on surface? ...) and which version of Creo Parametric you're currently working with (movie recorded here in version 7.0).



    Regards,



    Serge
