Wrong references auto-selected when using Ref-pattern

  • February 20, 2015
  • 3 replies
  • 2521 views


When using Ref-pattern you can sometimes experience that Creo is using wrong reference for the pattern.



Today there is no way of controlling which references is used for the Ref-pattern. This is needed.

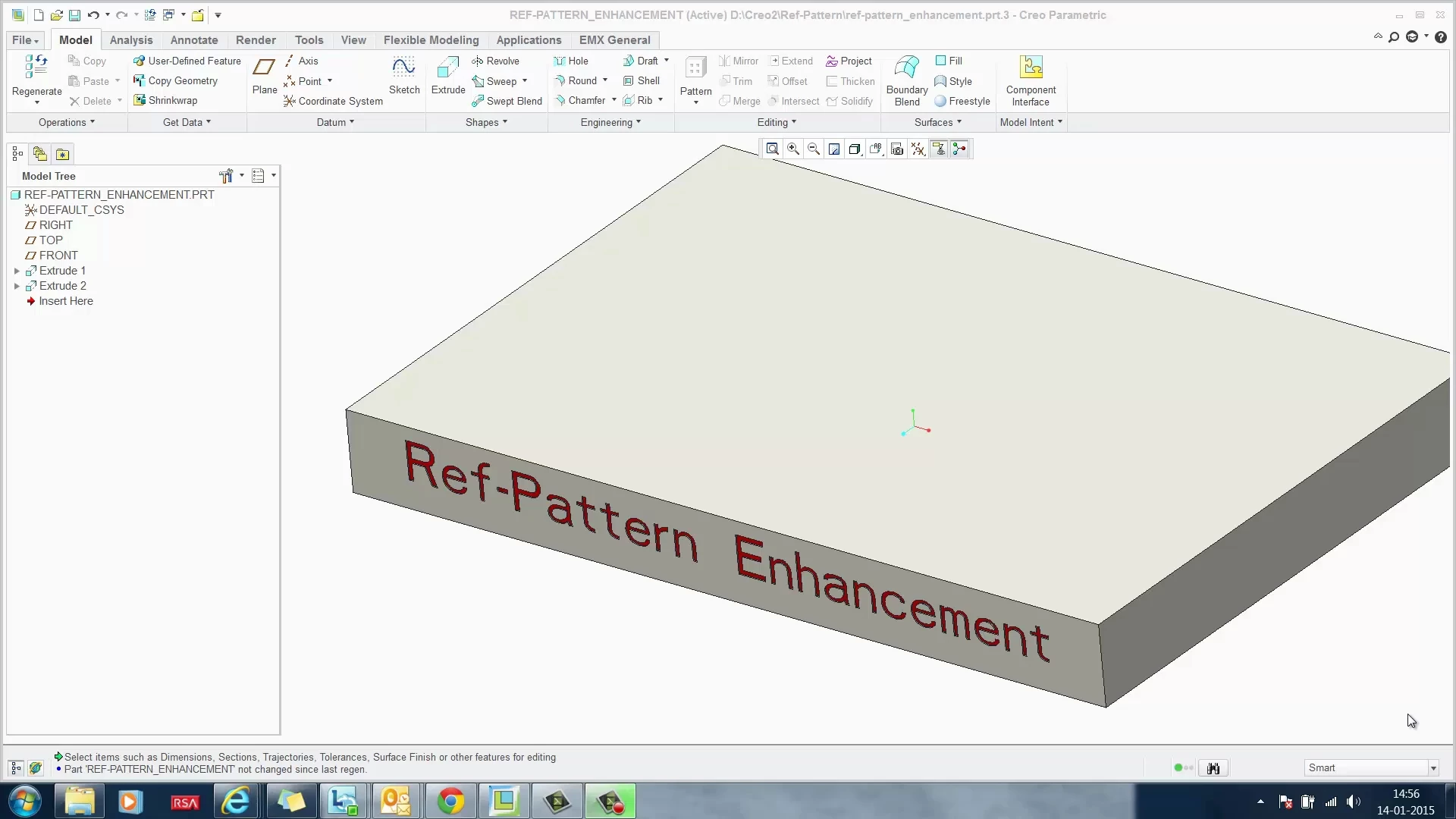

In the example video, Creo is not using the right reference for the Ref-pattern and the outcome is wrong. unfortunately it is not each time that Creo makes a wrong or right guess, so user control is needed.



The work-around supplied from the support team will not work as intended in the future, especially not if we will take advantage of the freedom in Creo 3.0. It will work in Creo 2.0, but you are never sure of when you should use this work-around and when not. The work-around is also quite illogical and is in conflict with Creo's normal way of working.



The Ref-pattern is in need of an enhancement. We need to have the possibility to select which reference to use in the Ref-pattern and not let Creo take a guess.  Letting Creo guess includes too much Mr. Murphy
