Calculating ASM projected area...

  • June 2, 2017
  • 4 replies
  • 8339 views

Does anyone know of an EASY way to get the projected area of an ASM in a particular direction normal to a plane?

Image result for wind loading of structures



I want to use this to find the maximum "windward frontal area" to use in performing Wind Loading calculations on a substation structure.



Thanks in advance of anyone's assistance! I appreciate the BoK(Bevy of Knowledge) of this community.

4 replies

D
dschenken1-Visitor
1-Visitor
June 2, 2017

I replied before about creating a shrink wrap part representation. Does that not work?

R
Ron(RonaldD.)Wh1-VisitorAuthor
1-Visitor
June 2, 2017

I tried that but to no avail… No “shrink wrapped part” did not work, but maybe I did something wrong! Got an example procedure you can share?


Any other ideas?… I would think I would be able to cast a “shadow” sketched outline of an ASM onto a datum plane of choice.

D
dschenken1-Visitor
1-Visitor
June 2, 2017

You don't give enough information. Were you unable to create a shrinkwrap part? Are you not licensed to create one? What function did you try to generate the silhouette curve from the calculate the area from the shrinkwrap?

I don't really recall anyway to cast a silhouette in the base Creo modules, but you previously stated that it worked for parts and a shrinkwrap is a part. AFAIK silhouette curves are generated in the Mold module.

Here's shrinkwrap information per Creo 4; the same is basically true for earlier releases. Creo Parametric Help Center About Shrinkwrap Models

Anyway - are you looking to get the area of just some components of the assembly and not the entire assembly? You can create a simplified rep that has just those components and calculate the area of them alone. See Creo Parametric Help Center To Create a Simplified Representation from Selected Components

(Thanks to Jive! for promoting the links to their titles and to PTC Help! for not setting the titles to match the topics. Good job all around.)

M
MikeBrattoli12-Amethyst
12-Amethyst
June 2, 2017

Ron,

Am I correct to assume you used the Analysis, Measure, Area, Projected Area option?  I'm getting a value by using that option:

1) Open up the Analysis, Measure: Area dialog box

2) For your reference go to the top of the model tree and select the ASM file (or if it's a sub-assembly in a larger assembly pick that file)

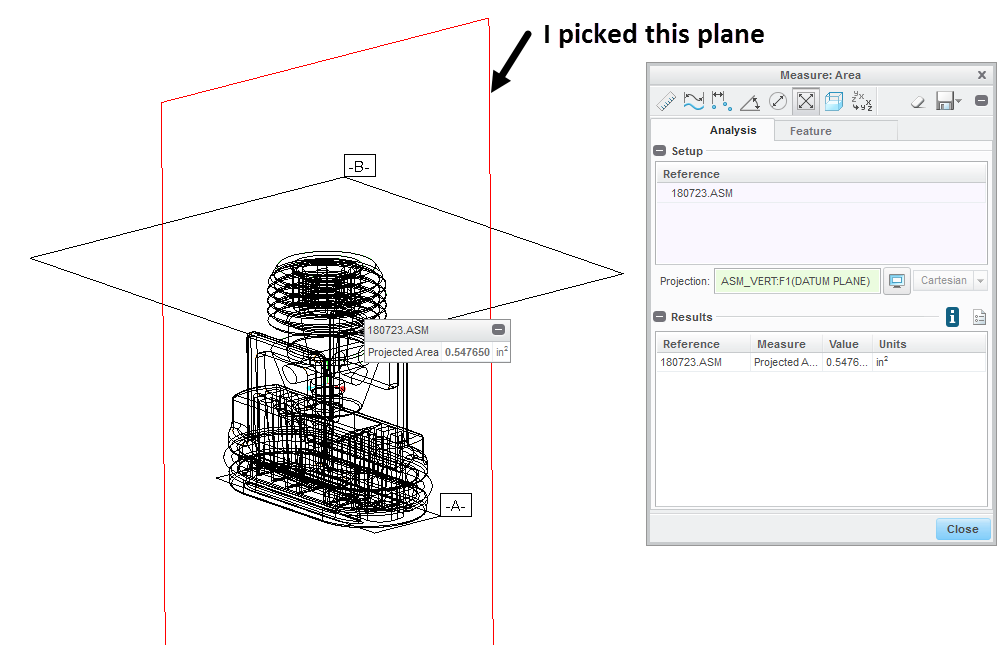

3) an Error will appear until you select a plane for the Projection direction.  Once I did that the Projected Area measurement value showed up in the Results area

Be careful not to pick the icon next to your Projection direction selection - that changes your selection to the View Plane (can be deselected to return to your specified plane).  Here's a picture of how it looked for me

R
Ron(RonaldD.)Wh1-VisitorAuthor
1-Visitor
June 2, 2017

Mike, I am using CREO v2 M110 and tried your EXACT suggestion above before I created this discussion thread. However, it did not work as I expected it to! I thought that method would be the most logical one to follow, but after continuing to get the ERROR ICON in the value field I gave up. I guess I'll try this method again, following your exact procedure above, or will have to wait until CREO v3 gets installed on my PC later this year.

Thanks for the prompt response(s)!

DomenicLaritz
DomenicLaritz16-Pearl
16-Pearl
July 7, 2020

Hello @Ron(RonaldD.)Wh,
were you able to identify a solution that always works?

M
MikeBrattoli12-Amethyst
12-Amethyst
June 2, 2017

Left out that I'm using Creo 3.0, M100

M
MikeBrattoli12-Amethyst
12-Amethyst
June 2, 2017

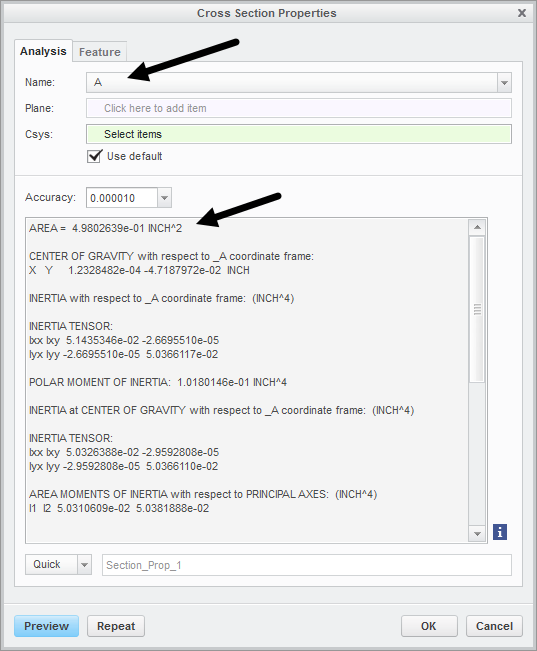

Another possibility - create a x-section using the plane you want to be normal to.  Then go to Analysis, Mass Properties, X-Section Mass Properties.  In the dialog box pick the name of your X-section and the results will include the Area of that X-Section (see below)
