Can we have rope and pulley mechanism simulation in Creo 2 ?

Forum|Forum|10 years ago
April 19, 2016
3 replies
4835 views

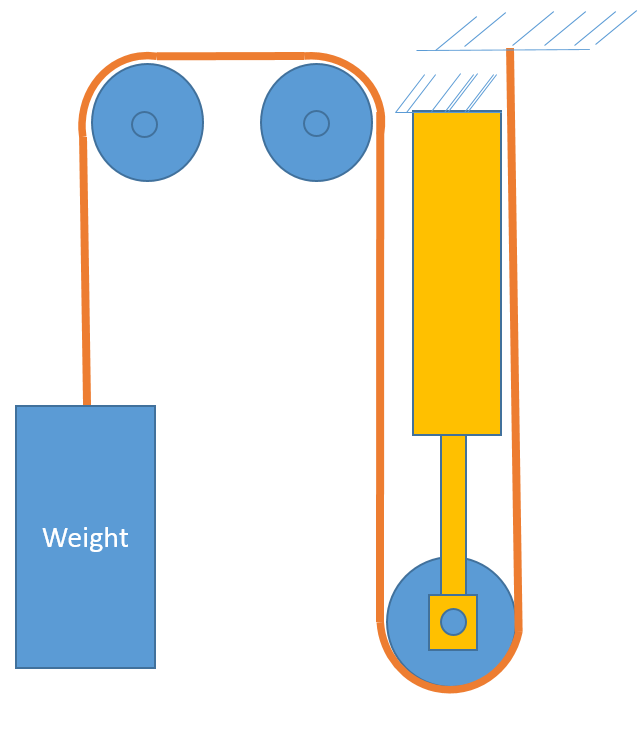

I am a new member to this community. Can anyone please help me?. I wanted to study the travel of steel rope around the pulleys and the distance travelled by the weight with respect to the cylinder stroke. Is there any way to do this in Creo 2 mechanism ? I have attached a picture.

Mechanism Design

25-Diamond I

Looks like you are not aware that you posted in the Mathcad section of this forum, right?

better put your question in the Creo section!

Author

1-Visitor

Thanks Wernwe Exinger, I don't know how to change this question to Creo section. Any help please.

19-Tanzanite

Toby Metcalf‌ could you please move this discussion.

5-Regular Member

5-Regular Member

I will move this to Creo.

Best,

Toby

14-Alexandrite

Check out this tutorial on the learning exchange: Tutorial: Belt Features in Creo Elements/Pro Mechanism Dynamics
