color of mesh

  • July 2, 2019
  • 1 reply
  • 2123 views

Hi

My name is enrique, I have some questions about Simulate

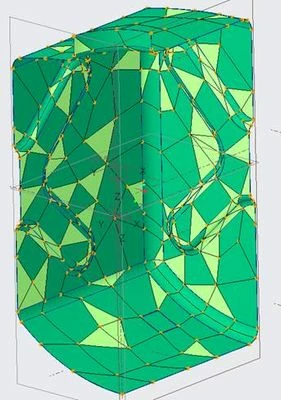

In the created mesh there are two green colors (light and dark) that represent each tone of color and with what criteria they are formed?


And other question:



"Relief of inertia"

Is it like a state of balance? I mean when there are no restrictions and you put it in sum of forces = 0?

Regards



Best answer by gfraulini

light green = element-tri
green = element-quad



Inertial relief
Simulate automatically applies body loads that balance your applied loads that affects the displacement solution but not the stress solution.



Bye

1 reply

G
gfraulini17-PeridotAnswer
17-Peridot
July 3, 2019

light green = element-tri
green = element-quad



Inertial relief
Simulate automatically applies body loads that balance your applied loads that affects the displacement solution but not the stress solution.



Bye

    E
    e_flores1-VisitorAuthor
    1-Visitor
    July 3, 2019

    thanks for the information helped me in my work!!

    Regards
