create lettering directorly in Sheetmetal model

Could PTC develop a function which allow to create lettering directorly in Sheetmetal model?


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
KevinAnswer
1-Visitor
June 27, 2016

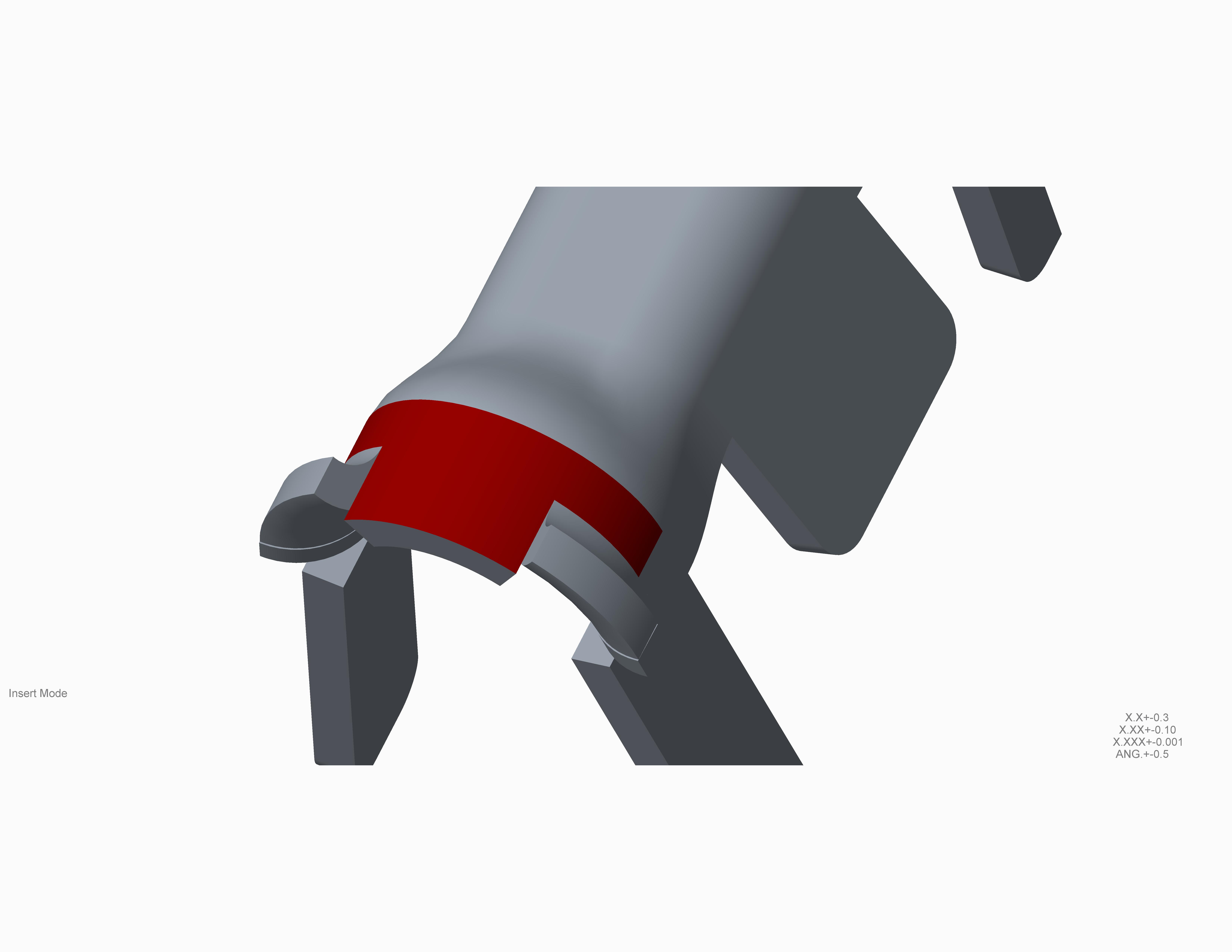

Making assuptions, did you try unselecting the Remove material normal to surface option? Text that doesn't go thru the sheetmetal feature will have a problem bending if that is selected (first icon in following pic).


View in thread

6 replies

dschenken2-Explorer
2-Explorer
June 24, 2016

They could, but until then what sort of lettering are you interested in making?

Translate
bou1-VisitorAuthor
1-Visitor
June 27, 2016


Translate
TomD.inPDX17-Peridot
17-Peridot
June 27, 2016

Are you just trying to emboss a part number or something like that?

You could use graphics for this if you wanted.  You can make something called a decal.  And you can wrap curves onto the surface.

Just remember that sheetmetal prefers everything remain a single thickness.
