Creo Simulate - Stress Output - consistency in units

I do see the same behaviour as reported by the OP, now that I come to look.

It happens that I've recently taken a bunch of results screenshots: most of them are in 'plain' numbers, but just one (where I've done two windows showing Y- and Z-displacement components, it's the Z) is in 'scientific' notation (not 'engineering' - that would be multiples of three for the "E+").

I certainly didn't consciously change anything - in fact the window with the scientific notation is probably a copy of the other one.

I'm using Creo 2.0 Commercial, btw.

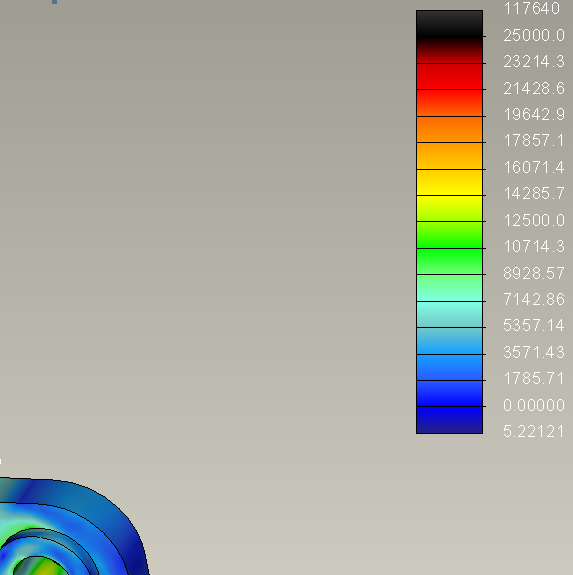

Hmm, I don't see the same on stress. I'm in PSI.

Hi all and thanks for the replies.

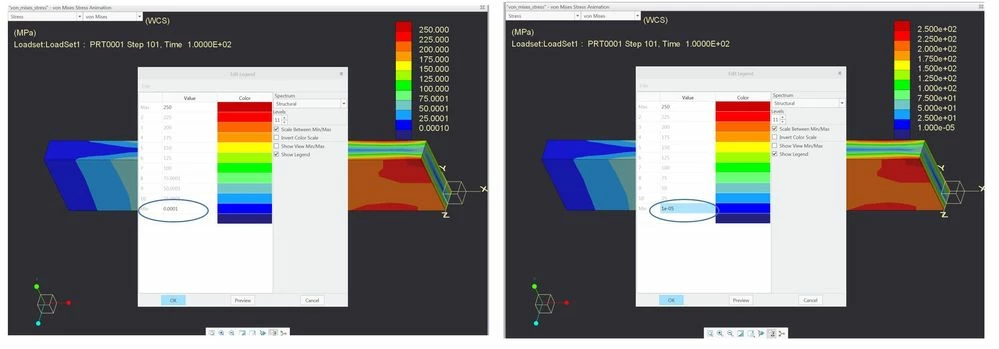

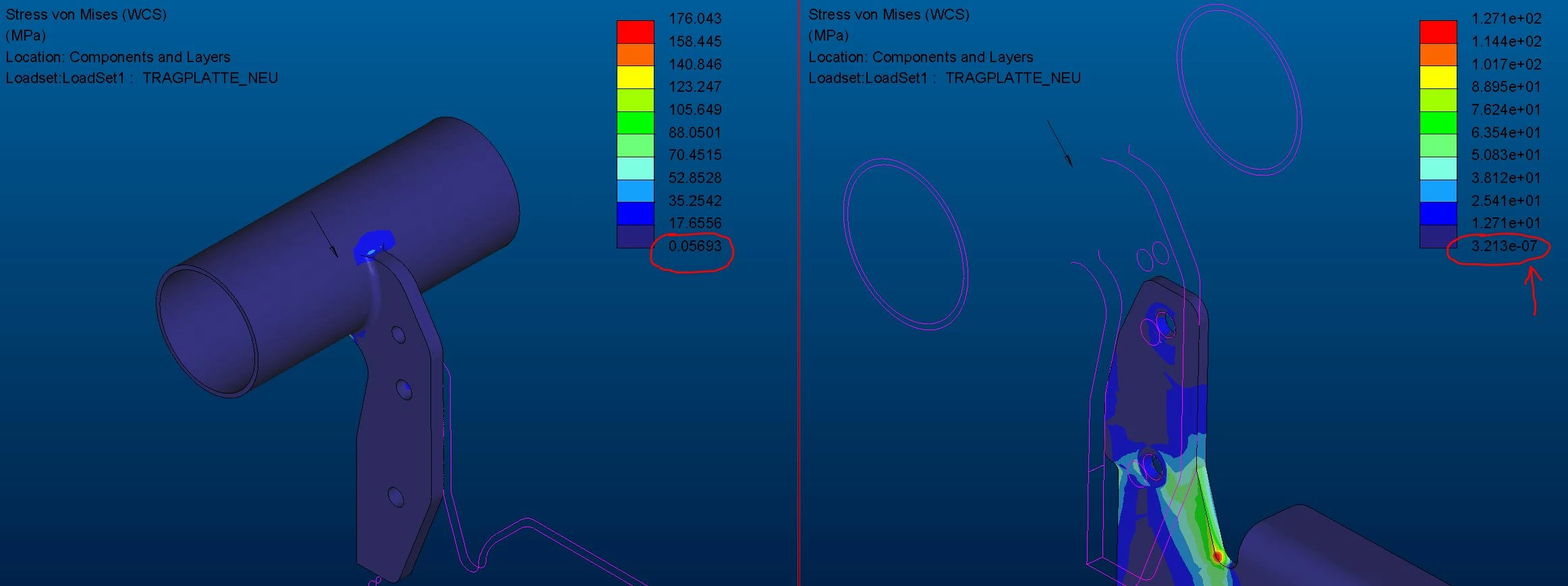

For certain models the screen output is '150MPa'  and consistent with the legend edit box.

A 'consistent' output for another model is here:

My issue is when I am trying to publish work which directly compare stresses between models.

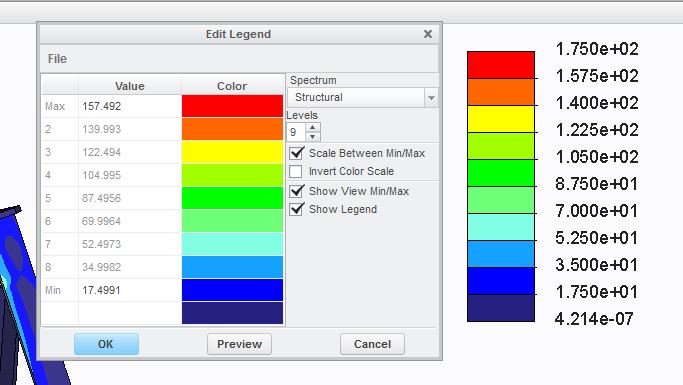

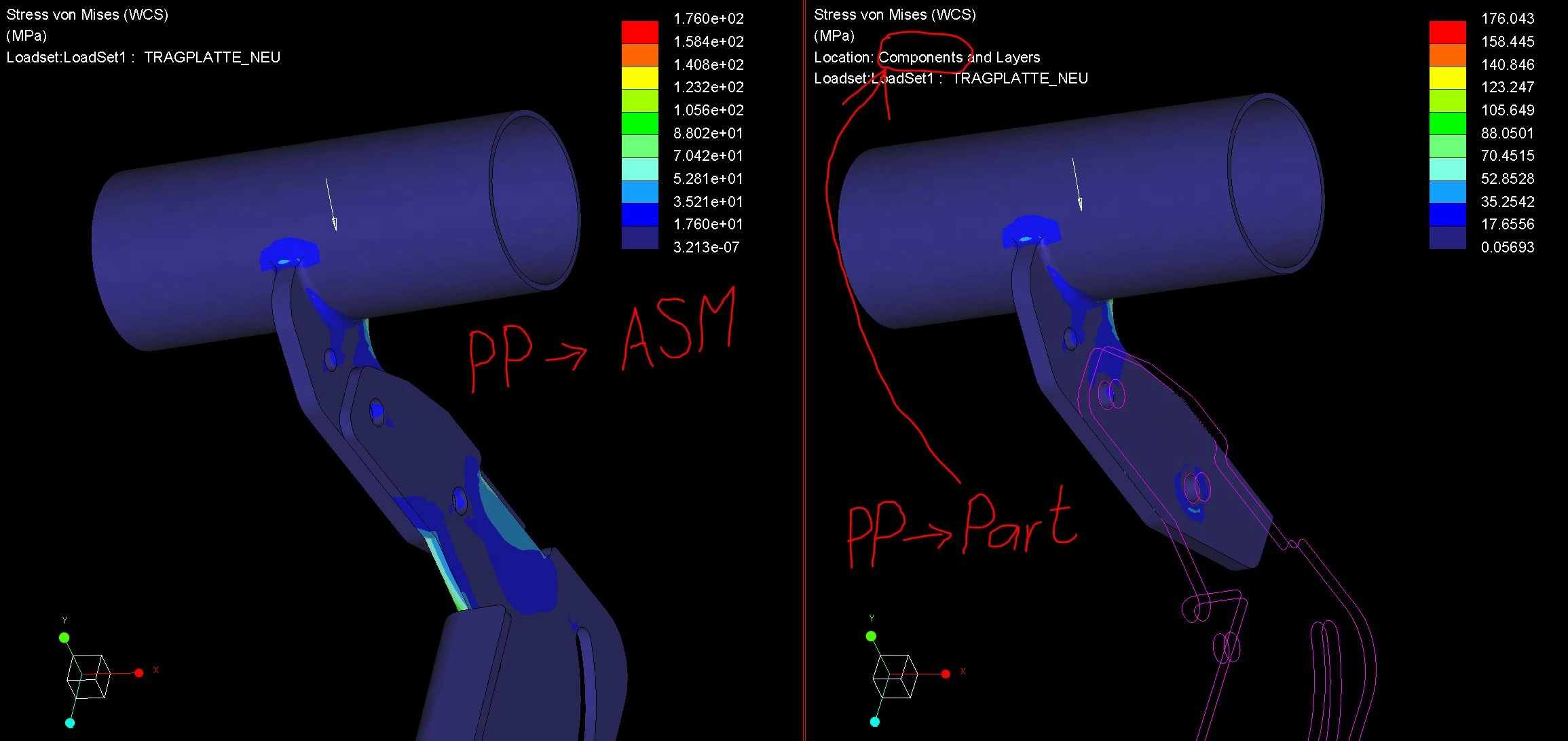

e.g. One stress from a Model is given as 200 MPa and the other Model uses the 2.00E+02 MPa engineering format.

My issue is whether there is a way of changing the ENG (+00) Stress Output to a standard format.

Neither are incorrect, and this is basically semantics, but it is frustrating I cannot make the results screen units into MPa per se, not adopting the e+02 unit format for certain screen displays.

Regards

Another case shown here:

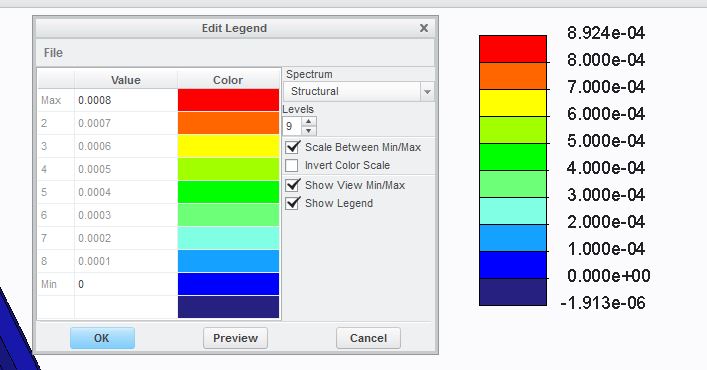

This is a Strain Output for same model which presents 'matched stress nomenclature' I showed before.

Again, the screen uses ENG, and the Legend presents as a decimal.

Another model, showing equivalent strain shows in a dp format.

Maybe not a great example as Strain is dimensionless, but a comparson between results can lead to confusion as dp needs to be converted to a strain -0X.

Also, sometimes I may like to present in microstrain (-06) but I cannot find a way to convert the results output.

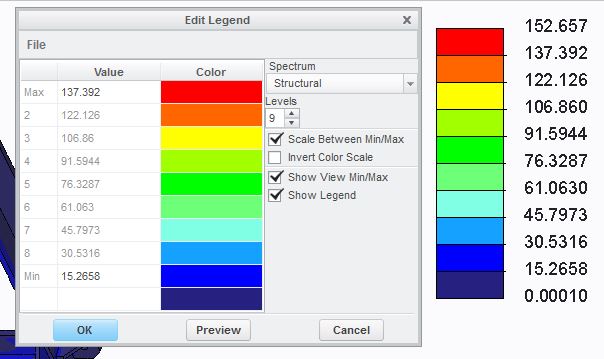

Same Model as showed stress in MPa (consistently) :  Max 152.657MPa

The Strain was inconsistent.

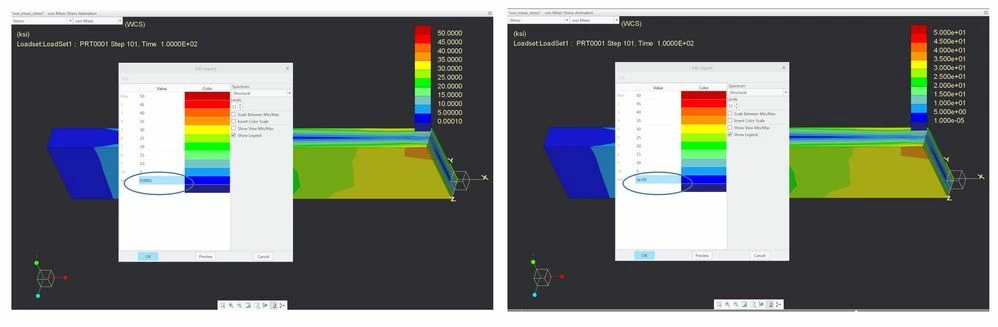

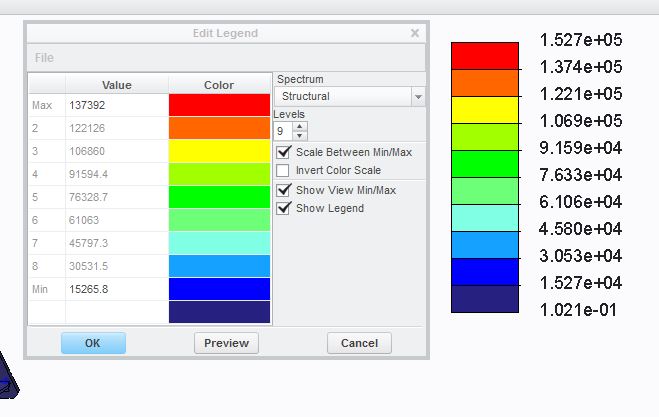

Still in the same results dialog box (still using VonMises failure); I change the 'display output' unit to kPa and I get this difference.

The screen now presents as ENG format (+05), and the Legend box gives in Pa.

Hi,

I am also facing the same concern. Sometimes if we open saved result it shows without exponentially and sometimes real number. I think there might be some setting related to legend. May be someone from simulation can answer this.

Thanks,

Jitu

Steven,

Yes I do (just converted a Model into imperial).

I also encounter the issue when reviewing results and using the 'Display Maximum Stress' result.

Often the 'scale' is in MPa, wheras the 'Max value' on the model is given in ENG e.g. +02 Units.

Seems to be sporadic, not for every model, but would be nice if I could find a way to harmonise the units for the purpose  of reporting on a consistency basis .

Thanks

Did anyone found out the solution for the problem?

I was wondering the solution too
