Creo Simulate Transient Thermal Analysis

Hello,

i have an aluminium cylinder De60 Di54 L148 [mm]

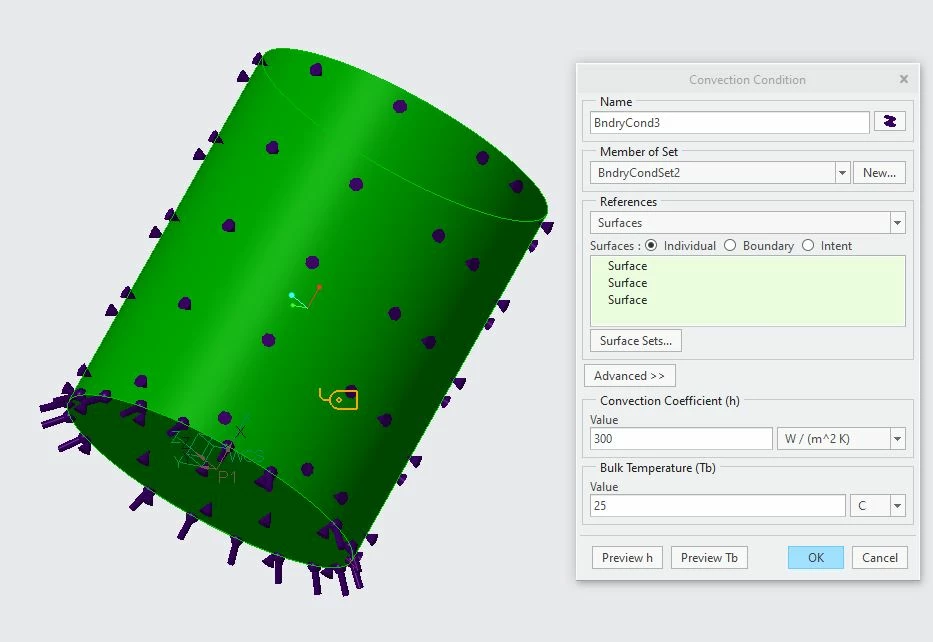

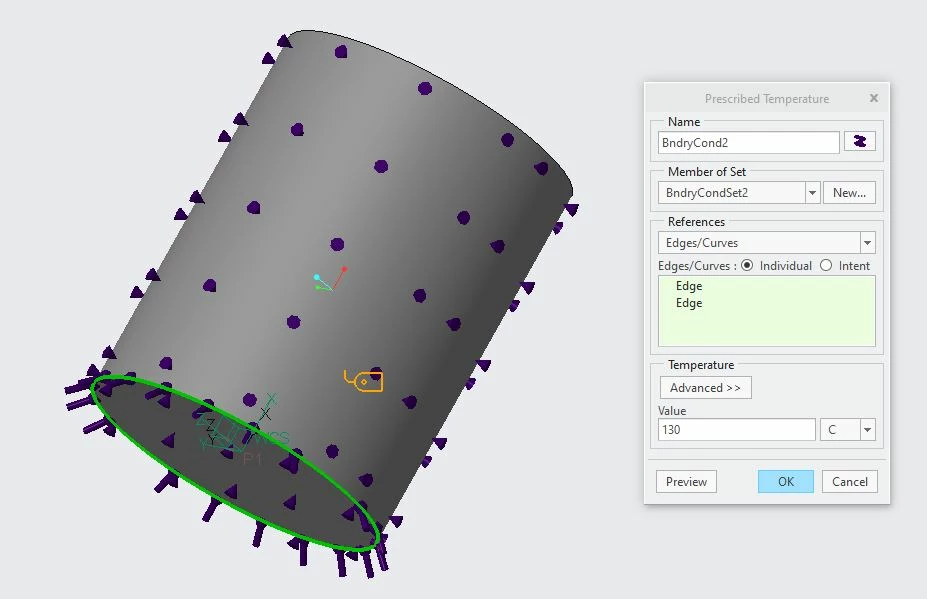

with the attached condition (Condition 1 e 2 . jpg)

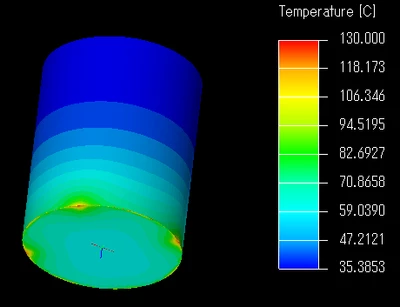

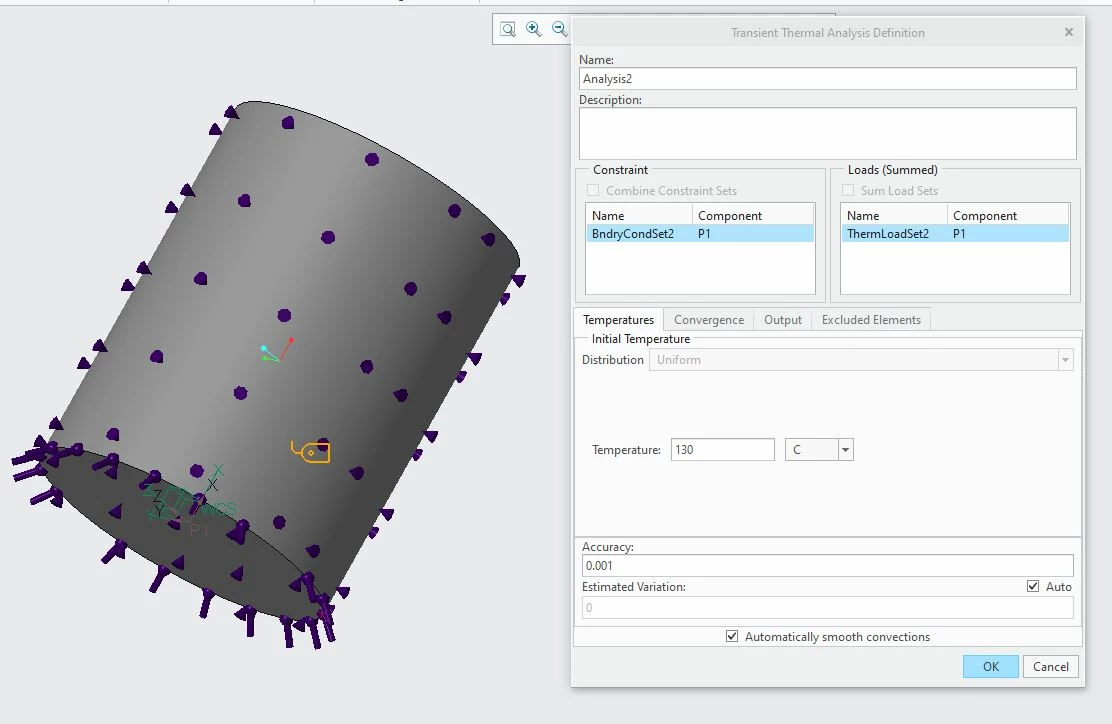

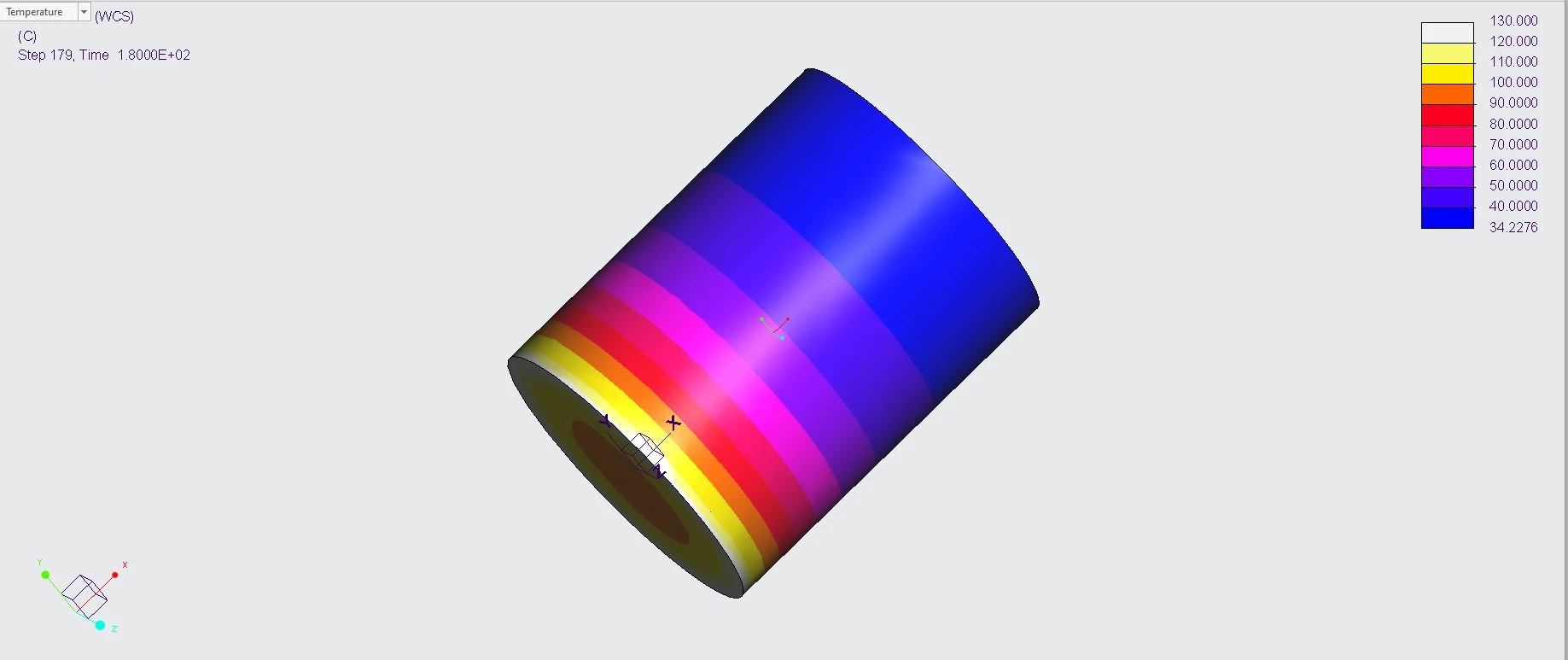

As a result of the thermal analysis (Thermal_analysis.jpg) i have what show in "Result.jpg" about thermal analysis

I'm not sure that is correct

Can you give me your opinion about it?

Thank you

17-Peridot

Your model proportions do not look correct to Diameter 60mm X Length 148mm with t=3mm.

Translate

Author

14-Alexandrite

Sorry Radius external 60 Radius internal 54 Length 148 mm

Translate

4-Participant

I've done similar analysis with another solver and got similar result.
