Creo4.0 convergence plots

Forum|Forum|8 years ago
June 13, 2017
3 replies
4146 views

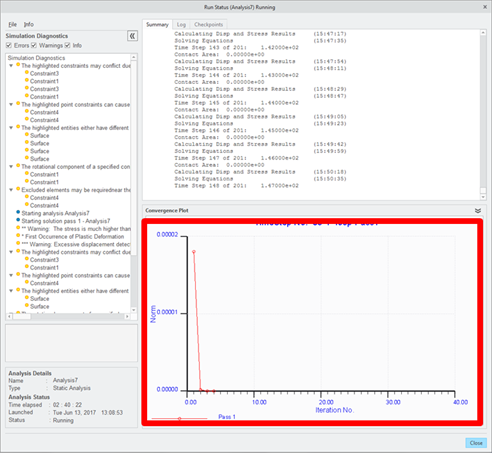

Does anyone know how to control what is displayed in the graph?

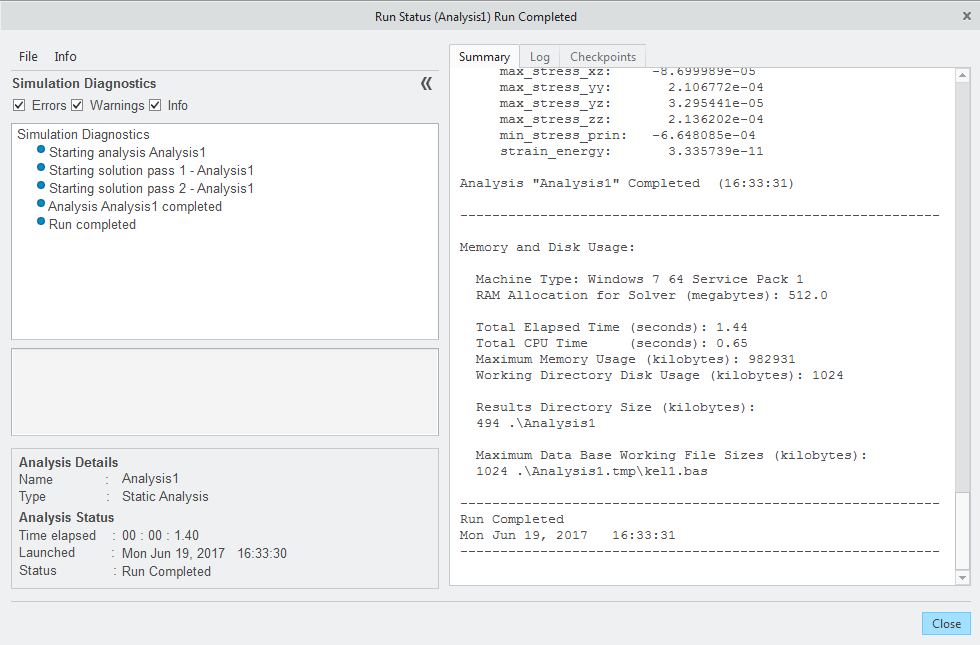

I opened the run status again and the graph displayed Deflection vs load

I couldn't get back to the norm vs iteration

I couldn't see a right click or anything in the menus,

I re-opened the run status a 'random' number of times and it went back to deflection.

I must have missed something.

Thanks

General

3

346gnu

Author

13-Aquamarine

Then I managed to get my axes to go green somehow and no graph.

R

rrabe

12-Amethyst

Hello

I´m just testing Creo 4.0 M70 in Windows 10 and I had the same question:

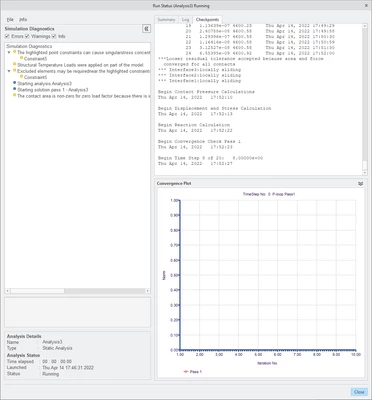

_ Have you found a way to control the plot that appears in the Run Status?

Also, I understand what you mean with the "green axes". I also got this strange behavior!

However, I found something even worst.
If you get it when running simulation, you will also have problem if later you want to display your result as a "graph".
The graph is empty and Creo does not actualize the graph scale whatever the measure you choose. It keeps showing only “time” scale in both axes.

Its looks like a bug. I´ll try to pay attention how to cause it and contact PTC.

It may be related in switching CAD models during simulation or similar event that make you leave the simulation – not so easy to reproduce.

In case that your Graph is empty, re-starting Creo (not only the model) usually solves this problem.
