Question

Crushing of a wooden board

  • July 30, 2018
  • 1 reply
  • 1801 views

Good morning,
I would like to simulate with Creo 3.0 the crushing of a wooden board with a steel plate as well as its deformation.

Order of magnitude: cylinder a force of 4 Tons, diameter of the support head 26 mm, everything is centered, board, plate and cylinder.
 Metal plate Steel, square side a = 100 mm and 3.0 mm thick.
 Square wooden side board b = 220 mm and 15 mm thick.

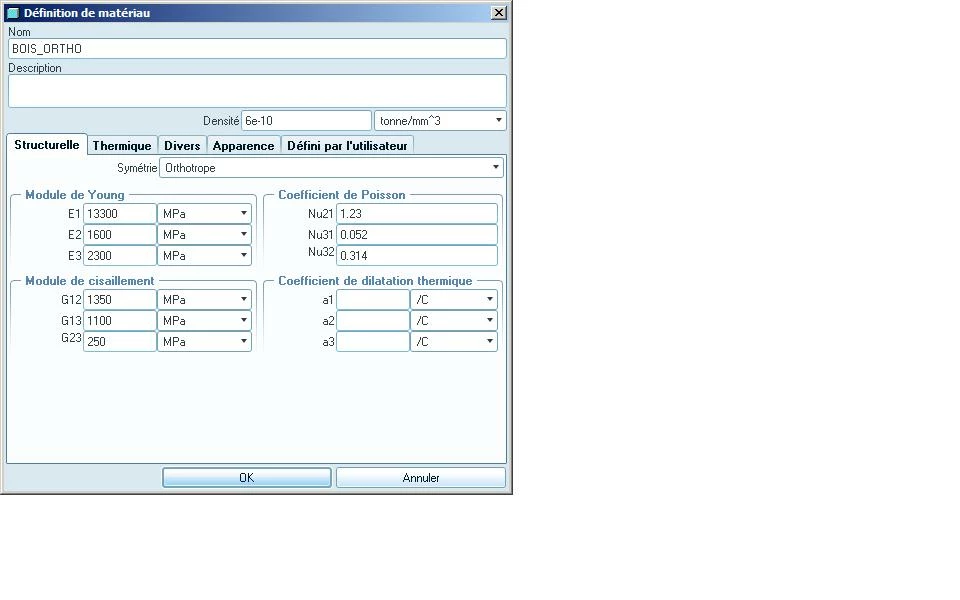

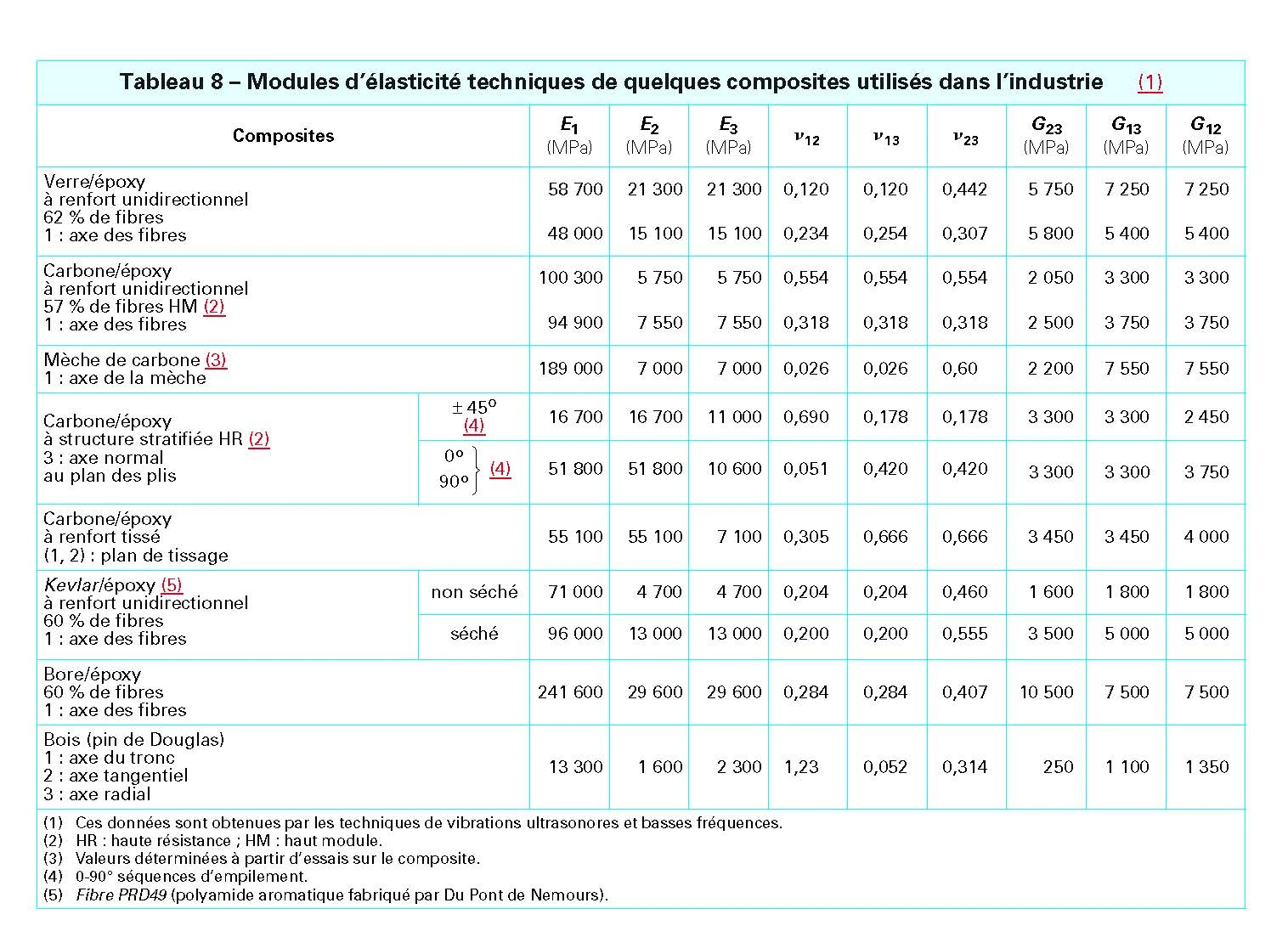

For wood characteristics see the attached magician.

With my thanks.
Denis.







1 reply

15-Moonstone
December 12, 2018

Hello,
Has anyone ever had this kind of problem, the crushing of a wooden board.
Sincerely.
Denis
